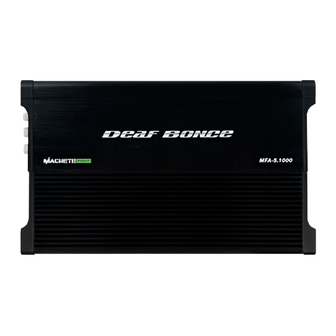

FIVE-CHANNEL AMPLIFIER ПЯТИКАНАЛЬНЫЙ УСИЛИТЕЛЬ CLASS D MFA-5.1000 HTTPS://ALPHARD.AUDIO...
Page 2
Warranty period, after-sales service and service life information...
Page 3
Thank you for purchasing of this Deaf Bonce product! Our company is committed to the creation of extremely loud sound systems with no loss of quality. To ensure proper use, please carefully read through this manual before using this product. It is especially important that you read and observe caution’s in this manual.
4. SELECTION OF THE DIAMETER OF POWER CABLES AND SPEAKER CABLES Selection of the diameter of the power cables Selection of the diameter of the speaker cables Use the table below to select the desired diameter based Use the table below to select the desired diameter based on the length and the current consumption.
Page 5
Standard wiring diagram of five-channel amplifier to head unit Step 1. Connect one end of the RCA cable to the RCA output terminals at the HU and the second end to the amplifier RCA inputs terminals marked with CH1/CH2, CH3/CH4 and SUBWOOFER. Application of connectors and controls 4 5 6 7 8 9 10 11 12 13 15 14...
6. CONNECTION METHODS The minimum permissible load impedance at the output of the amplifier is 2 Ohm, in bridged mode 4 Ohm. In any case do not expose the amplifier to the loads lower than specified by the manufacturer. Use these schematics to calculate load impedance of different connection types.
Page 7
Voice coil Total impedance 4 Ohm 1.33 Ohm 8 Ohm 2.66 Ohm Voice coil Total impedance 4 Ohm 1 Ohm 8 Ohm 2 Ohm Mixed connection of the speakers Voice coil Total impedance 4 Ohm 4 Ohm 8 Ohm 8 Ohm CAUTION!!! High sound pressure can damage your health! Please use the common sense when controlling volume! The minimum permissible load impedance at the single channel is 2 ohm, in bridged mode 4 ohm.
Page 8
Voice coils 1+1, 2+2, 4+4 Ohm The subwoofer has voice coil D1, D2 or D4. One subwoofer, coils in series Voice coils Total impedance 1+1 Ohm 2 Ohm 2+2 Ohm 4 Ohm 4+4 Ohm 8 Ohm One subwoofer, coils in parallel Voice coils Total impedance 1+1 Ohm...
Page 9
Voice coils Total impedance 1+1 Ohm 2 Ohm 2+2 Ohm 4 Ohm 4+4 Ohm 8 Ohm Subwoofers in series, coils in series Voice coils Total impedance 1+1 Ohm 4 Ohm 2+2 Ohm 8 Ohm 4+4 Ohm 16 Ohm Voice coils Total impedance 1+1 Ohm 6 Ohm...
Page 10
Voice coils Total impedance 1+1 Ohm 0.66 Ohm 2+2 Ohm 1.33 4+4 Ohm 2.66 Voice coils Total impedance 1+1 Ohm 0.5 Ohm 2+2 Ohm 1 Ohm 4+4 Ohm 2 Ohm Subwoofers in parallel, coils in parallel Voice coils Total impedance 1+1 Ohm 0.25 Ohm 2+2 Ohm...
Page 11
10.69 x 5.98 x 2.15 *RMS Power at 14.4 V, THD 1% Deaf Bonce amplifiers are high-quality and technically perfect products. The problems often arise due to improper use, faulty connection of components or lack of power supply of the on-board network.
I N F O R M AT I O N Each Deaf Bonce product is warranted to be free from defects in materials and workmanship under normal use and service. The warranty period for the product is 12 (twelve) months from the date on which the product is transferred to the consumer (this date shall be deemed to be the date on which the consumer starts using the product).
Page 13
С О Д Е Р Ж А Н И Е С О Д Е Р Ж А Н И Е Информация о гарантийном сроке, сервисном обслуживании и сроке службы...
Page 15
9. После завершения установки проверьте электропроводку системы и убедитесь в том, что все подключения были выполнены правильно. Перед установкой предохранителя, отключите плюсовой кабель от АКБ, установите предохранитель в держатель предохранителя. При помощи лампочки 12 В 21 Вт подключите плюсовой кабель к одному контакту лампочки, а...
Page 16
Стандартная схема подключения пятиканального усилителя к ГУ 1. Один конец кабеля RCA подключите к клеммам выходов RCA на ГУ, второй конец к входам RCA на усилителе, обозначенными CH1/CH2, CH3/CH4 и SUBWOOFER. Назначение разъемов и органов управления 4 5 6 7 8 9 10 11 12 13 15 14 18 19 20 Пульт...
6. СПОСОБЫ ПОДКЛЮЧЕНИЯ Минимальное допустимое сопротивление на выходе усилителя 2 Ом, в мостовом режиме 4 Ом. CХЕМЫ ПОДКЛЮЧЕНИЯ ДИНАМИКОВ Ни в коем случае не подвергайте усилитель нагрузкам ниже заявленного производителем. Используйте данные схемы для расчета сопротивления различных типов соединений. Последовательное соединение динамиков Звуковая...
Page 18
Звуковая катушка Общий импеданс 4 Ом 1,33 Ом 8 Ом 2,66 Ом Звуковая катушка Общий импеданс 4 Ом 1 Ом 8 Ом 2 Ом Смешанное соединение динамиков Звуковая катушка Общий импеданс 4 Ом 4 Ом 8 Ом 8 Ом ВНИМАНИЕ!!! Высокое звуковое давление может навредить вашему здоровью, поэтому руководствуйтесь здравым...
Page 19
Звуковые катушки 1+1, 2+2, 4+4 Ом Сабвуфер имеет звуковую катушку D1, D2 или D4. Один сабвуфер, катушки последовательно Общий импеданс Звуковые катушки 1+1 Ом 2 Ом 2+2 Ом 4 Ом 4+4 Ом 8 Ом Один сабвуфер, катушки параллельно Общий импеданс Звуковые...
Page 22
Модель MFA-5.1000 Мощность RMS 4 Ом* (Вт) 4 х 80 + 1 х 300 Мощность RMS 2 Ом* (Вт) 4 х 120 + 1 х 500 Мощность RMS 4 Ом мостовое включение* (Вт) 2 х 240 1-4 канал Фильтр высоких частот (Гц) 50 - 12 000 1-4 канал...
Page 23
О Б С Л У Ж И В А Н И И И С Р О К Е С Л У Ж Б Ы Для каждого продукта Deaf Bonce гарантируется отсутствие дефектов материалов и изготовления при нормальном использовании и обслуживании.
