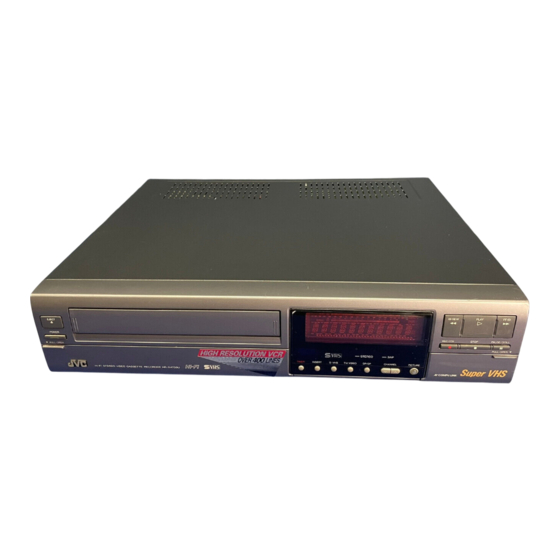

SPECIFICATIONS
GENERAL
Power requirement
Power consumption
Temperature
Operating :
;
Storage
Humidity
Operating :
Storage
Operating position
Dimensions (WxHxD) :
AC 120 V~, 60 Hz
34W
5°C to 40°C (41°F to 104°F)
-20°C to. 60°C (~4°F to 140°F)
35% to 80%
5% to 80%
Horizontal only
435 x 102 x 373 mm
(17-3/16" x 4-1/16" x 14-11/16")
Weight
6.4 kg (14.2 Ibs)
Format
S-VHS/VHS NTSC standard with Hi-Fi
audio
Tape width
12.65 mm
Tape speed
(SP)
33.35 mm/sec (1-5/16 ips)
{EP)
11.12 mm/sec (7/16 ips)
Maximum recording
time
(SP)
160 min. with T-160 video cassette
.
(EP)
480 min. with T-160 video cassette
VIDEOL
ma
Signal system
Recording system
Input
Output
Signal-to-noise ratio
:
Horizontal resolution :
NTSC-type color signal and EIA
monochrome signal, 525 lines/60
fields
Rotary two-head helical scan system
with slant double-azimuth combination
video heads
0.5 to 2.0 Vp-p, 75 ohms, unbalanced
1.0 Vp-p, 75 ohms, unbalanced
45 dB (Rohde & Schwarz noise meter)
with PICTURE CONTROL set to OFF
240 lines (VHS)
400 lines (S-VHS)
with PICTURE CONTROL
set to OFF
AUDIO Cr
Input
: -8 dBs, more than 50 k-ohms,
unbalanced
Output
~8 GBs, less than 1 k-ohm,
unbalanced. (100 k-ohms, load)
NORMAL AUDIO Cs
ee
See)
Recording system
Longitudinal track
No. of channels
1 normal audio channel
Frequency response : 70 Hz to 10,000.Hz
Hi-Fi AUDIO Ceo
Recording system
Deep-layer recording system
conforming to stereo
Hi-Fi VHS standard
No. of channels
2 Hi-Fi audio channels
Frequency response : 20 Hz to 20,000 Hz
Dynamic range
More than 90 dB
Wow and flutter
Less than 0.005% WRMS
TUNER
Tuning system
Frequency synthesized tuner
Channel coverage
(VHF)
Channels 2~—13
(UHF)
Channels 14-69
(CATV)
113 Channels
RF output
Channel 3 or 4
(switchable; preset to Channel 3 when
shipped) 75 ohms, unbalanced
TIMER
Clock reference
Program capacity
Quartz-crystal
;
1-year programmaiie timer/
8-programs
e
Infrared remotezontrol unit,
"AA" battery x 2,
Audio cable,
Video cable,
_
§-Video cable (4 pin),
. Mini-plug cable |
E. & O.E. Specifications shown are fo; <P
mode unless
otherwise specified.
:
;
Design and specifications subject to chacg @ without notice.
COPYRIGHT © 1991 VICTOR COMPANY OF JAPAN, LTD.
No, 22277
Octob=r 1991
