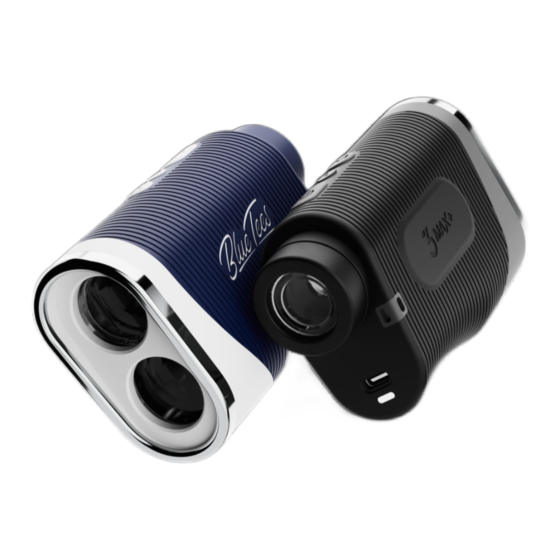

- Page 1 M A G N E T I C L A S E R R A N G E F I N D E R USER MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS FEATURES WHAT’S IN THE BOX? OPERATIONS LED DISPLAY HOW TO USE Charging the Device LED Charging Indicator Slope Switch The Advantage of Slope Red/Black Control SPECIFICATIONS IMPORTANT SAFETY INFORMATION WARNINGS CLEANING & GENERAL CARE RANGING TIPS TROUBLESHOOTING COMPLIANCE WARRANTY ENGLISH... -
Page 3: Features
FEATURES WHAT’S IN THE BOX? Weather-Proof USB-C to USB-A Carrying Case Charging/Data Cable Series 3 Max+ Rangefinder Blue Tees Quick-Start Mountaineer Wrist Blue Tees Golf Guide Buckle Cleaning Cloth Lanyard Crossed Tees Sticker ENGLISH... -
Page 4: Operations
OPERATIONS Laser Emitter / Objective Lens Laser Receiving Lens Slope Switch USB-C Charging Port LED Charging Indicator Eye Lens Focus Ring Eyepiece Power On / Start Red / Black Control Button Mode / Meter & Yard Button Magnetic Strip ENGLISH... -
Page 5: Led Display
LED DISPLAY Distance Icon Slope Adjusted Distance Flag Lock Icon Meter/Yard Beeline Distance Slope Angle Battery Indicator Icon Feet Icon MODE 1: SCAN MODE 2: GOLF MODE Press and hold POWER Press and hold POWER button to scan the area for button on the desired quick, easy distances to flag/target, unit will vibrate... -
Page 6: How To Use
HOW TO USE 1. Fully charge the rangefinder, using the USB-C cable included, for minimum 2 hours before use of product. 2. Look through the eyepiece and turn the focus dial clockwise or counter clockwise until the image is sharp. 3. -
Page 7: Slope Switch
SLOPE SWITCH The Slope Switch gives the ability to turn the Slope function on or off in Golf Mode allowing for tournament play. The red background on the switch will indicate when slope is turned on. NOTE: This product conforms to USGA rules and regulations. THE ADVANTAGES OF SLOPE The distance to the black flag in the drawing (see below) is 156.8 yards, an uphill shot of 7°... -
Page 8: Red/Black Control
RED / BLACK CONTROL The RED / BLACK CONTROL button allows for a manually changing of the display color for your preferred setting based on the environment. In high light environments, the display is best shown in BLACK. In low light environments, the display is best shown in RED. -
Page 9: Specifications
PRODUCT SPECIFICATIONS SPECIFICATION Range Distance 5 - 1000 Yards Magnification Laser Classification Class 1 Accuracy ±1.0y or ±0.1% Measuring Time .5 - 1sec Lens Coating Fully Multi-Coated (FMC) Battery Type Internal Rechargeable Lithium-Ion Battery Capacity 3.7V/1000mAh Working Time ~50 rounds of golf (5,000+ actuations) Input Type USB Type-C (Waterproof) Input Voltage/Current... -
Page 10: Important Safety Information
IMPORTANT SAFETY INFORMATION To help ensure reliable operation, the following care and maintenance guidelines are recommended: 1. Please read this manual carefully before use and store it for reference. 2. Do not disassemble or repair this device personally, otherwise it may cause product damage or personal injury. -
Page 11: Warnings
WARNINGS 1. Do not stare directly at or into the laser beam. 2. Do not aim the rangefinder at the sun. Your eyes and the components inside can be permanently damaged looking into the sun with this device. 3. Keep the eyepiece away from direct sunlight. 4. -
Page 12: Cleaning & General Care
CLEANING & GENERAL CARE The lens of your laser rangefinder is fully multi-coated for the highest light transmission. As with any multi-coated optics, special care must be taken in cleaning the lens. Follow these tips for proper lens cleaning: • Blow away any dust or debris on the lens (or use the Blue Tees cleaning cloth). -
Page 13: Ranging Tips
RANGING TIPS • Be aware that snow, rain, and fog will have an adverse effect on ranging ability. • Shiny, reflective surfaces will usually reflect better than dull, textured surfaces. • Ranging under cloud cover can improve performance compared to bright sunny conditions. •... -
Page 14: Compliance
COMPLIANCE CLASS 1 LASER PRODUCT WARNING: As with any laser device, do not directly view the emissions for long periods with magnified lenses. FDA SAFETY Complies with 21CFR1040.10 and 1040.11 except for conformance with IEC60825-1 Ed.3., as described in Laser Notice 56, dated May 8, 2019. Caution- use of controls or adjustments or performance of procedures other than those speci- fied herein may result in hazardous radiation exposure. - Page 15 COMPLIANCE Industry Canada Statement: This device complies with ISED's license-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Radiation Exposure Statement This device complies with the Industry Canada portable RF exposure limit set forth for an uncontrolled environment and is safe for the intended operation as described in this manual.
-
Page 16: Warranty
ENHANCED WARRANTY TWO-YEAR LIMITED WARRANTY Your Blue Tees Golf laser rangefinder is warrantied to be free of defects in materials and ® workmanship for two years after the date of purchase. In the event of a defect under this warranty, we will, at our option, repair or replace the product, provided that you return the product postage prepaid. - Page 17 Questions or concerns about your S3 Max+? Reach out to us at support@blueteesgolf.com...
