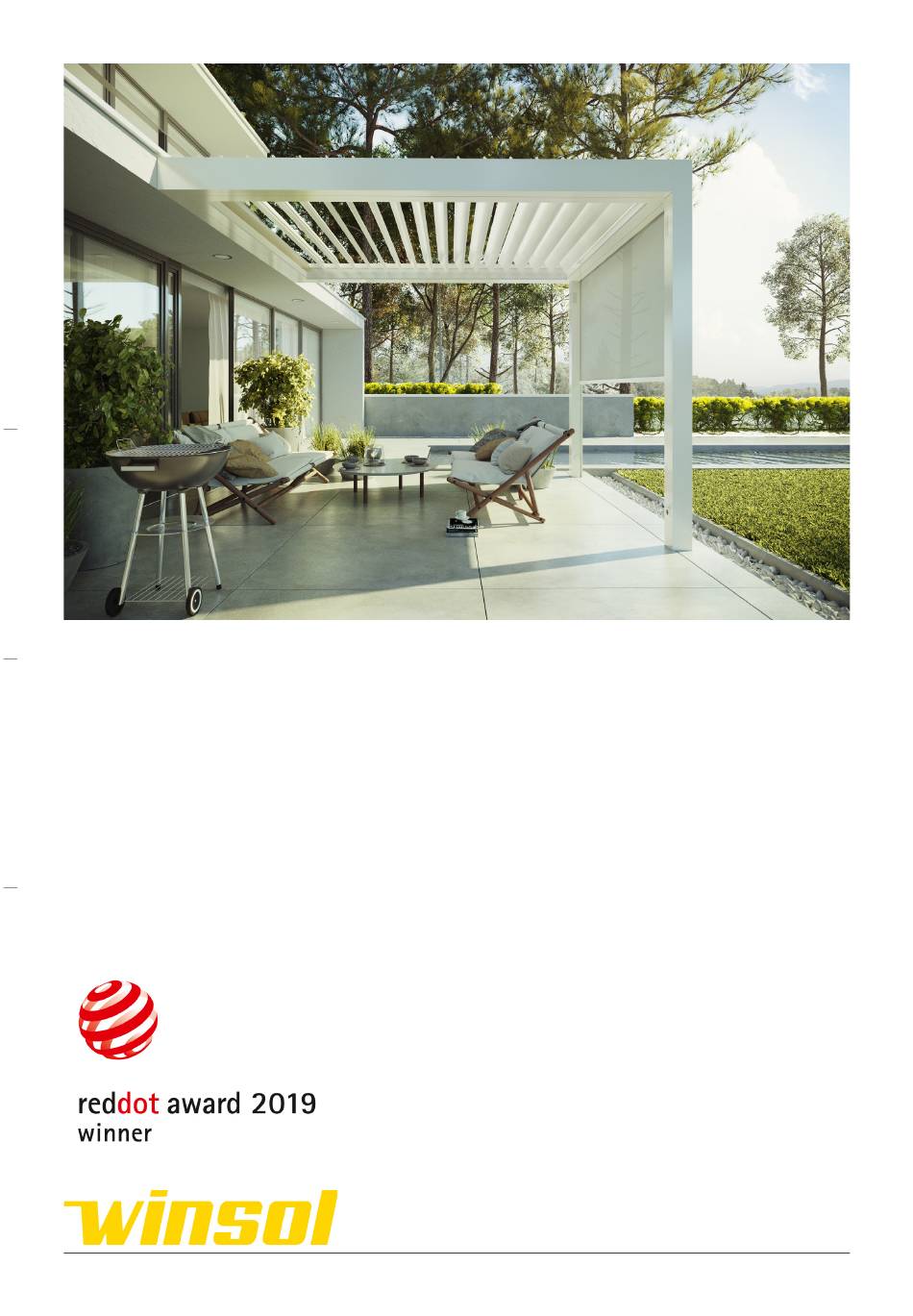

- Page 1 Sun protection Winsol | Pergolas| 2022 | User manual Warranty conditions Winsol.eu Patio pergola Railings Shutters Doors Window decoration Sun protection Gates Windows...
- Page 2 • Data sheets, CAD drawings, order forms, manuals, and general warranty information can be downloaded from the library section of our website. • Colour samples and prices are available upon request from Winsol N.V. or authorised dealers. • Technical structural assistance and references are available upon request.
-
Page 3: Table Of Contents
Index 1. PRODUCT DOCUMENTATION 1.1. Delivery, installation & transfer documents 2. GENERAL CASAMBI INFORMATION 2.1. Instruction videos: 2.2. Communication platform 2.3. Network access 2.4. Forget network 3. CASAMBI SO! NETWORK 3.1. Network homepage 3.2. Title bar 3.3. Feature modules 3.3.1. Layout: 3.3.2. -
Page 4: Product Documentation
1.1. Delivery, installation & transfer documents Installation instructions: Only installers certified by Winsol may carry out the installation after studying this enclosed document. User manual: Before commissioning this product, the installer and end user must study this manual and any annexes. -
Page 5: General Casambi Information
2. Connect the pergola to the 230V power supply, if this has not yet been done. 3. In order to use Casambi, both Wi-Fi and Bluetooth must be activated on your smartphone/tablet. 4. Open the app on your smartphone/tablet. Winsol | Sun protection Rev. 16:24 18/03/2023 Page 5/27... -
Page 6: Forget Network
5. Select “Forget”. If you have accidentally logged in using the Administrator password, you will also be shown the “Delete” option. Never use this option, it dissolves the network and any functionality of your pergola!) Winsol | Sun protection Rev. 16:24 18/03/2023 Page 6/27... -
Page 7: Casambi So! Network
If you want, you can assign modules to a group (e.g. all screens). These will be presented as one module on the homepage. • Exception: – Audio: Controlling outside the Casambi app (see below). – Projector: Independent, only connections provided (see below). Winsol | Sun protection Rev. 16:24 18/03/2023 Page 7/27... -
Page 8: Interaction | General
– Louvre Position slider: This allows you to change the positions of the louvres. – Shade/Sun slider: Allows you to change the amount of light. – Cool/Warm slider: Allows you to change the temperature. Winsol | Sun protection Rev. 16:24 18/03/2023 Page 8/27... - Page 9 Auto. 33%, 66%, or 100% Automatic 0% sun (heating) (ventilation) Absent 90° 90° No sun (maximum amount of (maximum amount of light) light) *Cold/Warm slider – cold = 17±3°C – warm = 27±3°C Winsol | Sun protection Rev. 16:24 18/03/2023 Page 9/27...
-
Page 10: Interaction | Lighting Modules
Swipe on the dimmable and adjustable modules, horizontal or vertical, to change this setting without opening the control menu. Control menu: The menu will be expanded based on the chosen product options. Dimmable Dimmable & adjustable Winsol | Sun protection Rev. 16:24 18/03/2023 Page 10/27... -
Page 11: Interaction | Screen Modules
2. Select the modules you want to add 3. Select “Done” Controls: You can control the complete group using the group feature module on the homepage. Or you can open it to control the individual feature modules. Winsol | Sun protection Rev. 16:24 18/03/2023 Page 11/27... -
Page 12: Menu Bar
You can automatically select pre-programmed scenes here. For example, RGB LEDs that change colour per period. These can be programmed by your awnings expert trained in Casambi. 3.5. www.casambi.com Extensive information (general manual, FAQ, ... ) about the Casambi-platform can be found at Casambi. Winsol | Sun protection Rev. 16:24 18/03/2023 Page 12/27... -
Page 13: Audio
1. If not yet turned on, activate the Bluetooth connection on your smartphone/tablet. 2. If your device is still connected to another Bluetooth device, you must first select the “Unpair” option. 3. Open the Bluetooth settings and “pair” to (connect with) Winsol audio. 4. Open a media player on your smartphone/tablet. -
Page 14: Maintenance
– Waves: Caused by overlapping different spool thicknesses on the fabric spool near edges and seams. This creates fabric tension, causing waves (for example, in a waffle or herringbone pattern). – Winsol observes the fabric assessment and fabric standards prescribed by Verozo. Screen fabrics The fabric surface has an anti-adhesive layer, which ensures that atmospheric residues cannot stick to it. -
Page 15: Repairs Or Expansions
1.7 Check the transformers. 12/24V output? Replace the Casambi module 2 Lighting does not work/respond 2.1 Connected to the network? Refer to 1 2.2 Line below round logo? Replace the lighting Winsol | Sun protection Rev. 16:24 18/03/2023 Page 15/27... - Page 16 Turn on Bluetooth 3.3 Restart App or turn airplane mode on and off OK? Device is not compatible 3.4 ‘Winsol’ visible in list with Bluetooth de- vices? Somebody is already connected. 3.5 Turn the power off and on. Audio signal? Device is not compatible 3.6 Check speakers connection OK?
- Page 17 Condensation is created by Condensation cannot be Condensation on the glass humidity getting into contact avoided The amount can be with cold surfaces limited by ventilation or heating Winsol | Sun protection Rev. 16:24 18/03/2023 Page 17/27...
-
Page 18: Repairs
• Carry out the disassembly in the reverse order of the assembly • Make sure that components do not fall down uncontrolled during the disassembly • Observe the local environmental conditions • Metal components can be recycled without a loss of properties Winsol | Sun protection Rev. 16:24 18/03/2023 Page 18/27... -
Page 19: Warranty Conditions
1. The device must be purchased from an authorised SO! pergola dealer or a Winsol store. 2. The installation of the SO! pergola must have been carried out by an installer certified by Winsol. 3. The payment to Winsol must have taken place in full. -
Page 20: Contents And Scope Of The Warranty
6.5. Contents and scope of the warranty 1. Winsol values the quality of its SO! patio pergola and strives to repair any defects caused by manufacturing errors during and outside of the warranty period within a reasonable period. - Page 21 28. Condensation possible on the aluminum parts of the pergola: – Louvres – Rain gutters – Housings – Poles 29. Condensation may be visible on a pergola that has not been heated sufficiently (long): Winsol | Sun protection Rev. 16:24 18/03/2023 Page 21/27...
- Page 22 This should be done by a specialized construction contractor. --> The drainage plan must be approved by Winsol. 31. Own joinery = no guarantee 32. Joinery not via WinCal = no guarantee 33.
- Page 23 Fall within the normal characteristics of the wood and workmanship: Knots, and shallow imperfections < Ø1.5cm Splinters and flaws due to edge planing. Colored slats can be touched up with oil. Winsol | Sun protection Rev. 16:24 18/03/2023 Page 23/27...
-
Page 24: End Of The Warranty Period
All claims based on shortcomings will expire at the end of the contractual warranty period. 6.8. Data protection Your personal data will only be used to process your order and to process warranty claims, with due observance of laws and regulations. Winsol | Sun protection Rev. 16:24 18/03/2023 Page 24/27... -
Page 25: Ec Conformity Declaration
Pergola SO! | User manual 2023 7. EC Conformity Declaration EG-Conformiteitsverklaring | Pergola So! Wij ondergetekende Hans Dejonckheere, Plant manager Winsol Zonwering vertegenwoordiger van Winsol, Roeselaarsestraat 542 B-8870 Izegem en gemachtigde samensteller van het technisch dossier Gwenn Vanthournout, R&D verantwoordelijke verklaren onder geheel eigen verantwoordelijkheid dat het product Pergola So!, een terrasoverkapping met roteerbare aluminium lamellen. -
Page 26: Maintenance Log
Installer date & signature: Work performed Conclusion: Work carried out: Installer date & signature: Work performed Conclusion: Work carried out: Installer date & signature: Work performed Conclusion: Work carried out: Installer date & signature: Winsol | Sun protection Rev. 16:24 18/03/2023 Page 26/27... - Page 27 Winsol | Head offices: Winsol nv Roeselaarsestraat 542 8870 Izegem Belgium T +32 (0)51 33 18 11 F +32 (0)51 33 19 91 info@winsol.eu www.winsol.eu Winsol | Dealer: Winsol.eu Patios Balustrades Shutters Doors Window decoration Blinds Garage doors Windows...
