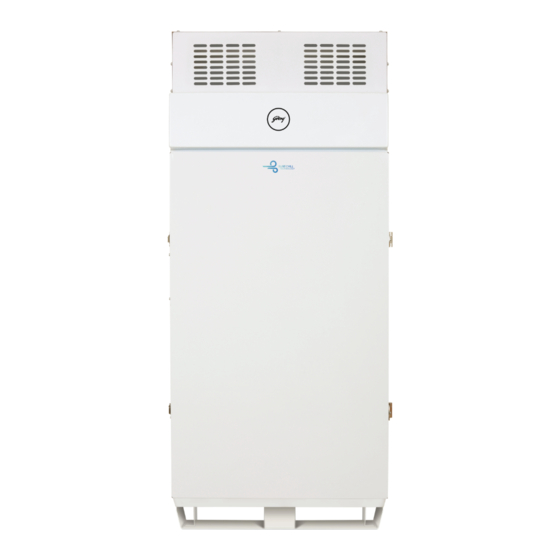

* Above image is for illustration purpose only. Actual product may vary.
MAINS POWERED VACCINE REFRIGERATOR
MODEL NUMBER: GVR 225 AC
www.godrejappliances.com/medical
User & maintenance instruction manual: Mains Powered Vaccine Refrigerator
Advertisement
Table of Contents
Related Manuals for Godrej SureChill GVR 225 AC
Summary of Contents for Godrej SureChill GVR 225 AC
- Page 1 SureChill VERY IMPORTANT Please read the filling instructions on page 9 • User and maintenance instruction manual Keep these instructions close to the Refrigerator * Above image is for illustration purpose only. Actual product may vary. MAINS POWERED VACCINE REFRIGERATOR MODEL NUMBER: GVR 225 AC www.godrejappliances.com/medical User &...
-
Page 2: Table Of Contents
TABLE OF CONTENT Page No. CONTENT DESCRIPTION User instructions General Installation Operation Decommissioning and disposal R600a Refrigerant Warnings Main components Operating instructions Normal operation Shelves Temperature control Drip tray User Maintenance Daily Weekly Monthly Installation instructions You will need Transport and handling Positioning Leveling Water filling instructions... -
Page 3: User Instructions
USER INSTRUCTIONS When using electrical appliances, basic safety precautions should be followed including the following: General • Caution! Appliance contains flammable refrigerant and capacitor that can hold charge at dangerous voltages even when the power is switched off. • Do not climb on appliance. Installation •... -
Page 4: R600A Refrigerant Warnings
R600a Refrigerant Warnings 1. Risk of Fire/Flammable materials. 2. Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. 3. Do not damage the refrigerant circuit. 4. Do not use electrical appliances inside the storage compartments of the appliance, unless they are of the type recommended by the manufacturer. -
Page 5: Main Components
Main Components • Condenser fan • Condenser • Compressor and controller • Voltage stabiliser • Indicator Light • Switch • Ventilated lid • Condensation baffle • Compartment Thermometer • Power Cable • Door seal • Plug • Shelves • Compartment * Above image is for illustration purposes only. -
Page 6: Operating Instructions
OPERATING INSTRUCTIONS Normal operation • Compartment temperature is displayed on appliance in °C on the thermometer / temperature recorder e.g. Fridge-tag. • The refrigerator automatically operates between 2°C and 8°C. • It is normal for the refrigerator to be cooled to 2-8°C within 6-8 days after commissioning. -
Page 7: User Maintenance
USER MAINTENANCE Daily 1. Check compartment temperature is between 2°C and 8°C. 2. Check all vents on top of the refrigerator are unobstructed. Weekly 1. Wipe clean the outside of the refrigerator with a soft cloth – do not use abrasive or scouring materials. -
Page 8: Installation Instructions
INSTALLATION INSTRUCTIONS Installation must be carried out by competent technicians. You will need ✓ Clean water containers (5 –20 litres), to hold… ✓ Clean, drinking water ✓ Cross head (Pozidrive) screwdriver (provided) ✓ Tape measure or ruler ✓ Funnel (provided) ✓... -
Page 9: Leveling
Leveling • Ensure the unit is level and stable when in position and before filling or starting the unit. • Check that the support bridge and condensation baffle are correctly positioned in the top of the refrigerator compartment. Note: The baffle is designed to be loose. Water filling instructions •... -
Page 10: Switching On
Switching on • Allow 24 hours after transportation before starting the compressor. • Check the refrigerator has been filled with water to correct level. • Double check all the cables are secure, and the connections are tight. • There are no parameters to set on this unit. •... -
Page 11: Technical Section
TECHNICAL SECTION Preventative maintenance (To be conducted by trained technicians only) Every 6 to 12 months 1. Record site and refrigerator details. 2. Download temperature recorder. 3. Check performance from temperature record. Environment and use 4. Confirm that the user is performing the monthly maintenance tasks and correctly using the refrigerator. -
Page 12: Fault Finding
FAULT FINDING These actions require a trained technician The compartment temperature is less than 2°C Is the compartment Replace the compartment thermometer / temperature thermometer/temperature Go to next step recorder correct? (Verify recorder using another thermometer) Relocate the appliance Is the appliance in ambient to ambient temperature Contact supplier or manufacturer temperatures less than 10°C... -
Page 13: Getting Technical Help
Getting technical help Before contacting a technician or the supplier for assistance, please collect the information listed below. This will make it easier to provide support. Site and equipment 1. Location of the refrigerator 2. Name of the health facility 3. -
Page 14: Specifications
SPECIFICATIONS TYPE/ DESCRIPTION EXAMINATION DETAILS Model GVR 225 AC Godrej & Boyce Mfg. Co. Ltd Legal Manufacturer Product type Mains powered Country of origin India Operating temperature range +10°C to +43°C Foaming agent C H Cyclopentane Insulation Polyurethane foam External dimensions ( h x w x d (cm)) 182 X 79.5 X 75... -
Page 15: Wiring Diagram
WIRING DIAGRAM INBUILT VOLTAGE STABILIZER 50Hz 60Hz Relay (Nos) PIN (Nos) User & maintenance instruction manual: GVR 225 AC - Mains powered vaccine refrigerator www.godrejappliances.com/medical... -
Page 16: Operating Voltage
LED INDICATION L1 (Red) ON: Input power present in stabiliser L2 (Red-fitted on box Flashing: Power output delay ON (180 sec Max.) side) Power output ON Note: Refer electrical specification sheet CONTROLLER PCB LED LOCATION LED ON Power ON CN5(Green – Fitted on box side) To compressor &... -
Page 17: Spare Parts
SPARE PARTS PARTS PART NUMBER Electronic Thermostat 32101502SD02744 Condenser 40101704DG00049 Compressor 40151606SD00230 Capacitor 32121501SD00936 Voltage 32101502SD00418 50hz stabiliser 32101502SD02495 60hz 50hz 39121002SD00009 Transformer 60hz 39121002SD00096 Fan motor 26101114SD00378 Fan impeller 41103015PA00033 Starting relay 39122330SD00454 OLP/Protector 39122330SD00064 User & maintenance instruction manual: GVR 225 AC - Mains powered vaccine refrigerator www.godrejappliances.com/medical... - Page 18 NOTES User & maintenance instruction manual: GVR 225 AC - Mains powered vaccine refrigerator www.godrejappliances.com/medical...
- Page 19 NOTES User & maintenance instruction manual: GVR 225 AC - Mains powered vaccine refrigerator www.godrejappliances.com/medical...
-
Page 20: Warranty
Liability is limited to the original purchase cost and excludes any consequential losses. Remedy: Godrej or their agents will, at their discretion, arrange for the repair or replacement of the defective appliance, either on site or at another location as appropriate.
