Summary of Contents for Godrej Vibe Series

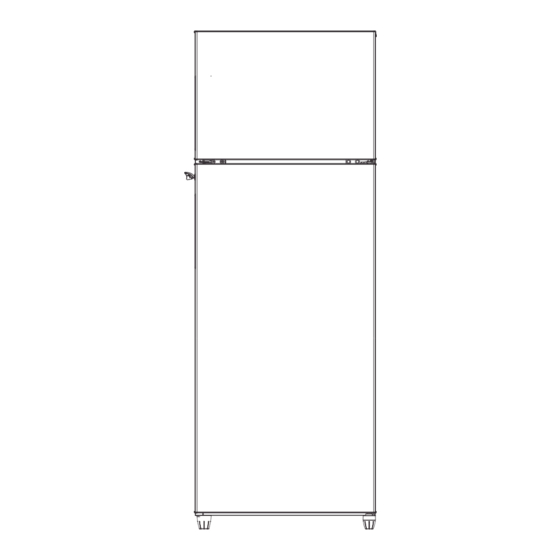

- Page 1 USER MANUAL FROST FREE REFRIGERATORS • Vibe / Valor / Crystal / Alpha Series Godrej & Boyce Mfg. Co. Ltd. - Appliance Division...
-
Page 2: Table Of Contents
CONTENTS PARTS IDENTIFICATION ..............01 TECHNICAL AND COMMERCIAL PRODUCT INFORMATION....05 HOW TO INSTALL ................06 FIRST STEPS..................06 KNOW YOUR REFRIGERATOR............07 FULLY AUTOMATIC DEFROSTING .............11 BEFORE CALLING FOR SERVICE ............11 USEFUL SUGGESTIONS FOR FOOD STORAGE .......11 CLEANING YOUR REFRIGERATOR............12 10. MOVING OUT / SHIFTING ..............12 11. -
Page 3: Parts Identification
1 - PARTS IDENTIFICATION 2 21 Model: 223L / 244L / 272L / 280L Table Top with / without Control* 13. Snugger* Coil Cover 14. Utility Shelf Movable Ice Twister Assembly 15. Light Switch Freezer Glass Shelf 16. Child Lock (Only to Lock Fridge Door) Freezer Knob 17. - Page 4 1 - PARTS IDENTIFICATION Model: 308L / 330L Table Top 10. Compartment Temp Sensor Electronic Door Control Panel 11. Crisper Cover Coil Cover 12. Vegetable Tray Assembly Movable Ice Twister Assembly 13. Bottle Shelf Freezer Glass Shelf 14. Snugger Easy Slide 15.
- Page 5 1 - PARTS IDENTIFICATION Model: 308L / 330L Table Top 10. Liner Glass Shelves with Freezer temp Sensor Cool Shower technology* Movable Ice Twister Assembly 11. Crisper Cover Coil Cover 12. Vegetable Tray Assembly Freezer Glass Shelf 13. Bottle Shelf Easy Slide 14.
- Page 6 1 - PARTS IDENTIFICATION Model: 210L / 233L Table Top 10. Small Bottle Shelf Movable Ice Tray 11. Big Bottle Shelf Toughened glass Shelf 12. Utility Shelf with Egg Tray Cold Air Control 13. Freezer Utility Shelf Easy Tray* 14. Child Lock (only to lock Fridge Door) Temperature Control 15.
-
Page 7: Technical And Commercial Product Information
2 - TECHNICAL AND COMMERCIAL PRODUCT INFORMATION SPACE NECESSARY FOR FREE CIRCULATION OF AIR OVERALL SPACE REQUIRED IN USE OVERALL DIMENSIONS SPACE REQUIRED IN USE 135-145 Approx. Overall Space Space Required Product Dimension (mm)** Required in Use in Use (mm)** TOTAL (mm)** VOLUME... -
Page 8: How To Install
3 - HOW TO INSTALL CHOOSE A WELL-VENTILATED PLACE Provide at least 6-inch space at both sides to ensure adequate circulation. There is a stopper bracket at the back side of the refrigerator which needs to be open as shown in image 1. Image 1 Stopper Factory Setting... -
Page 9: Know Your Refrigerator
After settings are done, leave the refrigerator ON for 24 hours. You can open the freezer door and feel the cold air flowing. Set the desired temperature after 24 hours by rotating the temperature control knob in the base model. For top and door models, set the desired temperature on the digital control panel. - Page 10 For Top Electronic Model • There will be a selection switch on the digital control panel, at the top of the freezer compartment. • There are six different temperature settings as shown in the image. Quick freeze and other five cooling levels. Among the five levels, the most left is MIN and most right is MAX while normal is in the centre.
- Page 11 OPERATION • The Freezer Set button can be used to set freezer temperature between -16°C Freezer and -21°C(Default:-18°C) (Mode: 1 Operation) • Each time you press the button and change the temperature as sequence -16°C -17°C -18°C -20°C -21°C • Caution: To prevent food spoilage, don’t set freezer temperature -16°C.
- Page 12 CONVERTIBLE FREEZER TECHNOLOGY WITH 6 IN 1 MODE Auto mode (default setting): intelligently controls freezer temperature depending on the load. Low Load Mode: ensures low power consumption when the load is less. Ice Cream Mode: provides ideal freezer temperature for ice creams and desserts. High Load Mode: ensures appropriate cooling when the fridge is loaded.
-
Page 13: Fully Automatic Defrosting
6 - FULLY AUTOMATIC DEFROSTING The refrigerator is designed to defrost both its compartments automatically. The cyclic defrost system ensures that the refrigerator defrosts itself daily, by a ‘Defrost Heater’ during the ‘Defrost Cycle’ during which the compress is off only for some time. -
Page 14: Cleaning Your Refrigerator
Place a thick towel over the door so it does not close. MOVING HOUSE If you are moving house, it is essential that a Godrej service representative or an authorised dealer inspects the refrigerator at the time of re-installation. This is important for the continuation of the warranty of the product/optional service contract for the sealed system of refrigerator. -
Page 15: Safety Precautions
Set the temperature and cold air control judiciously. At peak settings, the power consumption is the highest. Protection of Environment: Protection of environment" is one of the core values of Godrej and we seek your co-operation to make sure that the product, packaging and plastic material is not disposed as unsorted municipal waste. -
Page 16: Warranty
In case of any such defect found during the first year from date of purchase, Godrej & Boyce Mfg. Co. Ltd. - Appliance Division will undertake repairs to the warranted part free of charge, subject to the terms and conditions below.
