Summary of Contents for InfiniSolar PE300-2524

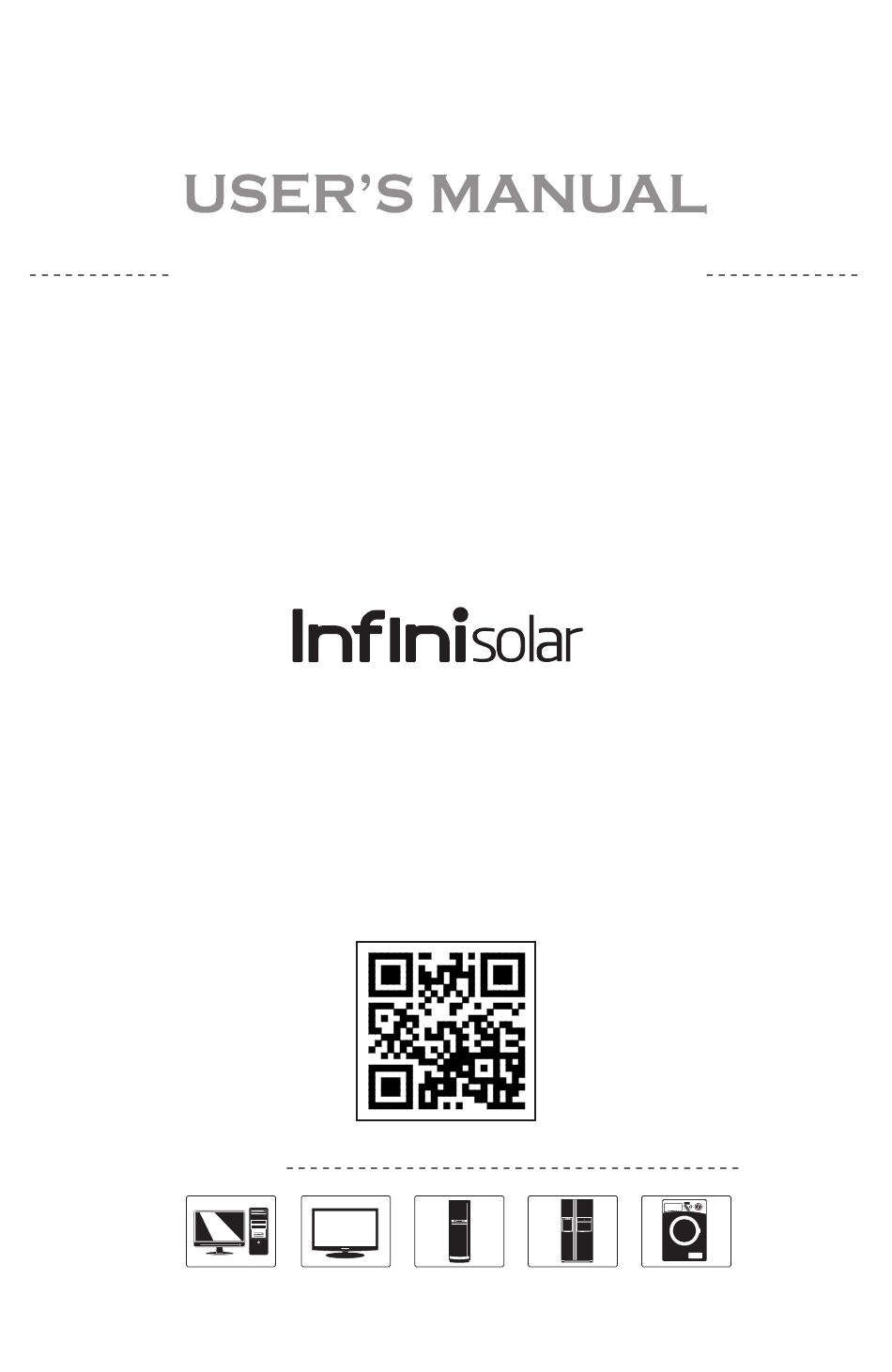

- Page 1 POWER INVERTER PE300-2524/PE300-3524/ PE300-5048/PE300-7548 Pleasedownloadthesoftware “ SolarPowerMonitor2.2.81” . Download link:https://bit.ly/2PyyLg6 Appliances Air- Washing Fridge conditioning machine 4200-030029-0000...
-
Page 2: Table Of Contents
TABLE OF CONTENTS General Precautions.....................1 Personnel Precautions..................1 Introduction.......................2 ......................2 Features ..................2 LCD Panel Description ................3 AC terminal panel printing description Installation......................3 ..................3 Unpacking and inspection ......................3 Preparation ....................4 Mounting the Unit Operation......................6 ..................7 Operation key instructions ..................7 Setting key instructions LCD display........................ -
Page 3: General Precautions
WARNING! This manual contains important instructions for all Inverter/Charger models that shall be followed during installation and maintenance of the inverter. The following cases are not within the scope of warranty 1. Out of warranty. 2. Series number was changed or lost. 3. -
Page 4: Introduction
Introduction It is series is very economical pure sine wave inverter, AC charger inbuilt, from 20A to 60A; Solar/AC priority is configurable, when setting solar priority, solar will charge batteries as first priority, and AC can also charge batteries when solar charger current too lower, in this way system charge is optimazed best. it enables inverter to operate with all kinds of home appliances. -
Page 5: Ac Terminal Panel Printing Description
AC terminal panel printing description. Battery Voltage Battery Voltage 12VDC 12VDC AC INPUT AC INPUT 24VDC 24VDC PROTECT PROTECT 48VDC 48VDC AC OUTPUT 10A MAX AC OUTPUT 10A MAX AC INPUT AC OUTPUT AC INPUT AC OUTPUT Battery Battery REMOTE PORT REMOTE PORT Negative Negative... -
Page 6: Mounting The Unit
It is suggested to keep battery bank as close as possible to inverter. battery cable length 1m is suggested. Please find following minimum wire size. If DC cable longer than 1 m, please use thicker battery cables to bear power current going though. Wire Type Model Battery Voltage Type PE300-2524 24VDC 6AWG 24VDC 4AWG PE300-3524... - Page 7 BA T-C AN WARNING: Shock Hazard Installation with special care is required due to high battery pack voltage. CAUTION!! Do not place anything between the flat part of the inverter terminal and the ring terminal. Otherwise, overheating may occur. CAUTION!! Do not apply antioxidant substance on the terminals before terminals are connected tightly. CAUTION!! Before making the final DC connection or closing DC breaker/ dis-connector, be sure positive (+) must be connected to positive(+) and negative(-) must be connected to negative(-).
-
Page 8: Operation
Please follow below steps to implement Load/Grid connection: · Before making Load/Grid connection, be sure to open DC protector or disconnector first. · Remove insulation sleeve 10mm for six conductors. And shorten phase L and neutral conductor N 3mm. · Insert grid wires according to polarities indicated on terminal block and tighten the terminal screws. -
Page 9: Operation Key Instructions
Operation key instructions: · Switch button to control the machine On and off. · There are four buttons: MENU, UP, DOWN, ENTER. · Via UP and DOWN can check the various parameters display. · Long press MENU to enter the setting menu page, MENU and ENTER turn over the menu page, UP and DOWN to set the parameters. - Page 10 50HZ(default) 60HZ Inverter frequency setting Range of adjustment: 10A - Max Rated current(default) Regulation step 5A AC charging setting acid (default) Select the battery type (Lead acid or Lithium) Lithium Battery type If “User-Defined” LI is selected,battery charge voltage and low DC cut-offvoltage can be set up in program 17,18 and 19.
-
Page 11: Lcd Display
AC charging on(default) AC charging off AC charging switch settings Percentage 20﹪(default) ﹪ Increment of each click is 1﹪. 95﹪(default) ﹪ (default) Page up key Page down key DOWN Confirm the exit key ENTER LCD display: The software material No. & version No.002-05 shall be The Battery voltage and rated power shall be displayed displayed on LCD Screen when switch on. -
Page 12: Ags Function
BAT TEMP and Capacity AGS function AGS function information The AGS function is that the inverter will start the generator automatically via the dry contact when the battery is low voltage. Note: The generator must have dry contact function. If you connect AC grid and Generator to Inverter input at the same time, the interlock device should be installed between generator output and inverter input. -
Page 13: Bts -Can Function
BTS -CAN function: · BMS communication connection,confirm that the setting content is correct,and the wiring is not abnormal, the inverter matching lithium battery communication protocol confirm that the setting is normal. Lithium battery Inverter BAT -CA Communication Computer Monitoring directions ·... -
Page 14: Specifications
Wait for a moment, Power Monitor will work normally. Monitor software function operation Specific function Operations of the monitoring software, please refering to the HELP docs after the connection is successful. Specifications Inverter Mode Specification Rated power(W) PE300-2524 PE300-5048 PE300-7548 PE300-3524 Power Factor Pure sine wave Wave form Output voltage RMS 110V/115V/120VAC(220V/230V/240VAC)±10%... -
Page 15: Ac Mode Specification
(low voltage fault code04) 10/10.5/11/11.5/12V for 12V model Low battery cut off 20/21/22/23/24V for 24V model 40/42/44/46/48V for 48v model Add 0.5V/battery: (low battery alarm one second one time) (10/10.5/11/11.5/12V) +0.5Vdc for 12V model Low battery alarm (20/21/22/23/24V) +1Vdc for 24v model (40/42/44/46/48V) +2Vdc for 48v model Add +1V/battery: (high voltage one second one time/after 30s fault 03) (12-14.5V) + 1V for 12V model... -
Page 16: Charge Mode Specifications
Charge Mode Specifications Max charge current: (±5A) model PE300-2524 PE300-3524 PE300-5048 PE300-7548 Min charge current 10A. change by every 5A. Charge mode AC range: Setting recover Low voltage Charge mode Charge mode Stop charge Charge recover AC>135V AC<130V 120V AC wide range... -
Page 17: Fault Mode
Fault Mode LED instruction LED state information No AC input LED AC(green) AC normal Blink AC over range LED Inv(yellow) Inverter mode normal LED Fault(red) fault Blink caution BUZZER instruction Buzzer state information Buzzer off normal Buzzer beep caution Buzzer on fault LCD display instruction When inverter alarm, even it back to recovery mode. -
Page 18: Trouble Shootiong
Trouble shooting If machine enters into fault mode, please remove input power. And according to the table, deal with the following problems. Explanation / Possible cause LED/Buzzer What to do Fault code 01 Fan stop run Check the fan. Buzzer beeps continuously Temperature of machine is too high.
