Summary of Contents for AWM Humanscale M/FLEX

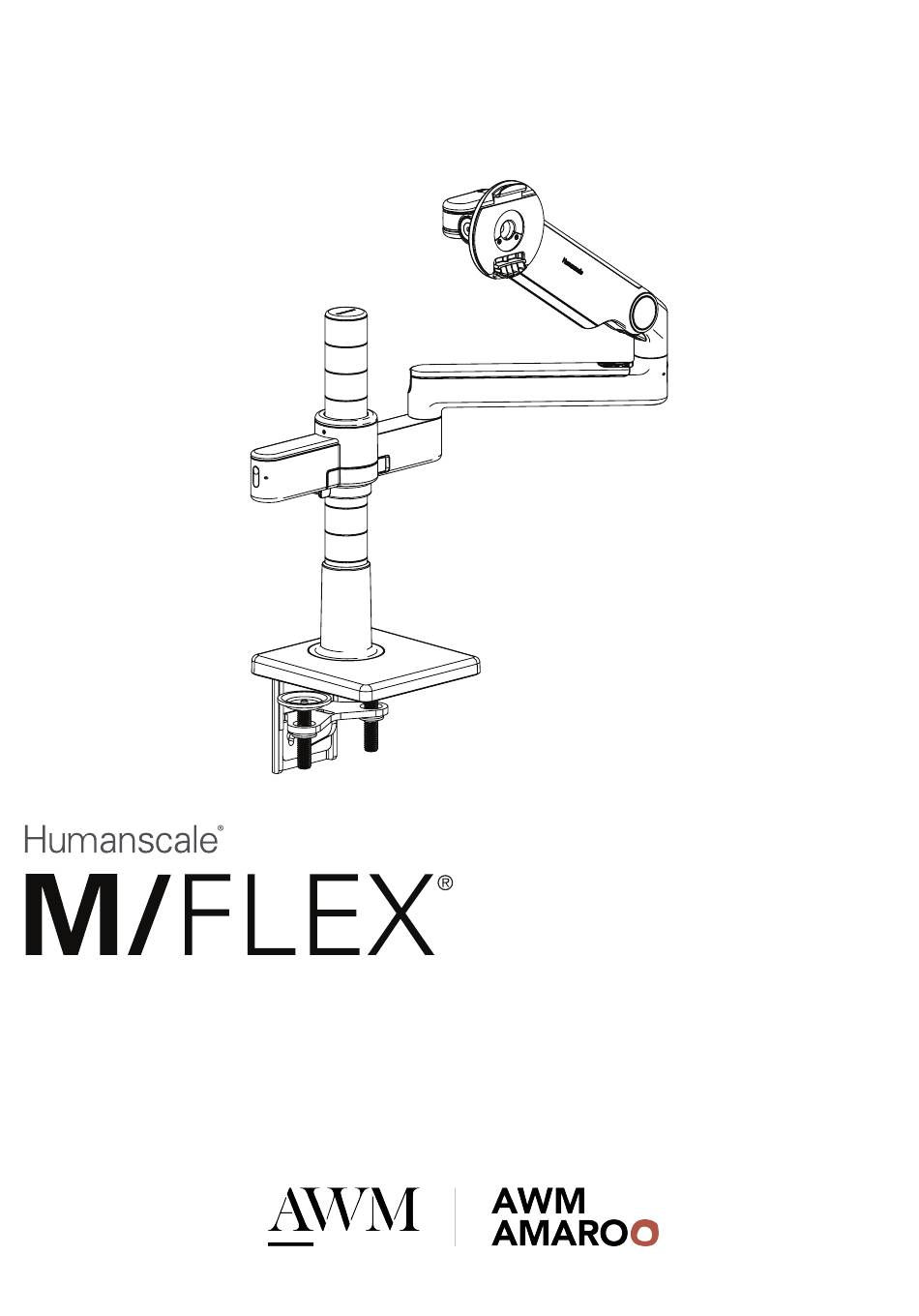

- Page 1 Desk Mount Assembly Instructions 1300 475 217 awm.net.au sales@awm.net.au...
-
Page 2: Installation Hardware
VESA Plate and Cover 4 Standard VESA 4 Plastic Spacers 4 Extended VESA Bracket Screws Bracket Screws Clamp Mount Clamp Mount Sliding Desk Mount Bolt-Through Mount Bolt-Through 10mm 16mm Bolt-Through Plate Bolt-Through Bolts Hex Key Wrench Adapter 1300 475 217 awm.net.au sales@awm.net.au... - Page 3 Ensure the Base is facing the user. See steps 1B – 3, 4 to reattach Clamp Bracket. * If the diameter of the grommet hole is less than 3” (75 mm), a Bolt-Through Mount is required. 1300 475 217 awm.net.au sales@awm.net.au...
- Page 4 Bolt-Through Adapter using the 10 mm hex key. ** The Bolt-Through Mount will accommodate holes and grommets up to 4” (102 mm) in diameter. Holes 2” or larger will allow cables to be routed through before installation of the mount. 1300 475 217 awm.net.au sales@awm.net.au...
- Page 5 Bracket. Press down until it clicks into place. Cable Routing Hook Spread the hooks around the post in the desired location. Squeeze the two sides until the Lock (K) snaps together. To release, use fingernail to disengage the Lock. 1300 475 217 awm.net.au sales@awm.net.au...
- Page 6 To remove a link, press the release button and lift upward near the joint. NOTE: The installation order of the links must not allow the monitor to pass behind the rear edge of the unit. 1300 475 217 awm.net.au sales@awm.net.au...
- Page 7 To remove the monitor, lift the Quick Release Tab and pull the bottom of the monitor away from the arm, then lift free of the hook. NOTE: If needed, adjust the Tension Screw (A) to hold the monitor in position. 1300 475 217 awm.net.au sales@awm.net.au...
-
Page 8: Cable Management
Test your adjustments by closing the Lever. CAUTION: If the lever is dif cult to close, or will not close fully, it is over-tightened. Turn the adjustment screw counter-clockwise slightly. Forcing it closed will damage the M/Flex. 1300 475 217 awm.net.au sales@awm.net.au... -
Page 9: Weight Adjustments
Monitors Should Not Exceed: 15.5 lbs (7 kg) for M2.1 28 lbs (12.7 kg) for M8.1 48 lbs (21.8 kg) for M10 Total Weight Not To Exceed 95 lbs (43 kg) 1300 475 217 awm.net.au sales@awm.net.au...
