Desk Mount
Assembly Instructions
North America: +1 800 400 0625
North America: +1 800 400 0625
Europe: +353 (0)1 858 0910
Europe: +353 (0)1 858 0910
Asia Pacific: +852 2581 0570
Asia Pacific: +852 2581 0570
awm.net.au
EN
2
EN
2
FR
9
FR
10
ES
11
ES
13
IT
14
IT
16
DE
16
DE
19
NL
19
NL
22
sales@awm.net.au
1300 475 217
Advertisement
Table of Contents
Related Manuals for AWM Humanscale M10
Summary of Contents for AWM Humanscale M10

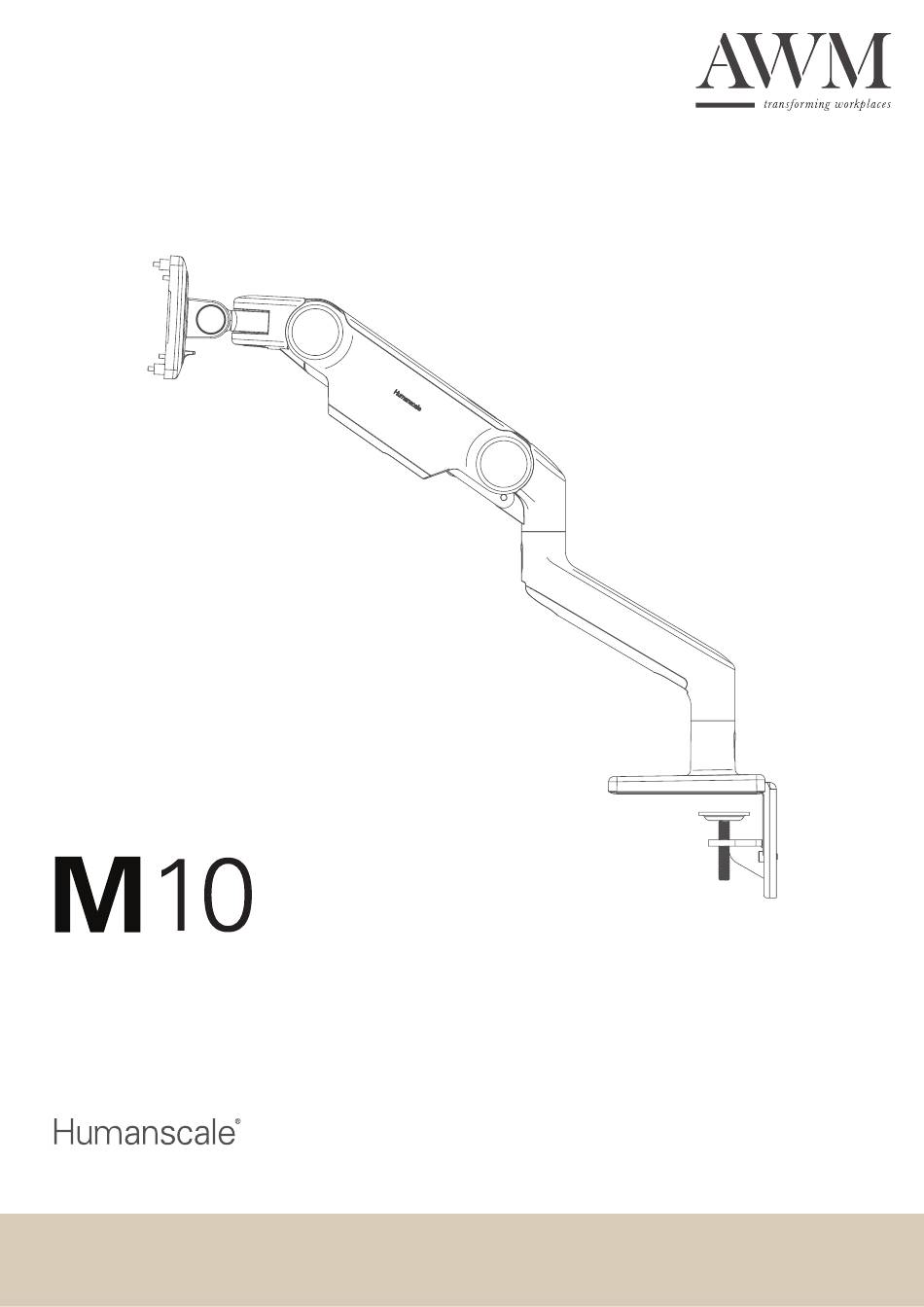

- Page 1 Desk Mount Assembly Instructions North America: +1 800 400 0625 North America: +1 800 400 0625 Europe: +353 (0)1 858 0910 Europe: +353 (0)1 858 0910 Asia Pacific: +852 2581 0570 Asia Pacific: +852 2581 0570 awm.net.au sales@awm.net.au 1300 475 217...
- Page 2 INSTALLATION HARDWARE 4 Standard VESA Bracket 4 Plastic Spacers 5mm Hex Key Screws NOTE: 4mm and 5mm Hex Key can 4 Extended VESA Bracket VESA Bracket and Cover Screws be found under the plastic base cover. Bolt-Through Mount 8 mm Hex Key Bolt-Through Plate Bolt-Through Bolts Sliding Desk Mount...
- Page 3 Assembly Instructions Attach Mount To Work Surface Clamp Mount NOTE: There are two sets of Bracket Screw holes to accommodate the thickness of every work surface. Use the upper holes for surfaces up to 1.8” (48mm) thick and lower holes for surfaces up to 2.7” (68mm) thick. A - For installation on open edge of work surface: Slide Mount (A) against work surface edge and fully tighten Clamp screws(B) with 5mm hex key (C).
- Page 4 BOLT-THROUGH MOUNT D - For installation on work surface with no access for clamp system: Drill 1/2” hole through work surface in desired location. NOTE: Bolt-Through Mount can accommodate a hole up to 4” (102mm) in diameter. If hole is 2” (51mm) or more, cables can be routed through the hole.
- Page 5 Attach Arm To Base Stem NOTE: Before adding each link, adjust the smart stop (A) according to step 2. The links should be positioned so that the monitors do not extend beyond the desk surface. Insert the angled link into the mount until release button locks in place.
- Page 6 Attach Vesa Bracket To Monitor Separate the VESA cover from the VESA bracket. Position the VESA Bracket over the mounting holes on the back of monitor with the D-shaped cutouts in a vertical orientation. Attach using the 4 VESA screws provided.
- Page 7 Leveling The Monitors (Dual-Monitor Application Only) After the monitors are installed on the crossbar, there may be a small height di erence between them. To align the monitors, use the adjustment screw located on top of the monitor tilt. To raise a monitor, turn the screw clockwise. To lower, turn counter clockwise. (Optional) Attach handle (D) to crossbar by using included screws (E).
- Page 8 Cable Management If using multiple monitors, first route the cables through the plastic cable clips on the front of the crossbar. If using a single monitor, skip to step 2. Route power and monitor cables through the flexible cable clips on the M10’s upper link (B).
