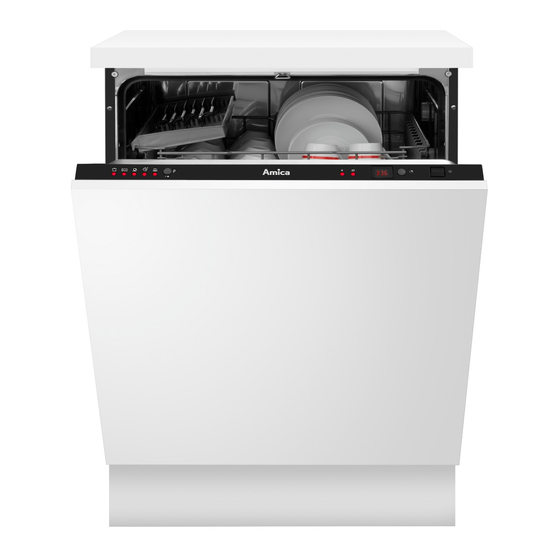

Amica ZIG 665C Operating Instructions Manual

Amica ZIG 665C Operating Instructions Manual

Hide thumbs Also See for ZIG 665C:

Advertisement

Quick Links

OPERATING INSTRUCTIONS
EN
ZIG 665C
IO-DWS-1053
Please carefully read these Operating Instructions
(03.2021/1)
before using the appliance!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZIG 665C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Amica ZIG 665C

  • Page 1 OPERATING INSTRUCTIONS ZIG 665C IO-DWS-1053 Please carefully read these Operating Instructions (03.2021/1) before using the appliance!
  • Page 2: Disposal Of Old Appliance

    DISPOSAL OF OLD APPLIANCE In accordance with European Directive 2012/19/EU and local legislation re- garding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste after it has been used.
  • Page 3: Ecology In Practice

    PRODUCT DESCRIPTION ECOLOGY IN PRACTICE For many years, Amica has consistently pursued pro-ecological policy. Concern for the environment is as important for us as the use of modern technology. The development of technology has enabled our factories to become more environmentally friendly –...
  • Page 4: Dear Customer

    Dear customer! Thank you for choosing an Amica product. For years we have deliv- ered high-quality appliances, so that household chores become a real pleasure. Before being packaged and leaving the manufacturer, the appliance was thoroughly checked with regard to safety and func- tionality.
  • Page 5: Basic Information

    BASIC INFORMATION Carefully read the operating instructions before plugging dishwasher to a power outlet and using the appliance. Operating instruction include tips that will help you avoid the risk of injury and damage to the appliance. Keep dishwasher documenta- tion in a safe place for possible future use. These operating instructions have been prepared for a range of appliances and some features described herein may not apply to your appliance.
  • Page 6: Safety And Germent Care Labels

    SAFETY AND GERMENT CARE LABELS Before you install the Check the appliance for transport appliance damage. Never install or use a dam- aged appliance. If in doubt, contact your seller. Before first use See installation notes (below). Refer the grounding system instal- lation to a qualified electrician.
  • Page 7: Child Safety

    SAFETY AND GERMENT CARE LABELS Before first use This appliance can be used by children aged 8 years and older or persons with physical, mental or sensory handicaps, or those who are inexperienced or unfa- miliar with the appliance, provided they are supervised or have been instructed how to safely use the appliance and are familiar with...
  • Page 8: Daily Maintenance

    SAFETY AND GERMENT CARE LABELS Child safety Dishwasher water is not suitable for drinking. Danger of injury from the caustic chemicals. When you open the door during a programme, be careful as water temperature is high. To avoid injury always place long and sharp/pointed items (e.g.
  • Page 9: In Case Of Problems

    SAFETY AND GERMENT CARE LABELS In case of problems Refer repair and modifications of the appliance to qualified techni- cians only. In the event of problems or repairs, unplug the appliance from the wall outlet: Unplug the appliance by pulling the plug, Turn off the circuit breaker.
  • Page 10 SAFETY AND GERMENT CARE LABELS Dishes and utensils that Ashtrays, candles, cleaning are not suitable for pastes, paints, chemicals, ferro- dishwashers. alloys; Forks, spoons and knives with a handle made of wood, ivory or Nacre, glued items, items con- taminated with abrasive powders, acid or base Plastic dishes that are not resist- ant to high temperature, contain-...
  • Page 11 SAFETY AND GERMENT CARE LABELS UNPACKING During transportation, protective packaging was used to protect the appliance against any damage. Af- ter unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environ- ment.
  • Page 12: Install The Appliance

    INSTALL THE APPLIANCE PLACEMENT OF THE PRODUCT When choosing the place of installation, make sure you will be able to easily load and remove dishes and utensils from the dishwasher. Do not place the appliance in a room where the temperature can fall below 0°C. Before installing unpack the appliance following the instructions on the packaging.
  • Page 13 NOTE: Aquastop water supply is used in some dishwasher models. Dangerous voltage could occur with Aquastop. Do not cut the Aquastop water supply. Do not allow it to bend or twist. Important! For safety reasons, close the water tap after every wash. THE DRAIN HOSE The drain hose can be connected directly to a water drain or kitchen sink stub pipe.
  • Page 14 Always use the plug provided with the appliance. When you operate the appliance at lower voltage the dishwashing efficiency will deteriorate and may damage the appliance. The power cord may only be replaced by authorized service or a qualified electrician. Failure to comply with these rules may lead to an accident.
  • Page 15: Product Description

    PRODUCT DESCRIPTION DISHWASHER FEA TURES The features and components of the appliance (fig. 1): 1 Upper Basket 2 Spray Arms 3 Lower Basket 4 Water Softener 5 Filters 6 Detergent Dispenser 7 Rinse Aid Dispenser 8 Cutlery basket 9 Fork shelf...
  • Page 16: Control Panel

    CONTROL PANEL 1. Program indicator light: when you select a washing programme, the corresponding light will display. 2 Program select button/Child lock button: Press the button to select the program. The „child lock“ will be available when you press the button 3 seconds ,and „LO“ flashes 6 times on digital displays.
  • Page 17 PREPARE THE APPLIANCE FOR OPERA TION The importance of water descaling A dishwasher requires soft water (with low calcium content) to operate efficiently. Otherwise, white residue main remain on the dishes and inside the appliance. This has a negative impact on the quality of dishwashing, rinsing and drying. When the water flows through the softener, ions responsible for the water hardness are removed, and the water becomes soft, for best dishwashing results.
  • Page 18 Loading the Salt into the Softener Always use salt intended for use with dishwasher. NOTE: If your model has no water softener, you may skip this section. WA TER SOFTENER The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils.
  • Page 19: Rinse Aid Dispenser

    Fill the Rinse Aid Dispenser Function of Rinse Aid Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, spot and streak free drying. Attention! Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g.
  • Page 20 The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes that can leave spots and streaks. It also improves drying by allowing water to sheet off the dishes. Your dishwashers are designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser.
  • Page 21 Detergent Dispenser The dispenser must be refilled before the start of each washing cycle following the instruc- tions provided in the Wash Cycle Table. Your dishwashers use less detergent and rinse aid than conventional dishwashers. Generally, only one tablespoon of detergent is needed fora normal wash load.
  • Page 22: Loading The Dishwasher Baskets

    NOTE: You find information about the amount of detergent for the single programme on the last page. Please be aware that according to the level soiling and the specific hardness of water, differences are possible. Please observe the manufacturer’s recommendations on the detergent packaging.
  • Page 23: Description Of The Appliance

    DESCRIPTION OF THE APPLIANCE Adjusting the Upper Basket If required, the height of the upper basket can be adjusted in order to create more space for large utensils either in the upper basket or lower basket. The upper basket can be adjusted for height by putting wheels of different height into the rails.
  • Page 24 Cutlery Basket and Fork shelf Cutlery should be placed in the cutlery basket with handles at the bottom: If the basket has side baskets, the spoon should be loaded individually into the appropriate slots, especially long uten- sils should be placed in the horizontal position at the front of the upper basket. Cutlery basket Type Item...
  • Page 25 Loading Cutlery and Dishes Before loading the dishes, you should: Remove large left-over Soften remnants of burnt food in pans When Loading the Dishes and Cutlery, Please Note: Dishes and cutlery must not impede the rotation of the spray arms. Load hollow items such as cups, glasses, pans etc.
  • Page 26 Turning on the Appliance Starting a wash cycle... Draw out the lower and upper basket, load the dishes and 1. push them back. It is recommended to load the lower basket first, then the upper one (see the section entitled „Loading the Dishwasher”). Pour in the detergent (see the section entitled „Salt, Detergent and Rinse Aid”).
  • Page 27: Maintenance And Cleaning

    MAINTENANCE AND CLEANING Filtering System The filter is used to avoid the big remnants and other sundries getting inside the pump. The residue can obstruct the filter in sometime. The filter system consists of a coarse filter, a flat (Main filter) and a micro filter (fine filter).
  • Page 28 Cleaning the Spray Arms It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings. To remove the spray arms, screw off the nut cloc- kwise to take out the washer on top of the spray arm and remove the arm. Wash the arms in soapy and warm water and use a soft brush to clean the jets.
  • Page 29: Troubleshooting

    TROUBLESHOOTING How to Keep Your Dishwasher in Shape: After Every Wash After every wash, turn off the water supply to the appliance and leave the door slightly ajar so that moisture and odors are not trapped inside. Remove the Plug Before cleaning or performing maintenance, always remove the plug from the socket.
  • Page 30: Error Codes

    ERROR CODES When some malfunctions happen, the appliance will display error codes to warn you. CODES MEANINGS POSSIBLE CAUSES The door is opened when the Door open dishwasher is operating Water inlet Water inlet malfunction Water drainage Water drainage malfunction Temperature sensor Temperature sensor malfunction Overflow occurs/Water leakage...
  • Page 31 Problem Possible cause Solution The dishwasher will not The dishwasher will not The dishwasher door is open — close the door. start start The appliance is not Close the door carefully, make sure it is closed fully connected to the mains power The Delay start function is selected Child Lock is enabled...
  • Page 32 Problem Possible cause Solution The dishwasher will not The dishwasher will not Close the door carefully, make sure it is closed start fully start The appliance is not Check the connection to the power supply connected to the mains power The Delay start function is selected To change the setting, refer to the Start Delay section in the operating instructions...
  • Page 33 Problem Possible cause Solution The dishwasher does The drain is clogged Check the air trap. drain the water properly The drain hose is bent Make sure that the drain hose is correctly con- nected to the drain Foam in the dishwasher The wrong detergent Make sure that the detergent used is suitable for was used...
  • Page 34: Installation Instruction

    INSTALLATION INSTRUCTION Water pipe and eletric device should be installed by professionals Cut off the power before installing the dishwasher, or electric shock may occur Before Installation Dishwasher place requirement. The back of dishwasher should face to the wall, and the dishwasher has inlet and outlet pipe, which can be connected on the right or left side conveniently.
  • Page 35 The dimension of the front ornamental plate the hole with 10mm depth Fix the ornamental plate The plug with T shape 2-4×26 wo- oden screw 4-4x42 wooden screws remove 2-ST4X10 screw ST 4-4×42 wooden screw the door of dishwasher 4-4x42 wooden screws ornamental plate...
  • Page 36 Tension Adjustment of the Door Spring After placed the panel on the dishwasher, please try open and close the door to test the ba- lance to check out whether the door can remain a same place. If not, please adjusting the screw in the direction of clockwise or counter-clockwise to.
  • Page 37 Connecting the water outlet hose Put the hose into drainage hose which diameter is more than 40mm or into the sink, both should make sure the outlet pipe is straight ,and the height of the end of pipe should be less than 1m.
  • Page 38 Installation of skirting board ornamental plate plate the skirting board Referenced dimension serial Ornamental plate Plate to ornament number the skirting board 708 mm 75 mm 698 mm 85 mm 688 mm 95 mm 678 mm 105 mm 668 mm 115 mm 658 mm 125 mm...
  • Page 39 Fixation of dishwasher 1.Fixing the dishwasher with the cabinet by turning the screws. 2.Plug the four hole plugs into the holes in the sketch map. ST4*26 hole plug Dishwasher liner right and left side and the top 4 holes, use wood screws ST4*26 dishwa- sher fixed on the cabinet (selt-tapping screws were matching)
  • Page 40: Warranty And After-Sales Service

    For more information about the product, please refer to the EU EPREL Product Database at https://eprel.ec.europa.eu. For more informa- tion, please use your mobile device to scan the QR code on the energy label or enter the product model listed on the energy label in the EPREL search engine https://eprel.ec.europa.eu/ WARRANTY AND AFTER SALES SERVICE...
  • Page 41 AMICA S.A. UL. MICKIEWICZA 52 64-510 WRONKI TEL. 67 25 46 100 FAX 67 25 40 320 WWW.AMICA.PL 03.2021./1...
