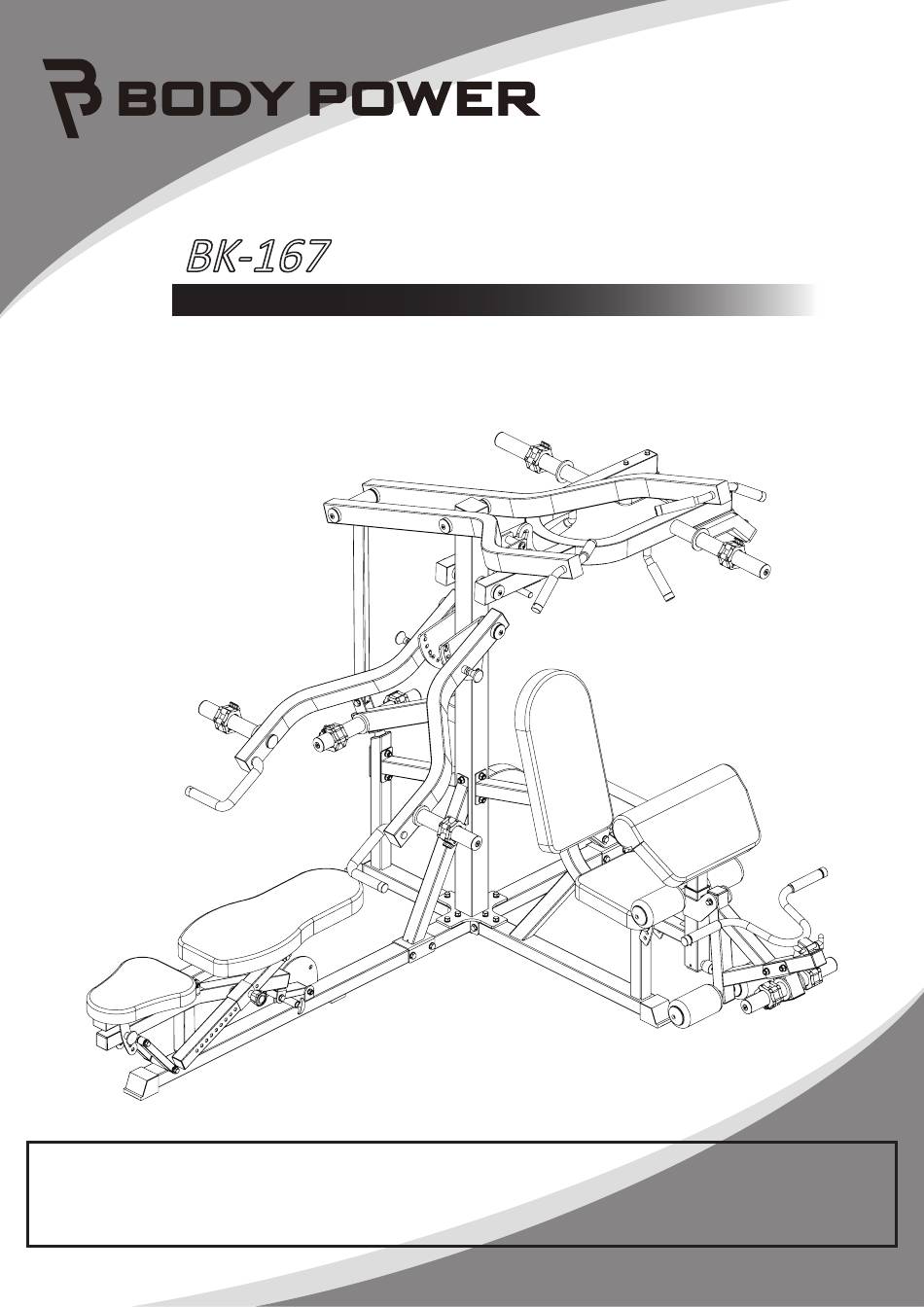

- Page 1 BK-167 M u l ti - S t a ti o n L e v e r a g e G y m Installation Instructions 综 合 训 练 器 IMPORTANT: Please read the Safety Guidelines and Installation Instructions in this manual before assembly of this product.
- Page 2 Safety Guidelines When Using This Product Personal Safety during Assembly. Assistance may be required during assembly of this product. • Before beginning assembly, please take the time to read the instructions thoroughly. • Read each step in the assembly instructions and follow the steps in sequence. Do not skip ahead.
- Page 3 • Breath properly. Inhale during the eccentric phase of the exercise, and exhale during the lifting, or concentric phase. Never hold your breath during any part of an exercise. • Always wear the appropriate clothing and shoes when exercising. Wearing comfortable athletic shoes with good support and loose fitting, breathable clothing will reduce the risk of injury.
- Page 4 GUIDE RODS: Wipe clean with a dust free rag. Lubricate with a Silicon or Teflon based lubricant. ADJUSTMENTS / LOCKING PINS / TIGHTENING KNOBS: Check all pieces for signs of visible wear or damage. Check springs in Snap Links and Pop Pins for proper tension and alignment. If the spring sticks or has lost its rigidity, replace it immediately.
-
Page 5: Table Of Contents
Contents Parts list ………………………………………………………………………………………………………………………6-9 Assembly step-1 …………………………………………………………………………………………………………10-15 Assembly step-2 …………………………………………………………………………………………………………16-17 Assembly step-3 …………………………………………………………………………………………………………18-20 Assembly step-4 …………………………………………………………………………………………………………21-22 Assembly step-5 …………………………………………………………………………………………………………23-24 Assembly step-6 …………………………………………………………………………………………………………25-27 Assembly step-7 …………………………………………………………………………………………………………28-30 Assembly step-8 …………………………………………………………………………………………………………31-34 Assembly step-9………………………………………………………………………………………………………….35-38 Assembly step-10 ……………………………………………………………………………………………………….39-42... -
Page 6: Parts List
Parts list Serial NO. Description Note Qty. BK-167-1 base frame BK-167-2 base frame left BK-167-3 base frame right BK-167-4 upright frame BK-167-5 hexagon bolt M12*100 BK-167-6 gasket Φ12 BK-167-7 lock nut BK-167-8 hexagon bolt M10*30 BK-167-9 spring gasket Φ10 BK-167-10 gasket Φ10... - Page 7 Parts list BK-167-39 foam inner cover BK-167-40 foam outer cover BK-167-41 foam BK-167-42 foam rod BK-167-43 bending handle BK-167-44 T shape pin Φ10*75 BK-167-45 hexagon bolt M12*55 BK-167-46 allen bolt M10*20 BK-167-47 end cap-50 Φ50*Φ11*9.5 BK-167-48 lat pull tube left...
- Page 8 Parts list BK-167-80 sleeve tube BK-167-81 back pad frame 1 BK-167-82 bearing 6001 BK-167-83 tube plug Φ40*60 BK-167-84 selector tube BK-167-85 powder metallurgy sleeve Φ32*Φ29*Φ20*18 BK-167-86 tube plug Φ45*45*2.0 BK-167-87 support tube BK-167-88 locking spring knob BK-167-89 base frame BK-167-90...
- Page 9 Parts list BK-167-119 selector plate BK-167-120 inner thread lock screw M4*5 BK-167-121 outer thread lock screw Φ5*8-M4 BK-167-122 tube Φ50*300 BK-167-123 BK-167-124 allen bolt M10*30 BK-167-125 hexagon bolt M8*100 BK-167-126 rubber sheet t4.0*45*85 BK-167-127 handle cover Φ12*70 Bolt length meter...
-
Page 10: Assembly Step-1
Assembly step-1 explosion drawing No. Description Note Qty. base frame base frame left base frame right upright frame hexagon bolt M12*100 gasket Φ12 lock nut hexagon bolt M10*30 spring gasket Φ10 10 gasket Φ10... - Page 11 Factory assembly explosion drawing No. Description Note Qty. gasket Φ12 lock nut 63 frame 64 tube plug 65 locking spring knob 66 rubber cushion 67 tube plug 32-25 68 powder metallurgy Φ22*Φ18*Φ12*15 69 rivet nut 70 magnetic pin 71 double screw rod M12*218 72 selector frame 73 rubber cushion...
- Page 12 Factory assembly explosion drawing No. Description Note Qty. No. Description Note Qty. gasket Φ12 79 shaft Φ12*125 lock nut 80 sleeve tube 10 gasket Φ10 81 back pad frame 1 15 hexagon bolt M12*80 82 bearing 6001 19 lock nut 83 tube plug Φ40*60 33 hexagon bolt...
- Page 13 Factory assembly explosion drawing No. Description Note Qty. 69 rivet nut 74 tube plug 75 foot cover...
- Page 14 Factory assembly explosion drawing No. Description Note Qty. 94 big gasket Φ30*Φ10.5*3.0 95 powder metallurgy sleeve Φ50*Φ47*Φ25*15 96 shaft Φ25*67-M10 97 allen bolt M10*20 98 rubber sheet t4.0*45*85 99 screw ST4.0*12...
- Page 15 Assembly step-1 drawing Assembly step-1 installation instruction 1 Fix base frame left-2 and base frame right-3 fastening with base frame-1 using M12*100 hexagon bolt-5, Φ12 gasket-6 and M12 lock nut-7. 2 Fix upright frame-4 fastening with base frame left-2,base frame right-3 and base frame-1 using M10*30 hexagon bolt-8, Φ10 spring gasket-9 and Φ10 gasket-10.
-
Page 16: Assembly Step-2
Assembly step-2 explosion drawing No. Description Note Qty. gasket Φ12 lock nut 11 hexagon bolt M12*95 12 hexagon bolt M12*105 13 bending tube left 14 bending tube right... - Page 17 Assembly step-2 drawing Assembly step-2 installation instruction 1 Fix bending tube left-13 fastening on base frame left-2 using M12*95 hexagon bolt- 11, Φ12 gasket-6 and M12 lock nut-7 2 Fix bending tube right-14 fastening on base frame right-3 using M12*95 hexagon bolt- 11, Φ12 gasket-6 and M12 lock nut-7.
-
Page 18: Assembly Step-3
Assembly step-3 explosion drawing No. Description Note Qty. gasket Φ12 lock nut 10 gasket Φ10 15 hexagon bolt M12*80 16 footplate 58 hexagon bolt M10*65... - Page 19 Factory assembly explosion drawing No. Description Note Qty. 69 rivet nut 77 tube plug...
- Page 20 Assembly step-3 drawing Assembly step-3 installation instruction 1 Fix footplate-16 fastening on bending tube right-14 using M12*80 hexagon bolt-15, Φ 12 gasket-6 and M12 lock nut-7. 2 Fix footplate-16 fastening on base frame right-3 using M10*65 hexagon bolt-58 and Φ 10 gasket-10.
-
Page 21: Assembly Step-4
Assembly step-4 explosion drawing No. Description Note Qty. gasket Φ12 lock nut 10 gasket Φ10 12 hexagon bolt M12*105 17 hexagon bolt M12*75 18 hexagon bolt M10*75 19 lock nut 20 connection tube right 21 connection tube left 22 reinforcing plate... - Page 22 Assembly step-4 drawing Assembly step-4 installation instruction 1 Fix connection tube right-20 fastening on main frame using M10*75 hexagon bolt-18, Φ10 gasket-10, M10 lock nut-19. 2 Fix connection tube right-20 and connection tube left-21 fastening on main frame using M12*105 hexagon bolt-12, Φ12 gasket-6, M12 lock nut-7 and reinforcing plate- 3 Fix connection tube left-21 fastening on main frame using M12*75 hexagon bolt-17, Φ12 gasket-6, M12 lock nut-7 and reinforcing plate-22.
-
Page 23: Assembly Step-5
Assembly step-5 explosion drawing No. Description Note Qty. 23 seat pad left 24 back pad left 25 seat pad frame 26 back pad front 27 gasket Φ8 28 hexagon bolt M8*55 29 hexagon bolt M8*35 30 hexagon bolt M8*20... - Page 24 Assembly step-5 drawing Assembly step-5 installation instruction 1 Fix seat pad left-23 and back pad-24 fastening on the main frame using M8*55 hexagon bolt-28, Φ8 gasket-27. 2 Fix seat pad front-25 fastening on main frame using M8*35 hexagon bolt-29, Φ8 gasket-27.
-
Page 25: Assembly Step-6
Assembly step-6 explosion drawing 6 17 9 34 No. Description Note Qty. gasket Φ12 lock nut spring gasket Φ10 17 hexagon bolt M12*75 27 gasket Φ8 30 hexagon bolt M8*20 31 arm curl pad 32 arm curl pad adjuster tube 33 hexagon bolt M10*20 34 big gasket... - Page 26 Factory assembly explosion drawing No. Description Note Qty. 85 powder metallurgy sleeve Φ32*Φ29*Φ20*18 74 tube plug 97 allen bolt M10*20 100 tube plug Φ40*Φ25*Φ11*29 101 tube plug 32-25 No. Description Note Qty. 102 tube 103 end cap Φ50*Φ11*11 104 allen bolt M10*25 105 tube plug...
- Page 27 Assembly step-6 drawing Assembly step-6 installation instruction 1 Fix leg curl tube-36 fastening on main frame using M10*20 hexagon bolt-33, Φ10 spring gasket-9, Φ10 big gasket-34 and shaft-35. 2 Fix barbell plate holder-62 fastening on leg curl tube-36 using M12*75 hexagon bolt- 17, Φ12 gasket-6 and M12 lock nut-7.
-
Page 28: Assembly Step-7
Assembly step-7 explosion drawing No. Description Note Qty. 38 allen bolt M8*25 39 foam inner cover 40 foam outer cover 41 foam 42 foam rod 43 bending handle 44 T shape pin Φ10*75... - Page 29 Factory assembly explosion drawing No. Description Note Qty. 106 handle cover Φ25*130 107 end cap Φ25 108 screw M4*3 No. Description Note Qty. 109 plastic nut...
- Page 30 Assembly step-7 drawing Assembly step-7 installation instruction 1 Fix foam-41 and foam rod-42 on the main frame using M8*25 allen bolt-38, foam inner cover-39 and foam outer cover-40. 2 Fix bending handle-43 fastening on main frame using T shape pin-44.
-
Page 31: Assembly Step-8
Assembly step-8 explosion drawing No. Description Note Qty. gasket Φ12 lock nut spring gasket Φ10 33 hexagon bolt M10*20 34 big gasket Φ25*Φ10.5*2.0 37 barbell rod ring Φ50 45 hexagon bolt M12*55 46 allen bolt M10*20 47 end cap-50 Φ50*Φ11*9.5 48 lat pull tube left 49 lat pull tube right 50 upright connection tube... - Page 32 Factory assembly explosion drawing No. Description Note Qty. 95 powder metallurgy sleeve Φ50*Φ47*Φ25*15 110 tube plug □50*70*2.0 108 screw M4*3 111 handle cover Φ25*150 107 end cap Φ25...
- Page 33 Factory assembly explosion drawing No. Description Note Qty. 95 powder metallurgy sleeve Φ50*Φ47*Φ25*15 No. Description Note Qty. 85 powder metallurgy sleeve Φ32*Φ29*Φ20*18 103 end cap Φ50*Φ11*11 104 allen bolt M10*25 110 tube plug □50*70*2.0 112 tube Φ50*200 113 rubber ring Φ70*Φ50*10...
- Page 34 Assembly step-8 drawing Assembly step-8 installation instruction 1 Fix barbell plate holder tube-51 fastening on main frame using M10*20 hexagon bolt- 33, Φ10 big gasket-34, shaft-52. 2 Fix lat pull tube left-48 and lat pull tube right-49 fastening on main frame using M10*20 allen bolt-46 and end cap-47.
-
Page 35: Assembly Step-9
Assembly step-9 explosion drawing No. Description Note Qty. spring gasket Φ10 37 barbell rod ring Φ50 46 allen bolt M10*20 53 arm pushing tube 47 end cap-50 Φ50*Φ11*9.5 60 selector plate right 61 selector plate left... - Page 36 Factory assembly explosion drawing No. Description Note Qty. 103 end cap Φ50*Φ11*11 104 allen bolt M10*25 107 end cap Φ25 108 screw M4*3 110 tube plug □50*70*2.0 113 rubber ring Φ70*Φ50*10 114 bearing 6005 115 tube Φ50*260 116 handle cover Φ25*400 117 tube plug Φ48...
- Page 37 Factory assembly explosion drawing No. Description Note Qty. 119 selector plate 120 inner thread lock screw M4*5 121 outer thread lock screw Φ5*8-M4...
- Page 38 Assembly step-9 drawing Assembly step-9 installation instruction 1 Fix arm pushing tube-53, selector plate right-60 and selector plate left-61 fastening on main frame using M10*20 allen bolt-46, end cap-47 and Φ10 spring washer-9. 2 Put 2pcs. barbell rod ring-37 on arm pushing tube-53.
-
Page 39: Assembly Step-10
Assembly step-10 explosion drawing No. Description Note Qty. spring gasket Φ10 37 barbell rod ring Φ50 46 allen bolt M10*20 47 end cap-50 Φ50*Φ11*9.5 56 hook 57 shoulder pushing tube 59 shaft Φ25*254... - Page 40 Factory assembly explosion drawing No. Description Note Qty. 27 gasket Φ8 30 hexagon bolt M8*20 66 rubber cushion 76 allen bolt M8*16 95 powder metallurgy sleeve Φ50*Φ47*Φ25*15 99 screw ST4.0*12 103 end cap Φ50*Φ11*11 107 end cap Φ25 108 screw M4*3 110 tube plug □50*70*2.0...
- Page 41 Factory assembly explosion drawing No. Description Note Qty. 127 handle cover Φ12*70...
- Page 42 Assembly step-10 drawing Assembly step-10 installation instruction 1 Fix shoulder pushing tube-57 fastening on main frame using M10*20 allen bolt-46, end cap-47, shaft-59 and Φ10 spring washer-9. 2 Fix hook-56 fastening on shoulder pushing tube-57 using M10*20 allen bolt-46, end cap-47, shaft-59 and Φ10 spring washer-9.
