INSTALLATION & OPERATION MANUAL FOR
MODELS
VCM24
VCM34
VCM36
VCM48
VCM60
VCM72
ITW Food Equipment Group, LLC
3600 North Point Blvd.
Baltimore, MD 21222
Cheesemelters
MLS
ML-135124
ML-135123
ML-135126
ML-135127
ML-135128
ML-135129
www.vulcanhart.com
CMJ36
MODELS
MLS
CMJ24
ML-135124
CMJ34
ML-135123
CMJ36
ML-135126
CMJ48
ML-135127
CMJ60
ML-135128
CMJ72
ML-135129
www.wolfrange.com
RETAIN THIS MANUAL FOR FUTURE USE
FORM F-36954 (04-07)
Advertisement
Table of Contents
Related Manuals for ITW Food Equipment Group VCM24
Summary of Contents for ITW Food Equipment Group VCM24

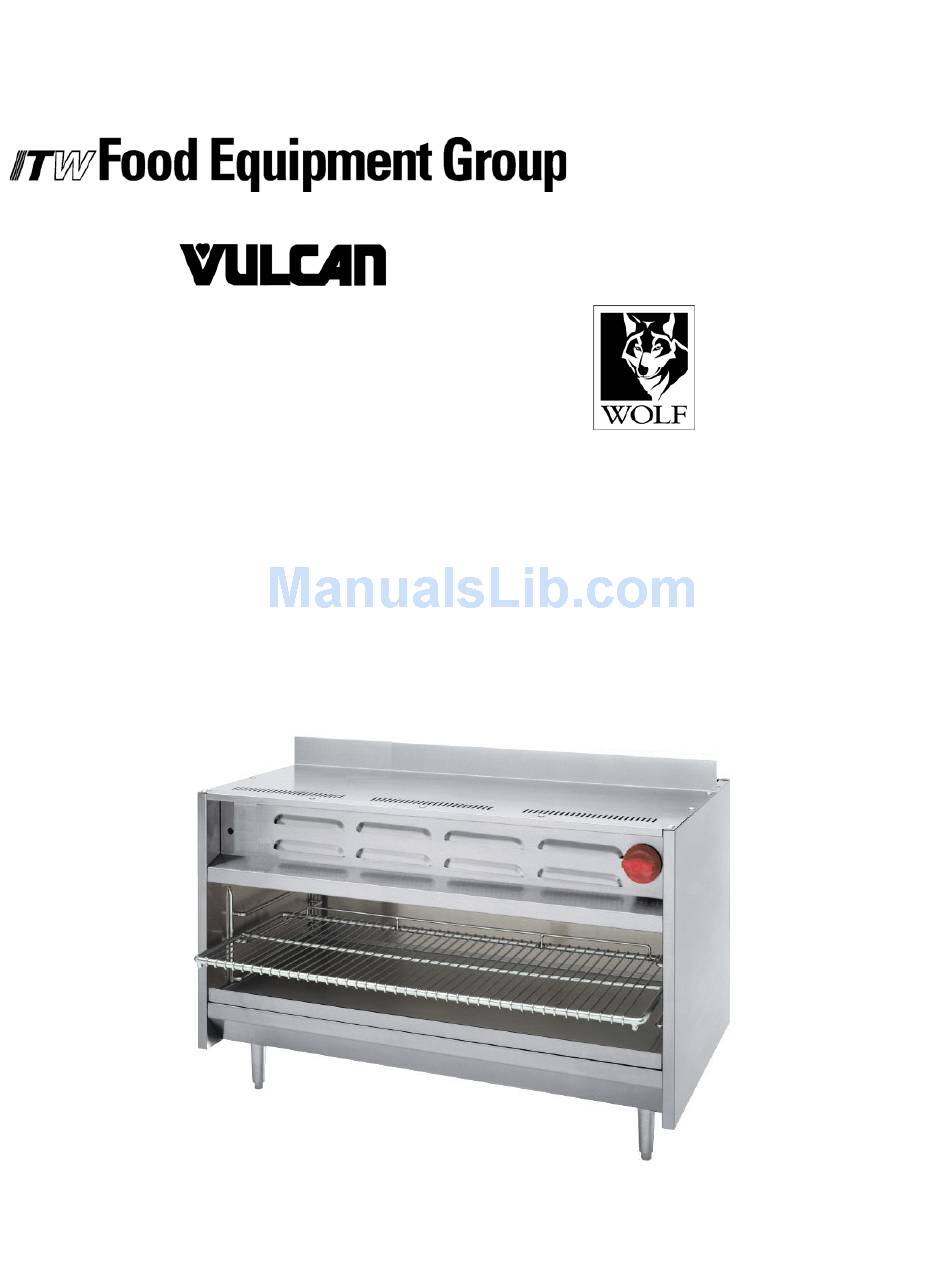

- Page 1 INSTALLATION & OPERATION MANUAL FOR MODELS VCM24 VCM34 VCM36 VCM48 VCM60 VCM72 www.vulcanhart.com ITW Food Equipment Group, LLC 3600 North Point Blvd. Baltimore, MD 21222 Cheesemelters ML-135124 ML-135123 ML-135126 ML-135127 MODELS ML-135128 ML-135129 CMJ24 CMJ34 CMJ36 CMJ48 CMJ60 CMJ72 CMJ36...
-
Page 2: Important For Your Safety
IMPORTANT FOR YOUR SAFETY THIS MANUAL HAS BEEN PREPARED FOR PERSONNEL QUALIFIED TO INSTALL GAS EQUIPMENT, WHO SHOULD PERFORM THE INITIAL FIELD START-UP AND ADJUSTMENTS OF THE EQUIPMENT COVERED BY THIS MANUAL. POST IN A PROMINENT LOCATION THE INSTRUCTIONS TO BE FOLLOWED IN THE EVENT THE SMELL OF GAS IS DETECTED. -
Page 3: Installation
Cheesemelters are produced with quality workmanship and material. Proper installation, usage and maintenance of your Cheesemelter will result in many years of satisfactory performance. Model VCM24 / CMJ24 VCM34 / CMJ34 VCM36 / CMJ36 VCM48 / CMJ48 VCM60 / CMJ60... -
Page 4: Installation Codes And Standards
The installation location must allow adequate clearances for servicing and proper operation. While another gas-fired cheesemelter can be placed adjacent to this Cheesemelter, there must be no obstruction to the front of the Cheesemelter. A minimum front clearance of 36" (91 cm) is required. Do not obstruct the flow of combustion and ventilation air. -
Page 5: Gas Connections
If the Cheesemelter is to be mounted over a Gas Range, a reinforced hi-shelf and special mounting brackets are required. Cheesemelter. Fig. 1 1. Remove existing rear shelf and install the reinforced high shelf. 2. Install mounting brackets on both top corners of reinforced shelf, using the four bolts provided. -
Page 6: Gas Pressure Regulator Installation
GAS PRESSURE REGULATOR INSTALLATION Gas regulator pressure is preset at 6” Water Column (W.C.) for natural gas, and 10” W.C. for propane gas. Minor adjustments may be required based on site specific gas pressure. Install the regulator as close to the cheesemelter on the gas supply line as possible. Make sure that the arrow on the underside of the regulator is oriented in the direction of gas flow to the cheesemelter (Fig. -
Page 7: Operation
WARNING: THE CHEESEMELTER AND ITS PARTS ARE HOT. BE CAREFUL WHEN OPERATING, CLEANING OR SERVICING THE CHEESEMELTER. CONTROLS Burner Valve — the burner valve regulates the flow of gas throughout the Sliding Shelves (Rack) — Grease Pan (Drip Tray) — Pilot Adjustment Valve —... -
Page 8: Loading And Unloading
LOADING AND UNLOADING Place the rack in the desired position. Pull the rack out for loading. Load as quickly as possible and avoid spillage. Push the rack into place and cook for the appropriate time. Lower and pull the rack out for unloading. CLEANING Interior When the Cheesemelter is cool, remove rack. -
Page 9: Troubleshooting
PROBLEM Uneven heating Side burning Too much top heat Uneven heat, side to side Uneven heat, front to back Dried-out products Pilot outage Poor ignition TROUBLESHOOTING POSSIBLE CAUSES 1. Temperature too low 2. Improper operation of Cheesemelter 3. Fluctuating gas pressure 1.
