LIGHT INC MH-740 Manual

Led wash moving head, independant pixel control, rotating front lens, bright and fast
Hide thumbs

Advertisement

Quick Links

Download this manual
MOVING HEAD
MH-740 LED WASH
MANUAL
INDEPENDANT
PIXEL CONTROL
ROTATING
FRONT LENS
BRIGHT
AND FAST
www.light-inc.nl

Advertisement

loading
Need help?

Need help?

Do you have a question about the MH-740 and is the answer not in the manual?

Questions and answers

Related Manuals for LIGHT INC MH-740

Summary of Contents for LIGHT INC MH-740

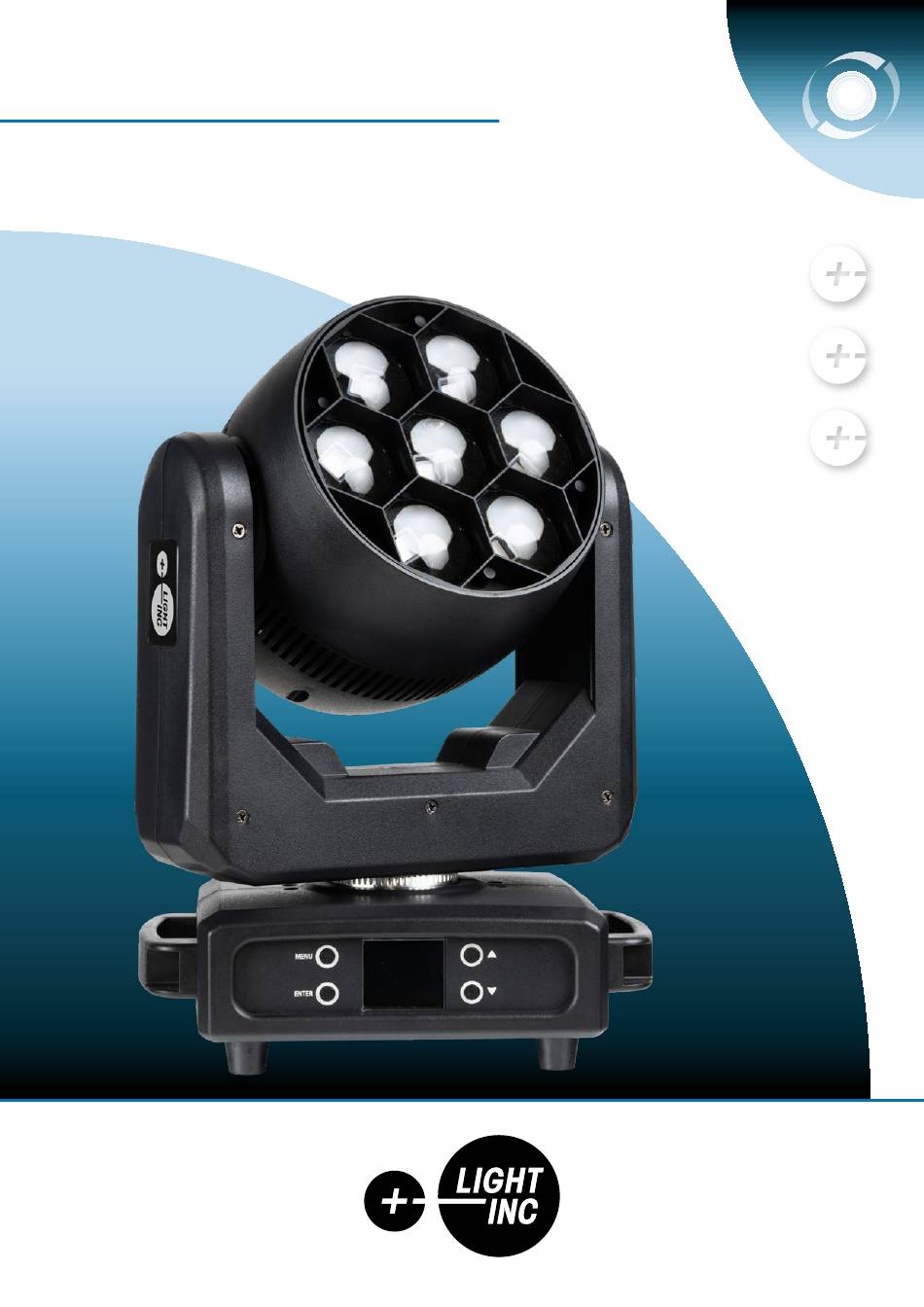

  • Page 1 MOVING HEAD MH-740 LED WASH MANUAL INDEPENDANT PIXEL CONTROL ROTATING FRONT LENS BRIGHT AND FAST www.light-inc.nl...

  • Page 2: Safety Information

    THANK YOU FOR PURCHASING OUR PRODUCTS Every unit has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the outer and inner packaging for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your fixture for any damage and be sure all accessories necessary to operate the unit have arrived intact.

  • Page 3: Installation

    2. INSTALLATION The fixture should be mounted using its Omega Quick Release Clamp bracket. Always ensure that the unit is securely fixed to prevent vibration and slipping during operation. Make sure that the structure to which you are attaching the unit is sturdy and capable of supporting a weight that is 10 times that of the fixture. When installing, always use a safety cable that can support a weight 12 times that of the fixture.
  • Page 4 4.2 Main function To power on the unit, press the MENU button to enter the menu mode. Then, use the UP/DOWN buttons to navigate until the desired function is displayed on the monitor. Confirm your selection by pressing the ENTER button.
  • Page 5 DMX Functions To access MENU mode, select DMX Functions, then press the ENTER button to confirm. Use the UP/DOWN button to choose between DMX Address, DMX Channel Mode, or View DMX Value. DMX Address For DMX Address selection, press ENTER to confirm. Use the UP/DOWN button to adjust the address from 001 to 512, then press ENTER to set up.
  • Page 6 Dimmer Curve To select Dimmer Curve, press the ENTER button to confirm. Use the UP/DOWN button to select Linear, Square Law, Inverse Squ. or S-Curve. Once selected, press the ENTER button to store. Press the MENU button to return to the previous menu or let the unit idle for one minute to exit menu mode. Dimmer Curve Options: Linear: The increase in light intensity appears linear as the DMX value is increased.
  • Page 7 Fixture Test Enter MENU mode, select Fixture Test, press the ENTER button to confirm, use the UP/DOWN button to select Auto Test or Manual Test Auto Test To select Auto Test, press the ENTER button to confirm, the unit will run built-in programs to automatically test pan, tilt, dimmer, shutter, spe.fun and etc.
  • Page 8 Fixture Maintenance To select Fixture Maintenance, press the ENTER button to confirm. Use the UP/DOWN button to choose between Interval or Remain Time. For Interval, press the ENTER button to confirm; the interval time will be displayed. Press the MENU button to exit. For Remain Time, press the ENTER button to confirm; the remaining time will be displayed.

  • Page 9: Control By Universal Dmx Controller

    5. CONTROL BY UNIVERSAL DMX CONTROLLER 5.1 DMX512 Connection 1. DMX Cable Termination: At the last unit, the DMX cable must be terminated with a terminator. Solder a 120- ohm 1/4W resistor between pin 2 (DMX-) and pin 3 (DMX+) into a 3-pin XLR plug. Then, plug it into the DMX output of the last unit.
  • Page 10 5.2 Address Setting If you use a universal DMX controller to control the units, you have to set the DMX address from 1 to 512 so that the units can receive the DMX signal. Press the MENU button to enter menu mode, select DMX Functions, press the ENTER button to confirm, use the UP/DOWN button to select DMX Address, and press the ENTER button to confirm, the present address will blink the display, use the UP/DOWN button to adjust the address from 001 to 512, press the ENTER button to store.
  • Page 11 Channel Value Function 105-109 Open 110-124 Strobe Fast -> Slow 125-129 Open 130-144 Pulse, fast close slow open Fast -> slow Open 145-149 150-164 Pulse fast open slow close Fast -> Slow 165-169 Open 170-184 Dimmer macro burst pulse Fast -> Slow 185-189 Open 190-204...
  • Page 12 Channel Value Function 060-064 Powder blue 065-074 Light cyan 2 075-079 Light cyan 3 080-084 White 2 085-089 White 3 090-094 Light cyan 4 095-099 Cyan 2 100-104 Soft aquamarine 105-109 Green 1 110-114 Green 2 115-119 Green 3 120-124 Green 4 125-129 Green 5...
  • Page 13 Channel Value Function 152-167 Program 10 168-183 Program 11 184-199 Program 12 200-215 Program 13 216-231 Program 14 232-247 Program 15 248-255 Program 16 Colour of macro program individually controlled LEDs 000-017 White 1 018-024 Light pink 025-032 Deep pink 033-039 Pink 040-047...
  • Page 14 Channel Value Function Reset 000-009 Nothing 010-019 Reset all 020-029 Zoom / lens rotation reset 030-039 Pan / tilt reset 040-255 Nothing 44 Ch. Channel Value Function 000-255 0°-540° 000-255 Pan fine Tilt 000-255 0°-220° 000-255 Tilt fine Pan/Tilt speed 000-255 Fast ->...
  • Page 15 Channel Value Function 165-169 Open 170-184 Dimmer macro burst pulse Fast -> Slow 185-189 Open 190-204 Dimmer macro burst pulse Fast -> Slow 205-209 Open 210-224 Dimmer macro slow open slow close Fast -> Slow 225-229 Open 230-244 Dimmer macro burst little Fast ->...
  • Page 16 Channel Value Function Blue 4 000-255 0% -> 100% White 4 000-255 0% -> 100% Red 5 000-255 0% -> 100% Green 5 000-255 0% -> 100% Blue 5 000-255 0% -> 100% White 5 000-255 0% -> 100% Red 6 000-255 0% ->...
  • Page 17 Channel Value Function 080-084 White 2 085-089 White 3 090-094 Light cyan 4 095-099 Cyan 2 100-104 Soft aquamarine 105-109 Green 1 110-114 Green 2 115-119 Green 3 120-124 Green 4 125-129 Green 5 130-134 Yellow 1 135-139 Yellow 2 140-144 Yellow 3 145-149...
  • Page 18 Channel Value Function 216-231 Program 14 232-247 Program 15 248-255 Program 16 Colour of macro program individually controlled LEDs 000-017 White 1 018-024 Light pink 025-032 Deep pink 033-039 Pink 040-047 Lavender 048-054 Light cyan 1 055-061 Light sky blue 062-069 Deep sky blue 070-076...

  • Page 19: Troubleshooting

    6. TROUBLESHOOTING During operation, you might encounter some common problems. Here are suggestions for easy troubleshooting: A. The unit does not work, no light, and the fan does not operate: 1. Check the power connection and the main fuse. 2. Measure the mains voltage on the main connector. B.
  • Page 22 ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE BSL B.V. SPAARPOT 19 | 5667 KV GELDROP | THE NETHERLANDS | +31 (0)40 750 24 95 WWW.BSL-LIGHTING.COM | WWW.LIGHT-INC.EU...
