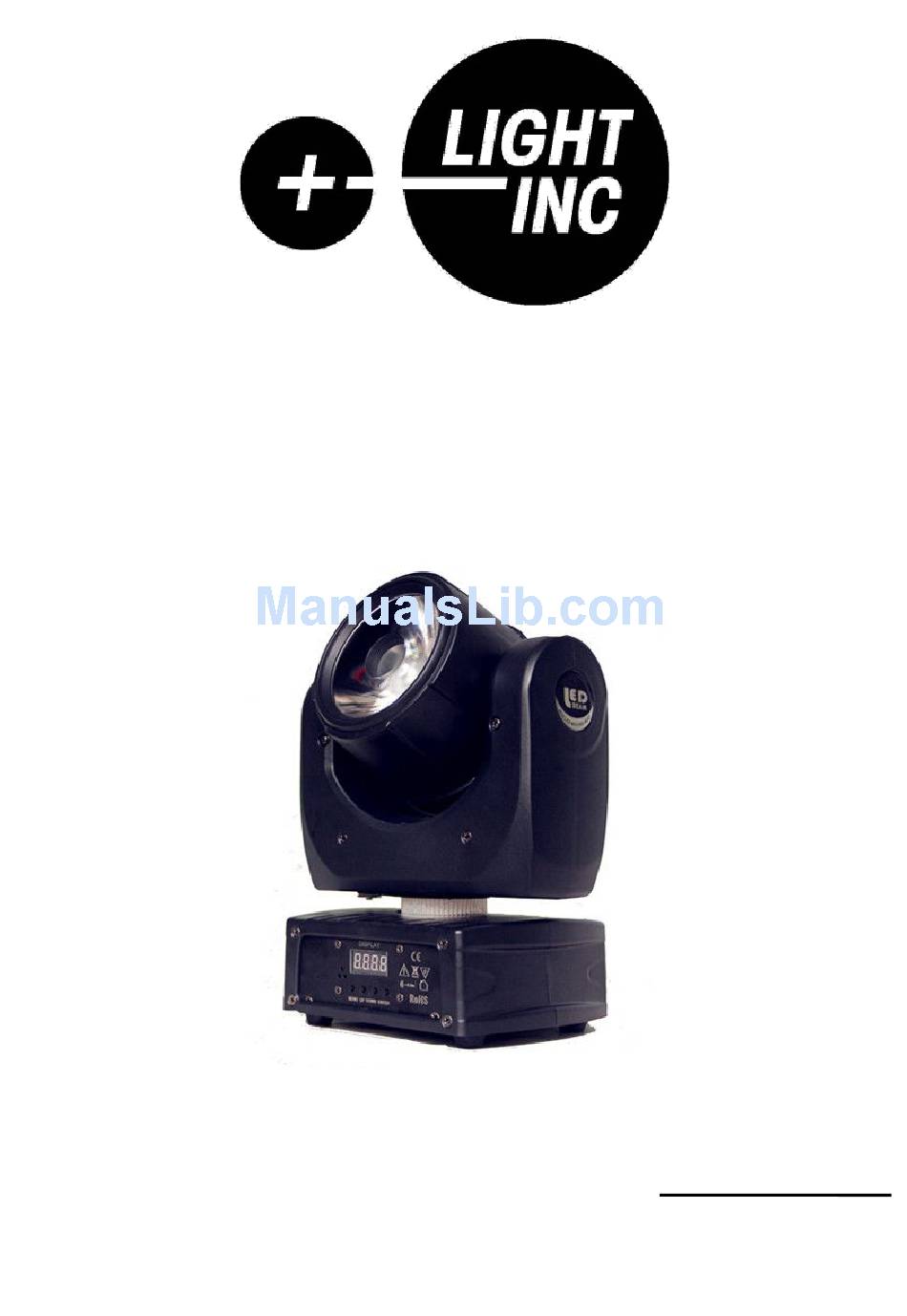

Page 1: User Manual
MH-60 LED Beam User manual Please read the instructions carefully before use... -
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Safety Instructions..................... 2 2. Technical Specifications...................5 3. How To Control The Unit..................6 4. Trouble shooting......................9 5. Fixture Cleaning.......................11 statement product well capability intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included guarantee,... - Page 3 Before operating, ensure that the voltage and frequency of power supply match the power requirements of the unit. It’s important to ground the yellow/green conductor to earth in order to avoid electric shock. The unit is for indoor use only. Use only in a dry location. The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent surfaces.
- Page 4 To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture. DO NOT open the unit within five minutes after switching off. The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.
-
Page 5: Technical Specifications
2. Technical Specifications Light Sources: 60w osram led Beam Angle:4.5° Power Voltage: AC 100-240V, 50/60Hz Power consumption : 80w Dimension: 21*15*27cm Packing: 480*320*440mm (2pcs) Net Weight: 4Kgs;Gross Weight: 5Kgs Control DMX Channel: 11/16 Channel Control Modes: DMX512,auto run,master-slave,music Pan/Tilt Pan/Tilt: 540°/ 270° Pan/Tilt Resolution: 8/16 bit Construction Display: Digital Display... -
Page 6: How To Control The Unit
3. How To Control The Unit The DMX512 is widely used in intelligent lighting control,with a DMX 512 controller.connect several lights together,dmx in and dmx out, 3 pin XLR connectors: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal Display: MENU To select the programming functions... - Page 7 Menu Addr d001-d512 Set dmx add CHSE CH-11 11 CH Mode CH-16 16 CH Mode Node DMX mode FAST Fast speed SLOU Slow speed SOUN Sound mode SENS SE0-SE99 Mic sensitivity rotating Pan forward Pan inversed rotate TILT rotate Tilt forward rotate Tilt inversed BALA...
- Page 8 DMX channel 11/16 Channels 16 DMX channels mode Function Detail 0-255 Value increase,rotate forward; value decrease,rotate inversed 0-255 Value increase,rotate forward; value fine-tuning decrease,rotate inversed Tilt 0-255 Value increase,rotate forward; value decrease,rotate inversed Tilt fine-tuning 0-255 Value increase,rotate forward; value decrease,rotate inversed Motor speed 0-255 :pan,Motor working speed...
-
Page 9: Trouble Shooting
245-255,Music mode Built-in effect Built-in effect speed ajustable speed set Reset 150-200;rest DMX 11 Channels Mode Function Detail 0-255 Value increase,rotate forward; value decrease,rotate inversed 0-255 Value increase,rotate forward; value fine-tuning decrease,rotate inversed Tilt 0-255 Value increase,rotate forward; value decrease,rotate inversed Tilt fine-tuning 0-255... - Page 10 some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2. Measure the mains voltage on the main connector. 3. Check the power on LED. B.
-
Page 11: Fixture Cleaning
5. Fixture Cleaning The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics. Clean with soft cloth using normal glass cleaning fluid.
