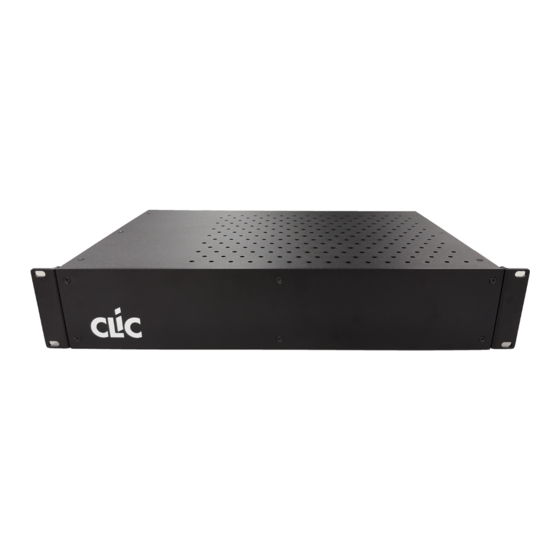

- Page 1 Cardinal CLiC HC-198 Standalone Controller Installation Manual Rev. A...
-
Page 2: Important Safety Instructions
PRECAUTIONS IMPORTANT SAFETY INSTRUCTIONS Read Instructions: Read all safety and operating instructions before using the device. Retain Instructions: Keep safety and operating instructions for future reference. Heed Warnings: Adhere to all warnings on the device and in the operating instructions. Follow Instructions: Follow operating instructions and installation instructions. -
Page 3: Fcc Information To Users
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications not expressly approved by Cardinal IG Company could void the user’s authority to operate the equipment. Page 3 of 14... -
Page 4: Table Of Contents
CONTENTS TABLE OF CONTENTS Important Safety Instructions ..........................2 FCC Information to Users............................3 Overview................................5 Important Notes..............................5 Compatibility................................5 What’s In The Box?...............................5 Unpacking and Inspection ............................6 HC-198 Standalone Controller Layout ........................7 Wire Connection Terminals ..........................7 Trigger Input.................................8 Site Wiring and Preparation..........................9 System Layout Examples.............................11 Specifications ..............................12 Common Symptoms and Solutions ........................13 Contacting Us ..............................14... -
Page 5: Overview
CHAPTER 1 - INTRODUCTION OVERVIEW This guide pertains to the Cardinal CLiC HC-198 Standalone Controller. This device and the associated CLiC Glass Panel(s) have been designed as a NEC Class-3 electrical system. The purpose of this document is to provide guidance on how to set up and install the device in a commercial, industrial, or residential environment. -
Page 6: Unpacking And Inspection
UNPACKING AND INSPECTION After opening the HC-198 Standalone Controller package, save all the packaging material in case you ever need to ship the unit. Thoroughly inspect and make sure the device is in good condition and there is no visible damage. If you have any doubt about the product’s integrity, please contact your reseller or an authorized support center immediately. -
Page 7: Hc-198 Standalone Controller Layout
CHAPTER 2 - FEATURES HC-198 STANDALONE CONTROLLER LAYOUT WIRE CONNECTION TERMINALS Note: Each Glass Out operates independently. 1. Channel Output Status LEDs Red LED Green LED Description Glass State is Clear, as determined by Local Lockout or Trigger Glass State is Private, as determined by Lock Lockout or Trigger Flashing Flashing Error condition. -
Page 8: Trigger Input
4. GLASS OUT This is the Class 3 output used to connect the CLiC Glass panel. Both connections on the glass out must be connected to the CLiC Glass panel. There is no polarity in these connections. Shorting the outputs while powered could damage the HC-198 Standalone Controller and should be avoided. -
Page 9: Site Wiring And Preparation
CHAPTER 3 – INSTALLATION SITE WIRING AND PREPARATION Wiring from the HC-198 Standalone Controller to the CLiC Glass panel(s) should be run prior to the CLiC Glass panel installation. All wiring must be performed in accordance with the applicable building codes and electrical wiring requirements as denoted for Class 3 systems of the National Electric Code (NEC). - Page 10 IMPORTANT: R EMOVAL OF PROTECTIVE FILMS CAN PRODUCE ELECTRIC SHOCKS AND SPARKS WHICH COULD CAUSE PRIOR THE CONNECTION DAMAGE TO CONNECTED ELECTRONICS LL PROTECTIVE FILMS MUST BE REMOVED OF THE HC-198 S TANDALONE ONTROLLER IMPORTANT: T O AVOID DAMAGE TO YOUR SMART GLASS PRODUCT DO NOT PLACE OUTDOOR USE FURNISHINGS WITHIN CLOSE PROXIMITY TO POOLS...
-
Page 11: System Layout Examples
SYSTEM LAYOUT EXAMPLES Please review the following diagrams for example wiring scenarios: Note: 3 panels are shown below, but up to 8 can be connected to a single HC-198 Standalone Controller Single Switch for all channels Individual Switch per channel Multiple channels with automation control Page 11 of 14... -
Page 12: Specifications
SPECIFICATIONS HC-198 Standalone Controller Channel Output 75VAC Max, 1.1 Amps, Capacitive Load, Class 3 AC Voltage Power Output Circuit Note that the outputs of this device are considered a power limited Class 3 circuit, in accordance with Article 725 of the National Electrical Code NFPA 70. Input Trigger Type Open Collector;... -
Page 13: Common Symptoms And Solutions
If you are experiencing problems with your HC-198 Standalone Controller or CLiC Glass panel, please read the information below before contacting technical support. If you continue to experience problems, see the next chapter for more information on contacting Cardinal IG Company technical support. Symptom Troubleshooting Steps 1. -
Page 14: Contacting Us
Contacting Technical Support At Cardinal IG Company, customer service and satisfaction are two of our core missions. If you are experiencing any problems or have a question regarding your CLiC products, please contact our technical support department by email at: CLiCsupport@cardinalcorp.com...
