Imported by Super Amart Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Super Amart Ewing Road, Customer Service Free call 1800 351 084

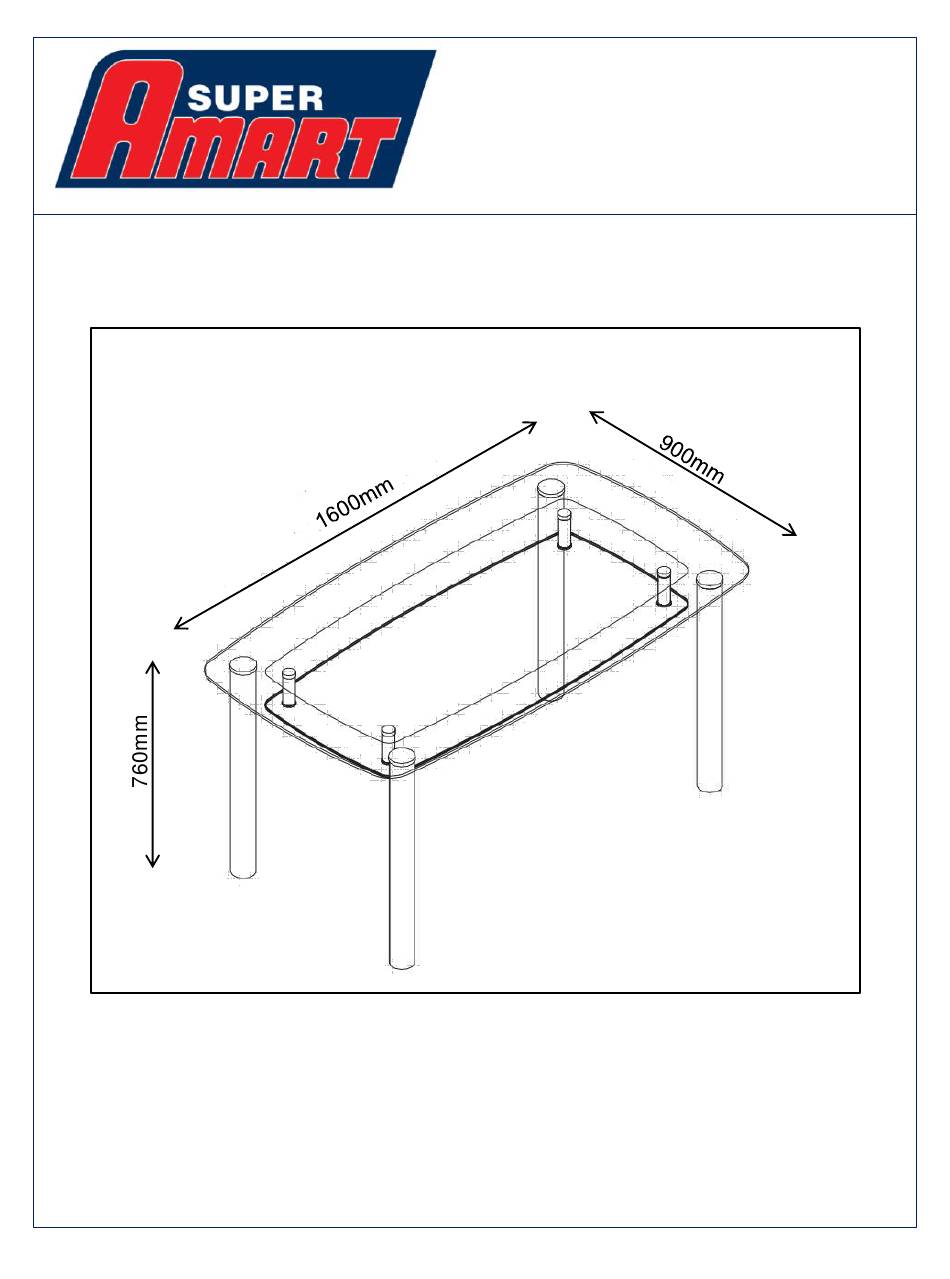

ASSEMBLY INSTRUCTION

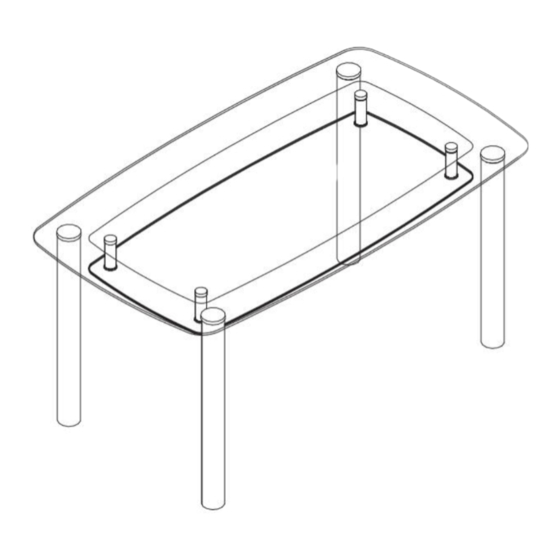

TORELLI 1600 DINING TABLE
ITEM CODE 48723
Imported by Super Amart Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Super Amart Ewing Road, Customer Service Free call 1800 351 084
1
ITEM CODE 48723
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Super Amart TORELLI 1600
Summary of Contents for Super Amart TORELLI 1600
- Page 1 Imported by Super Amart Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Super Amart Ewing Road, Customer Service Free call 1800 351 084 Imported by Super Amart Pty Ltd, Qld, Brisbane Australia.
- Page 2 PRE-ASSEMBLY PREPARATION Before you start: Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product Take care when lifting. Product should be assembled as near as possible to the point of use Ensure that you have all required contents for complete assembly Always read the assembly instructions carefully before beginning assembly.
- Page 3 PARTS LIST TABLE TOP X1 TABLE SHELF X1 TABLE LEG X4 CONNECTION ROUND TUBE X4 A.ROD M8X125mm B.CAP Ø43mm C.FLAT WASHER Ø20mm D.FLAT WASHER M8 4PCS 4PCS 4PCS 4PCS E.HEX CAP NUT M8 F.SPANNER G.ROD M10X730mm H.FLAT WASHER M10 4PCS 4PCS 4PCS I.SPRING WASHER M10...
- Page 4 STEP 1: Screw rod to table top .Do not fasten it.Then put connection round tube and cap on it. STEP 2:Assemble table shelf to table top (after Step 1)with flat washer and hex cap nut by using spanner ITEM CODE 48723...
- Page 5 STEP 3: Screw rod to table.Do not fasten it. STEP 4: Assemble table leg to table with flat washer /spring washer and screw nut by using spanner ITEM CODE 48723...
- Page 6 STEP 5: Put the foot on table leg.Then using two people and carefully turn table upright. ASSEMBLY IS COMPLETE ITEM CODE 48723...
- Page 7 CARE AND MAINTENANCE If the glass is chipped or broken,stop using the product and consult the place of purchase. WARNING: Do not place very hot or cold items on the glass surfaces unless adequately thick table mats are used to prevent such items from coming in contact with the glass.
