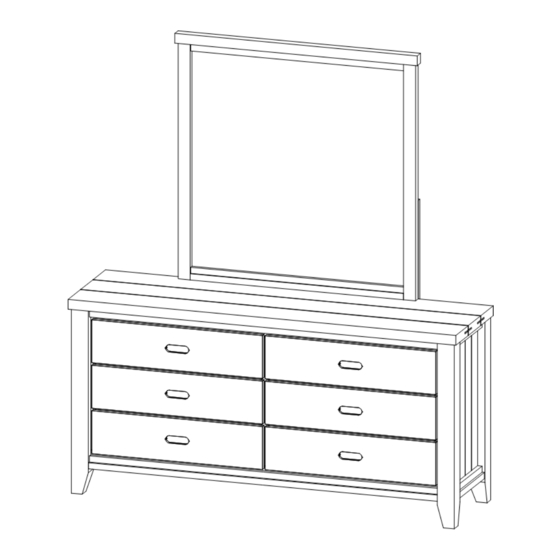

6 drawer dresser with mirror

Advertisement

Imported by Super A-mart Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Super A-mart Ewing Road, Customer Service Free call 1800 351 084

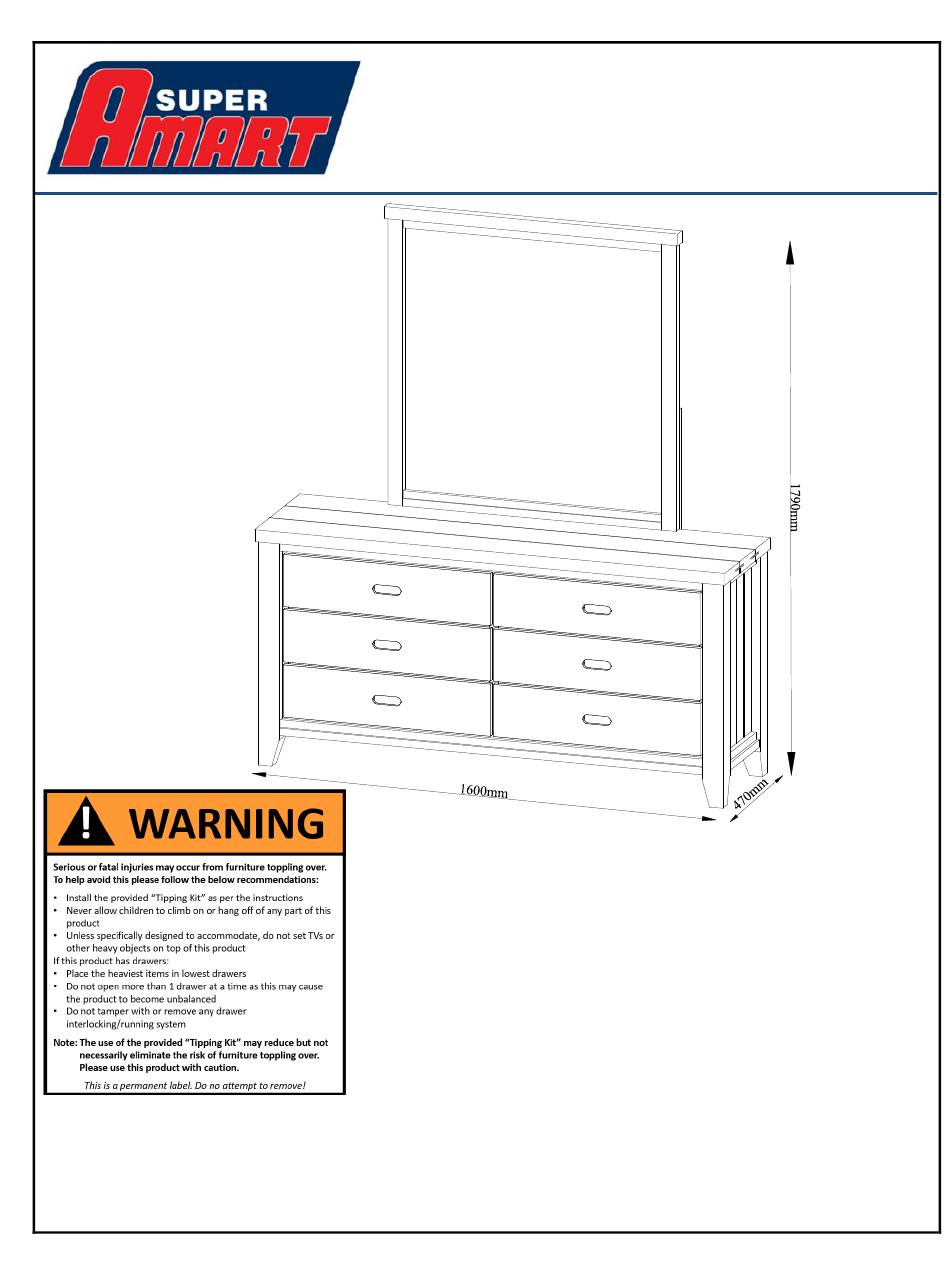

ASSEMBLY INSTRUCTION
LE FRANSCHHEOK 6 DRAWER DRESSER WITH MIRROR
ITEM CODE 54391
Imported by Super A-mart Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Super A-mart Ewing Road, Customer Service Free call 1800 351 084
1
54391

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LE FRANSCHHEOK 54391 and is the answer not in the manual?

Questions and answers

Summary of Contents for Super Amart LE FRANSCHHEOK 54391

  • Page 1 ASSEMBLY INSTRUCTION LE FRANSCHHEOK 6 DRAWER DRESSER WITH MIRROR ITEM CODE 54391 Imported by Super A-mart Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Super A-mart Ewing Road, Customer Service Free call 1800 351 084 Imported by Super A-mart Pty Ltd, Qld, Brisbane Australia.
  • Page 2 PRE-ASSEMBLY PREPARATION Before you start: Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product Take care when lifting. Product should be assembled as near as possible to the point of use Ensure that you have all required contents for complete assembly Always read the assembly instructions carefully before beginning assembly.
  • Page 3 PARTS LIST DRESSER MIRROR SUPPORT BAR Bolt M6x40 b. Allen key M4 c. Flat Washer Φ6.5xΦ19 d. Lock Washer Φ6.5xΦ9 12pcs 12pcs 12pcs 54391...
  • Page 4 ITEMS REQUIRED a. Bolt M6x40 b. Allen key M4 c. Flat Washer Φ6.5xΦ19 d. Lock Washer Φ6.5xΦ9 6pcs 6pcs 6pcs • Attach Support Bar ( 3 ) to Dresser (1) using bolts (a) with flat washer (c) and lock washer (d). •...
  • Page 5 ITEMS REQUIRED b. Bolt M6x40 b. Allen key M4 c. Flat Washer Φ6.5xΦ19 d. Lock Washer Φ6.5xΦ9 6pcs 6pcs 6pcs • Attach mirror (2) to Support Bar (3) with bolts (b) and Flat washer (c) and lock washer (d). • Tighten with Allen Key (b). 54391...
  • Page 6 SAFETY BRACKETS INSTRUCTIONS 1. Attach one bracket to the wall, with the long screws as shown. Make sure to attach the bracket into a stud. If mounting onto brick or masonry, you will need to acquire wall anchors. 2. Attach a bracket to the furniture frame under the top with the short screws provided.
  • Page 7 ASSEMBLY IS COMPLETE 54391...
  • Page 8 Care label for timber items • A multi-step finish is applied to all our furniture, but all wood comes from nature. Because of this, there will be natural variations in surface texture and grain like knots, mineral streaks and sap runs that may affect the finish. These differences in character are not defects, but distinctions that make each piece of furniture unique.
