RusAutomation SANA200 Operating Manual

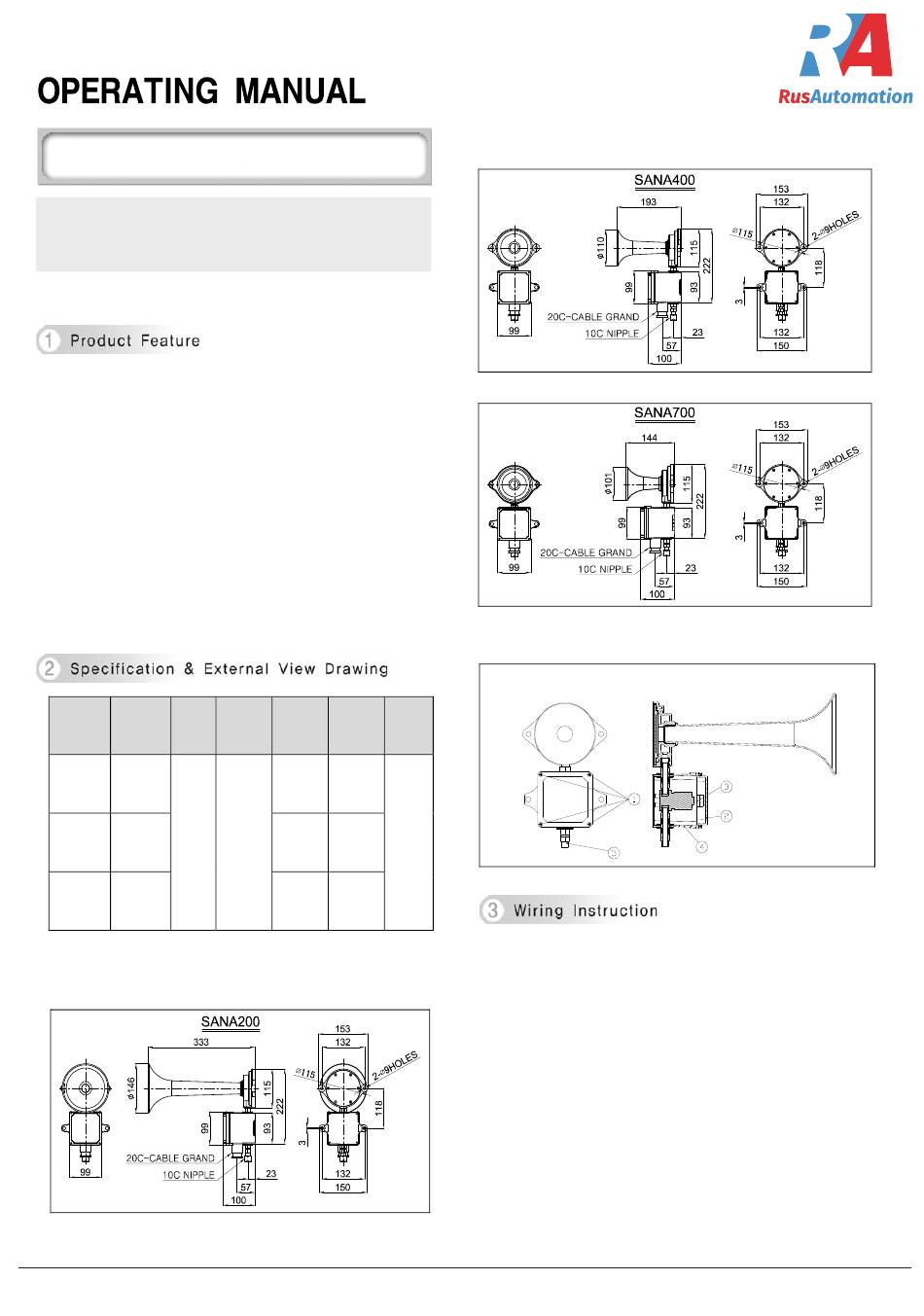

SANA200/400/700
OPERATING MANUAL
AIR HORN WITH SOLENOID VALVE BOX
Please read this manual carefully before installing this product
for safe and long use.
▪ A horn speaker generating high volume through tympanum
which use compressed air as power.
▪ Adopting long durable special tympanum and valves which use
small compressed air
▪ The Suitability for urgent call, emergency alarm and etc for
Engine room or pumping station.
▪ In case of using in a small space, it is possible to adjust sound
pressure by installing reducing-valve separately.
▪ Standard body color: MUNSELL NO. 7.5BG 7/2 (BLUE GREEN)
RED, BLACK
▪ Material of HORN: PC
▪ SOLENOID VALVE: ABS
▪ Protection Class: IP56
▪ Certificate : KIMM
Sound
Model Frequency
level
200~300
SANA200
Hz
130
400~600
±3dB
SANA400
Hz
700~800
SANA700
Hz
ООО "РусАвтоматизация"
Air
Voltage Current Color
pressure
DC24V 0.488A
5~7
kg/㎠
AC110V 0.111A
7.5BG
AC220V 0.055A
454010 Россия,
тел./факс +7(351)211 64 57
R
BK
Please read product structure and below mentioned instruction
carefully in order to make suitable operation.
▪ Terminal is already positioned on valve box cover inside air
horn. Unscrew bolts ① in product cover and separate cover ②.
▪ In case of the product using DC power source, negative(-)
polarity should be connected with black line at terminal.
▪ It can cause the damage owing to infiltration of moisture or
dust if products are kept exposure outdoor without any
sealing of cable
▪ The Entry of air supply ⑤ is assembled by using air exclusive
house. Please prevent the leakage of air with sealing material
such as Teflon tape or silicon when assembled. Or, it cause
malfunction or inoperable status.
▪ It may be damaged if moisture and dust penetrate into the
enclosure when it is placed on outdoor without sealing of the air
inlet.
