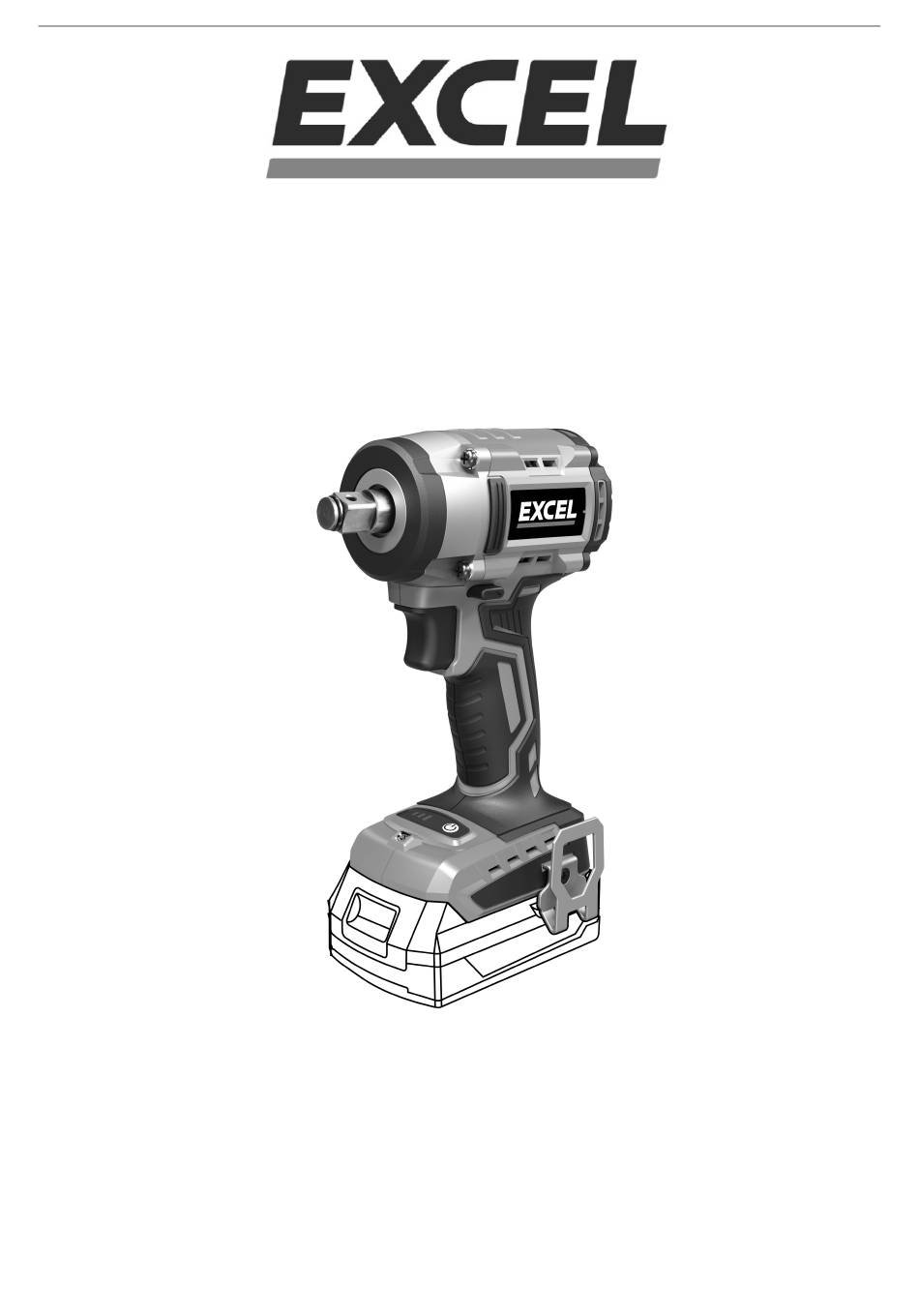

- Page 1 Original Instructions Brushless Compact Impact Wrench 18V 30366 INSTRUCTION MANUAL...
-
Page 2: Description Of The Symbols
Original Instructions DESCRIPTION OF THE SYMBOLS Read instructions carefully before any use Complies with relevant European regulations The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. -
Page 3: General Power Tool Safety Warnings
Original Instructions GENERAL POWER TOOL SAFETY WARNINGS WARNING Read all safety warnings, instruction, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE. The term "power tool"... - Page 4 Original Instructions e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
-
Page 5: Special Safety Instructions
Original Instructions contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. - Page 6 Original Instructions Some examples of these chemicals are: - lead from lead-based paints, - crystalline silica from bricks and cement and other masonry products, and - arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.
- Page 7 Original Instructions EXTRA SAFETY REGULATIONS CONCERNING BATTERY CHARGER This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 8 Original Instructions Never insert any objects into the charger’s air vents. Electric shock or damage to the battery charger may result. Disconnect the charger from the outlet before attempting any cleaning. This will reduce the risk of electric shock. Removing the battery pack will not reduce this risk. Never recharger a fully charged battery cartridge.
-
Page 9: Technical Specifications
Original Instructions TECHNICAL SPECIFICATIONS 18V Li-ion brushless compact impact Product description wrench Rated voltage of battery Rated Speed 0-1000/0-1800/0-2500 min-1 Impact Frequency 0-1300/0-2800/0-3400 bpm Chuck 1/2” Max torque 350 N.m Sound pressure level L = 3dB(A)) 99.62 dB Sound power level L = 3dB(A)) 110.62 dB Level of vibration a... - Page 10 Original Instructions Before using the equipment Battery charger (Fig.1) The lithium-ion battery can be charged at any time and will not develop a “memory” when charged after only a partial discharge. It is not necessary to run down the battery pack charge before recharging.
- Page 11 Original Instructions Fig. 2 OPERATION Selecting correct socket The socket is not supplied with the product. Use 1/2” quick-connect hex-drive chuck. Always use the correct size socket for bolts and nuts. An incorrect size socket will result in inaccurate and inconsistent fastening torque and /or damage to the bolt or nut. Refer to accessories section for socket size.
- Page 12 Original Instructions Fig.4 Direction of rotation Direction of rotation is controlled by the direction of rotation selector located above the switch trigger. Clockwise rotation(Fig.5): Right: To select forward rotation, release the on/off switch and push the forward/reverse lever to the left side of the tool.
- Page 13 Original Instructions Variable speed This tool has a variable speed switch that delivers higher speed and torque with increased trigger pressure. Speed is controlled by the amount of switch trigger depression. Speed controller You can select the speed by enter the speed controller. LED light The LED work-light can light prior to motor running if you press the switch lightly, which keep the work area to be lighted for checking clearly at first, and it lights also during your operation.
- Page 14 Original Instructions Disposal Electronic devices are recyclable waste and must not be disposed of in the household waste. At the end of its service life, dispose of the product according to the relevant statutory regulations. Remove any rechargeable battery, if necessary, and dispose of it separately from the product.
- Page 15 Original Instructions Exceltools.co.uk Sales@exceltools.co.uk...
