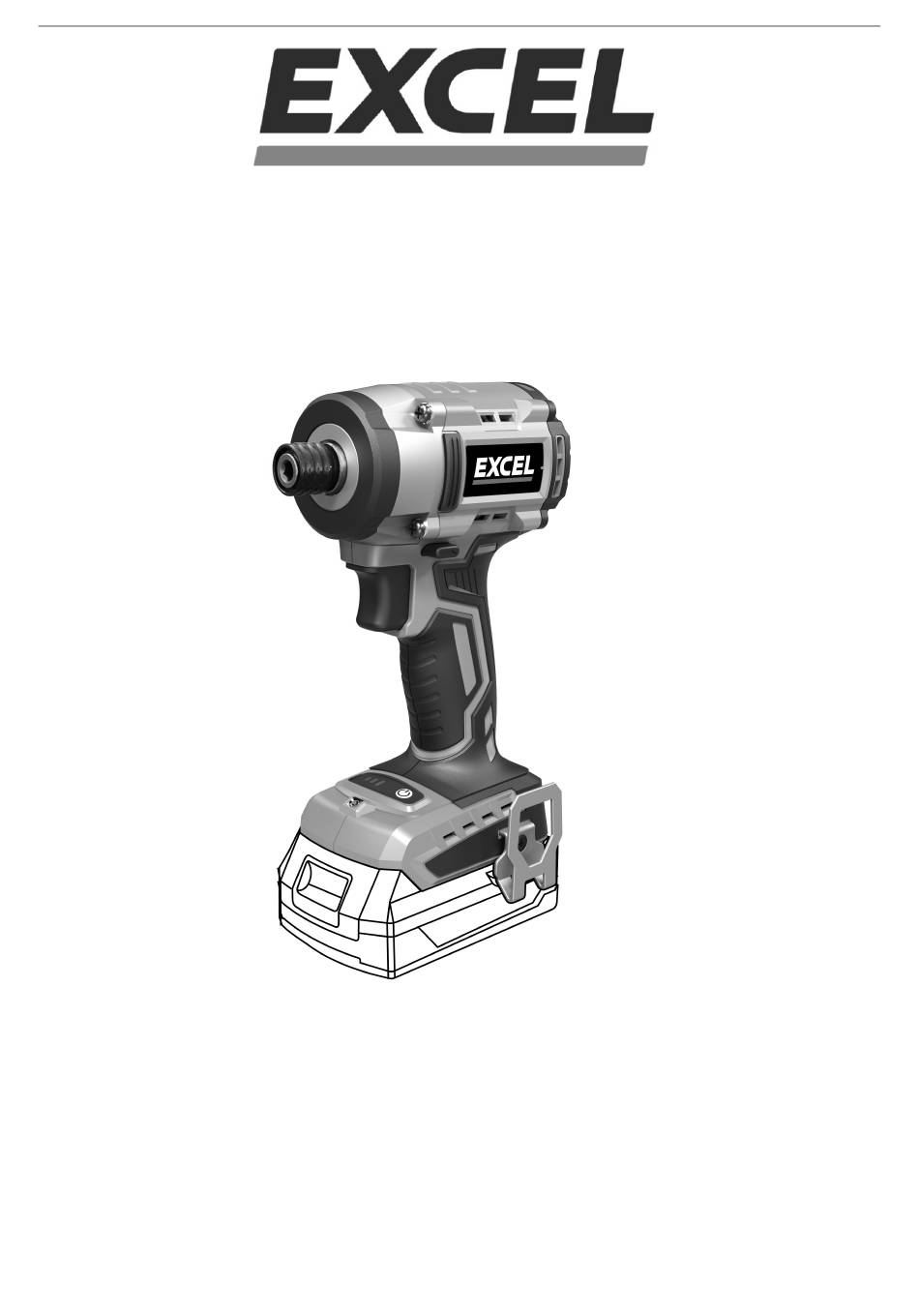

- Page 1 Original Instructions CORDLESS IMPACT DRIVER 18V 11748 INSTRUCTION MANUAL...
-
Page 2: Description Of The Symbols
Original Instructions DESCRIPTION OF THE SYMBOLS Read instructions carefully before any use Complies with relevant European regulations The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. -
Page 3: General Power Tool Safety Warnings
Original Instructions GENERAL POWER TOOL SAFETY WARNINGS WARNING Read all safety warnings, instruction, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE. The term "power tool"... - Page 4 Original Instructions d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
-
Page 5: Special Safety Instructions
Original Instructions cause burns or a fire. d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. e) Do not use a battery pack or tool that is damaged or modified. - Page 6 Original Instructions Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: - lead from lead-based paints, - crystalline silica from bricks and cement and other masonry products, and - arsenic and chromium from chemically-treated lumber.
- Page 7 Original Instructions The battery is to be disposed of safely. EXTRA SAFETY REGULATIONS CONCERNING BATTERY CHARGER This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 8: Intended Use
Original Instructions intended to use on a flat, stable surface(i.e. table top, bench top) Never attempt to connect two chargers together. Never insert any objects into the charger’s air vents. Electric shock or damage to the battery charger may result. Disconnect the charger from the outlet before attempting any cleaning. -
Page 9: Technical Specifications
Original Instructions TECHNICAL SPECIFICATIONS Product description 18V Li-ion impact driver Rated voltage of battery Rated Speed 0-2200rpm Impact Frequency 0-2800t/min Chuck 1/4” Max torque 160 N.m Sound pressure level L =3dB(A)) 83 dB(A) Sound power level L =3dB(A)) 94 dB(A) Level of vibration a (K=1.5m/s 4,825 m/s... - Page 10 Original Instructions Before using the equipment Battery charger (Fig.1) The lithium-ion battery can be charged at any time and will not develop a “memory” when charged after only a partial discharge. It is not necessary to run down the battery pack charge before recharging.
- Page 11 Original Instructions Fig. 2 OPERATION Install the bits Due to the impact mechanism you should use only bits, which are designed for operation with impact screwdrivers of greater or equal torque than the torque of the product. Installation must be carried out when the battery is removed from the product to prevent injury. The product cannot be used with standard drill bits.
- Page 12 Original Instructions Fig.5 Fig.6 3. To lock the on/off switch (1), press the forward / reverse rotation control switch through to the centre position (Fig 7). Operation tips The working procedure is divided into two steps: Screwing in and tightening (impact mechanism in action).
- Page 13 Original Instructions Switching the product on/off After tightening the screw/nut, the product’s impact mechanism starts to “bump”. The maximum impact duration should not exceed 1-2 seconds. The product is equipped with a work light to illuminate the work area. The work light turns on when the product is in operation, and turns off automatically when the product is off.
