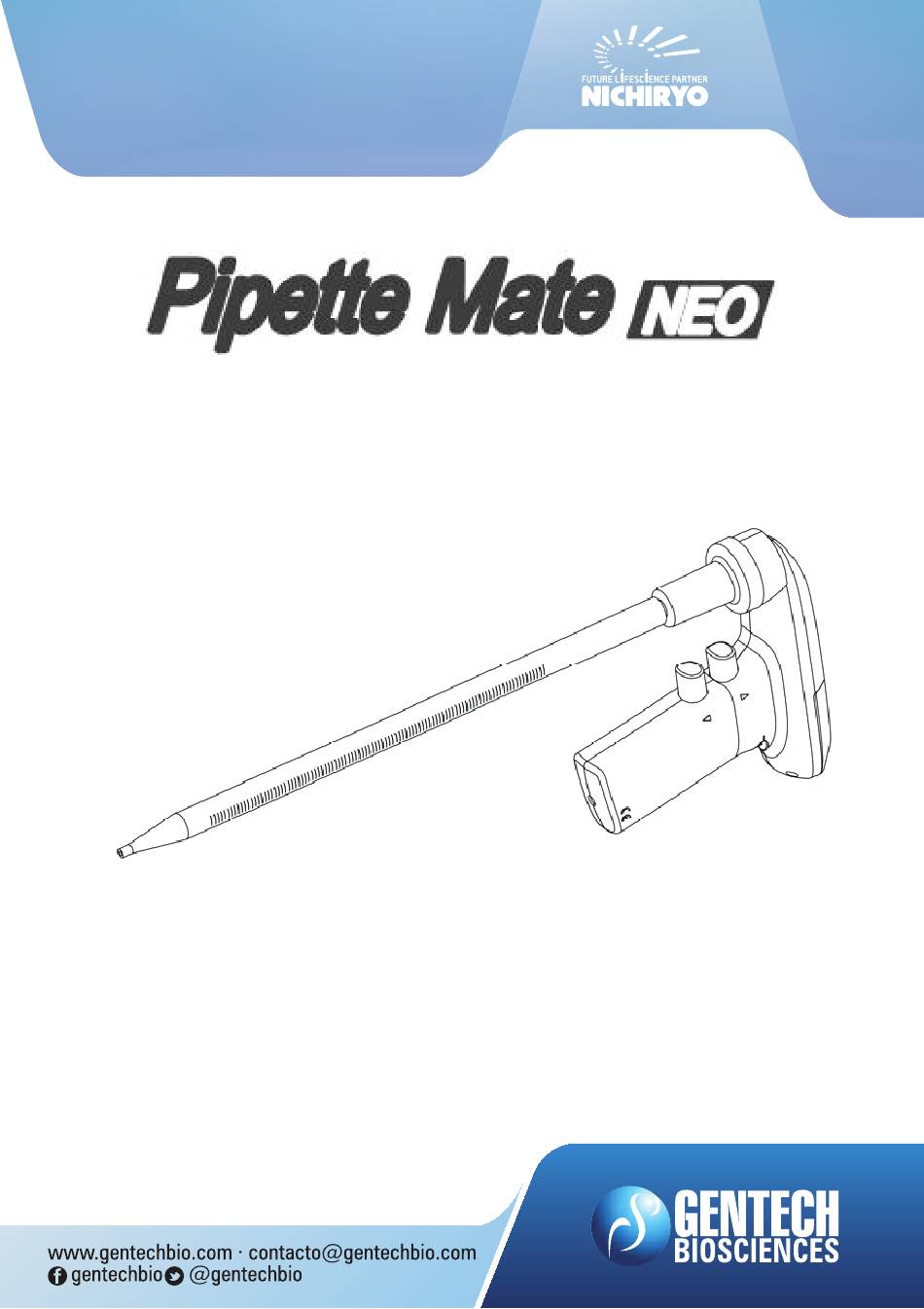

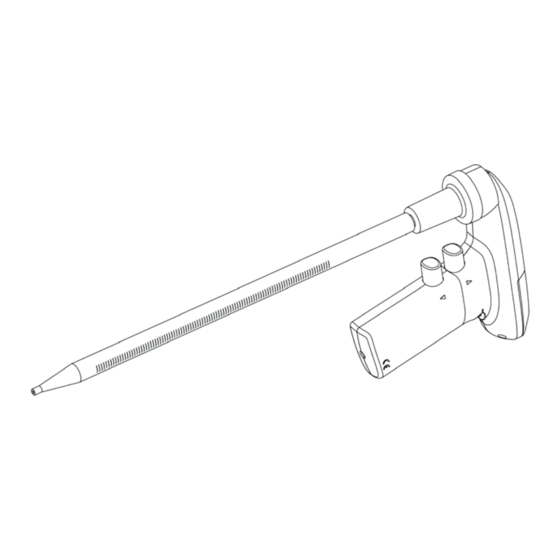

- Page 1 Ayudante de pipeteo electrónico Pipettemate Neo Pipette Controller for liquid handling User’s Manual ● Thank you very much for purchasing Pipette Mate NEO. ● Please read this manual carefully before using.
- Page 2 Ayudante de pipeteo electrónico Pipettemate Neo Features Light (167g) weight and ergonomic design Autoclavable nose cone, pipette holder and filter (121°C, 20min) Compatible with glass and plastic pipettes from 1-100ml Continuous speed control wheel which can be fixed designated speed Long life rechargeable Lithium Ion battery Blow-out and Gravity dispense selection Self-stand design...
- Page 3 Ayudante de pipeteo electrónico Pipettemate Neo Please read following prior to use for your safety and correct usage. CAUTION Be sure to observe the following instructions for using Pipette Mate NEO properly and safely. If user misuses “Pipette Mate NEO”, or di sregards the following instructions, it may result in injury to the user or/and other persons or physical damage to pipette or/and other equipment.
- Page 4 Ayudante de pipeteo electrónico Pipettemate Neo 18. Do not incinerate the Lithium battery or expose it to excessive heat. 19. Do not short-circuit, puncture, crush, disassemble, damage, force, over-discharge (reversal) or modify the battery. 20. Do not expose the battery to water or moisture. 21.
-
Page 5: Table Of Contents
Ayudante de pipeteo electrónico Pipettemate Neo Content 1. General descriptions ······························· 5 2. Operating procedure······························· 6 3. How to recharge the battery ····················· 7 4. Self-inverted design································ 7 5. How to replace the battery ······················· 8 6. How to replace filter and tube holder ·········· 8 7. -
Page 6: General Descriptions
Ayudante de pipeteo electrónico Pipettemate Neo 1. General description 10. Battery Cover 11. Battery Indicator 9. Lithium Ion Battery 12. Air Vent 8. Speed Control Wheel 7. Screws 6. Blow-out/Gravity Dispense Switch 5.Upper Push Button 13. Filter 4. Lower Push Button 14. -
Page 7: Operating Procedure
Ayudante de pipeteo electrónico Pipettemate Neo 2. Operating procedure To Aspirate: Carefully hold the pipette and insert it securely into the nose cone silicone pipette holder(Fig.-A). Select the pipetting speed by rotate the speed control wheel(Fig.-C). Press down the upper push button(Fig.-B). Note: Do not dispense/aspirate more than maximum volume of tips. -
Page 8: How To Recharge The Battery
Ayudante de pipeteo electrónico Pipettemate Neo 3. How to recharge the battery Please charge the Lithium battery 4 hours before first-time operation. When the battery indicator(LED) turns red (low battery), follow the steps below to recharge the battery. 1) Plug the DC-in jack of charging adaptor to the DC-in socket in the base of the unit. -
Page 9: How To Replace The Battery
Ayudante de pipeteo electrónico Pipettemate Neo 5. How to replace the battery Lithium-Ion Battery can be changed by following procedures 1) Unscrew two screws from the bottom part of battery holder 2) Lift the battery cover 3) Disconnect the battery’s connector, and take out the battery. 4) When placing the battery, just follo w reverse procedure from 3) to 1). -
Page 10: Autoclave
Ayudante de pipeteo electrónico Pipettemate Neo 7. Autoclave Nose cone, Silicon Pipette Holder and Filt er are autoclavable. When autoclaving, carry on at condition of 121°C for 20 minutes based on the procedure mentioned below. Please follow the instructions mentioned on “6. How to replace filter and tube holder”... -
Page 11: Part List
Ayudante de pipeteo electrónico Pipettemate Neo 10. Part list Description Code Qt’y Battery cover 00-PM-N003 Nose Cone 00-PM-N005 Silicon Pipette Holder 00-PM-N013 Battery 00-PM-N018 Charging Adaptor 00-PM-N024 0.2um filter 00-PM-N100 11. Troubleshooting Symptom Cause Remedy Aspiration speed Blocked filter Filter replacement Broken filter Low battery Battery charge... -
Page 12: Warranty
Ayudante de pipeteo electrónico Pipettemate Neo 12. Warranty The Pipette Mate NEOs are covered by a warranty for one year against defects in materials and workmanship. This period begins from the date of purchase, and within this period all defective parts will be replaced at no charge by manufacturer. The warranty does not cover defects caused by excessive wear and tear or damage due to shipping, accident, abuse, misuse, problems with electrical power, or usage not in accordance with product instructions, or if other than original spare parts...
