Cura1 2703 Quick Start Manual

2703 - Wireless Output
Falls Monitor

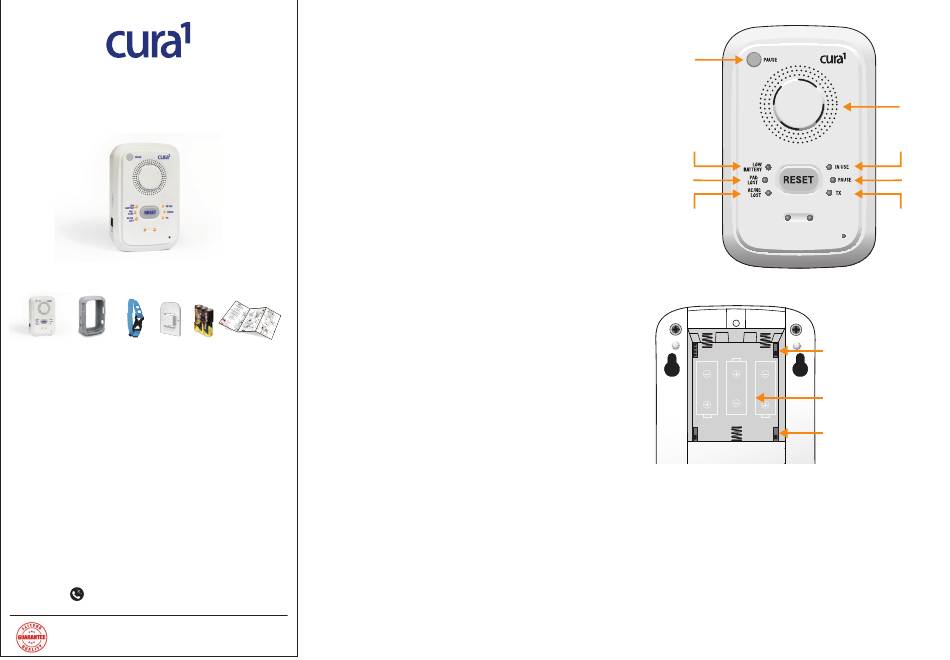

What's in the box?
2703 Wireless 2742 Soft 2699 3504
Output Falls Monitor Fixing Mounting Batteries
Monitor Cover Strap Bracket
Compatible & Optional Accessories
All Premium bed / chair pads & floor mats.
All Universal bed / chair pads & floor mats (if using a USB to RJ10
connector cable)
2406 Plug Pack 6 Vdc, 3501 ActiveCare LCD Pager, 3508 LED Pager,
2561 Wireless Indicator Light, 3504 Mounting Bracket,
2742 Soft Monitor Cover, 2699 Fixing Strap
Nurse Call Cables: 2643, 2646, 2493, 2461, 2460
cura
1
10 Gray Street, Kilkenny South Australia 5009
www.cura1.com
1300-12-CARE (2273)
All our products are supplied with a full warranty and are guaranteed
to be free from defects in material and workmanship.
OPERATION
Volume Adjustment
There are 4 volume settings (including silent). Hold the
RESET button while pressing PAUSE to cycle between these
settings.
Pad / Mat Alarms
When in an alarm state, the monitor's RESET button will flash
and an audible alarm will sound (unless the volume is set to
silent).
Clearing an Alarm
Press the RESET button on the monitor.
If a bed or chair pad is being monitored, the monitor alarm
will automatically reset when the monitored person returns to
the bed or chair (pressure is re-applied to the pad).
Pad Lost
When the connection to a pad or mat is lost the "PAD LOST"
LED will flash and an audible chirp will sound every second.
Check that the cable connections between the pad or mat
and the monitor are secure. When connection is
3 X AA QuickStart
re-established the LED and audible alert will cease.
User Guide
Pause
Pressing the PAUSE button will supress the monitor's alarm
for approx 45 seconds. If the monitored person leaves the
bed or chair during that time then the monitor will not alarm.
The monitor will be re-armed when the monitored person
returns to their bed or chair (pressure is applied to the bed or
chair pad again).
Low Battery
When the LOW BATTERY LED blinks and chirps (every 3
seconds), its time to replace the batteries in the monitor.
AC/NC Lost
When either the external power or a nurse call cable is
disconnected then the monitor's AC/NC LOST LED will blink
and a chirp will sound every 3 seconds.
MORE INFORMATION
UM-050
For detailed information of all 2703 monitor functions please
refer to the full technical manual for this product or contact
your cura distributor.
1

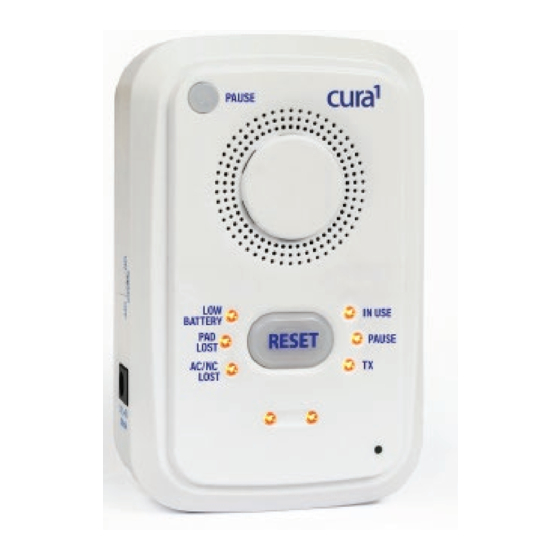

Front View
