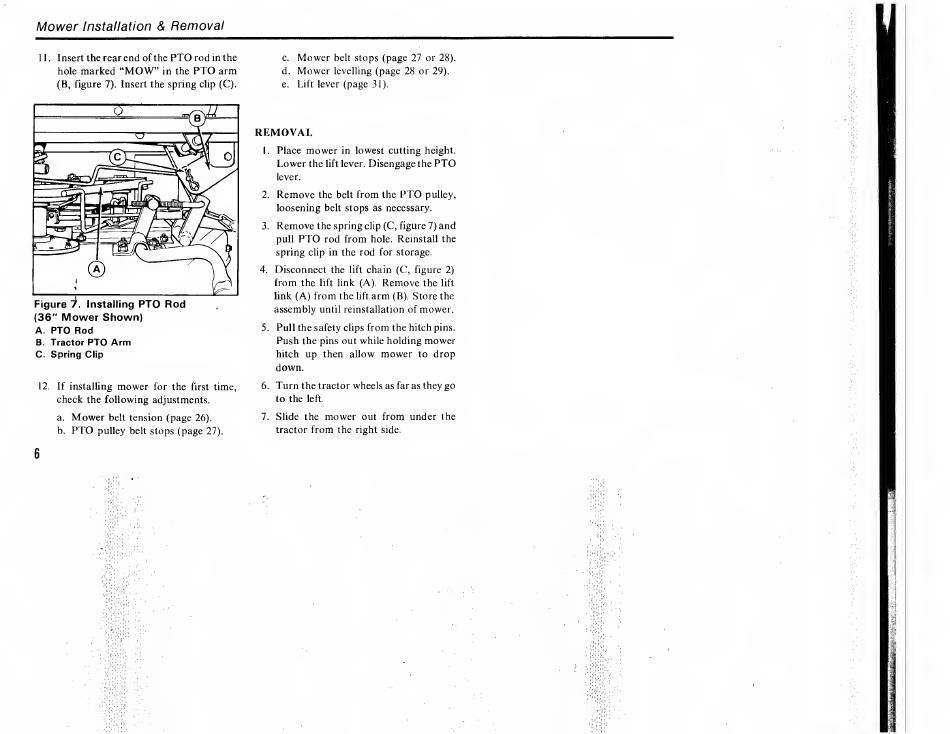

Simplicity 5200 Series Operator's Manual page 8

Mower Installation & Removal
11. Insert the rear end of the PTO rod in the c. Mower belt stops (page 27 or 28).
hole marked "MOW" in the PTO arm d. Mower levelling (page 28 or 29).
(B, figure 7). Insert the spring clip (C). e. Lift lever (page 31).
A. PTO Rod
B. Tractor PTO Arm
C. Spring Clip
REMOVAL
1. Place mower in lowest cutting height.
Lower the lift lever. Disengage the PTO
lever.
2. Remove the belt from the PTO pulley,
loosening belt stops as necessary.
3. Remove the spring clip (C, figure 7) and
pull PTO rod from hole. Reinstall the
spring clip in the rod for storage.
4. Disconnect the lift chain (C, figure 2)
from the lift link (A). Remove the lift
link (A) from the lift arm (B). Store the
assembly until reinstallation of mower.
5. Pull the safety clips from the hitch pins.
Push the pins out while holding mower
hitch up then allow mower to drop
down.
12. If installing mower for the first time,
check the following adjustments.
a. Mower belt tension (page 26).
b. PTO pulley belt stops (page 27).
6. Turn the tractor wheels as far as they go
to the left.
7. Slide the mower out from under the
tractor from the right side.
6
