Adjusting H-626 Foil Labels for the H-627+ Printers
We found that many foil labels designed for the H-626 label printers often used slightly incorrect
measurements and/or adjustments in the printer settings to print foil labels. The next generation H-
627+ printers were designed to be more accurate, but they do require correct foil measurements. This
document will show you how to measure your foil labels and input the correct values in your software
and printer.
When switching to a H-627+ printer, you may need to adjust some settings in the format to be more
1. Restore Defaults in the printer
To get a consistent starting value, restore the default values in your printer:
a. Hold the right arrow key for 3 seconds to enter the settings menu
b. Navigate to "Printer Control" and press the feed key to select
c. Navigate to "Restore Defaults" and press the feed key to select
d. Ensure the arrow is pointing towards "Apply" and press the feed key to select
e. You will then see the THARO printer loading screen. The printer will beep once and return to the
"Ready" screen
f.
Ensure all values are restored to default by entering into the menu
Tab menu
Label Settings
Printer Settings

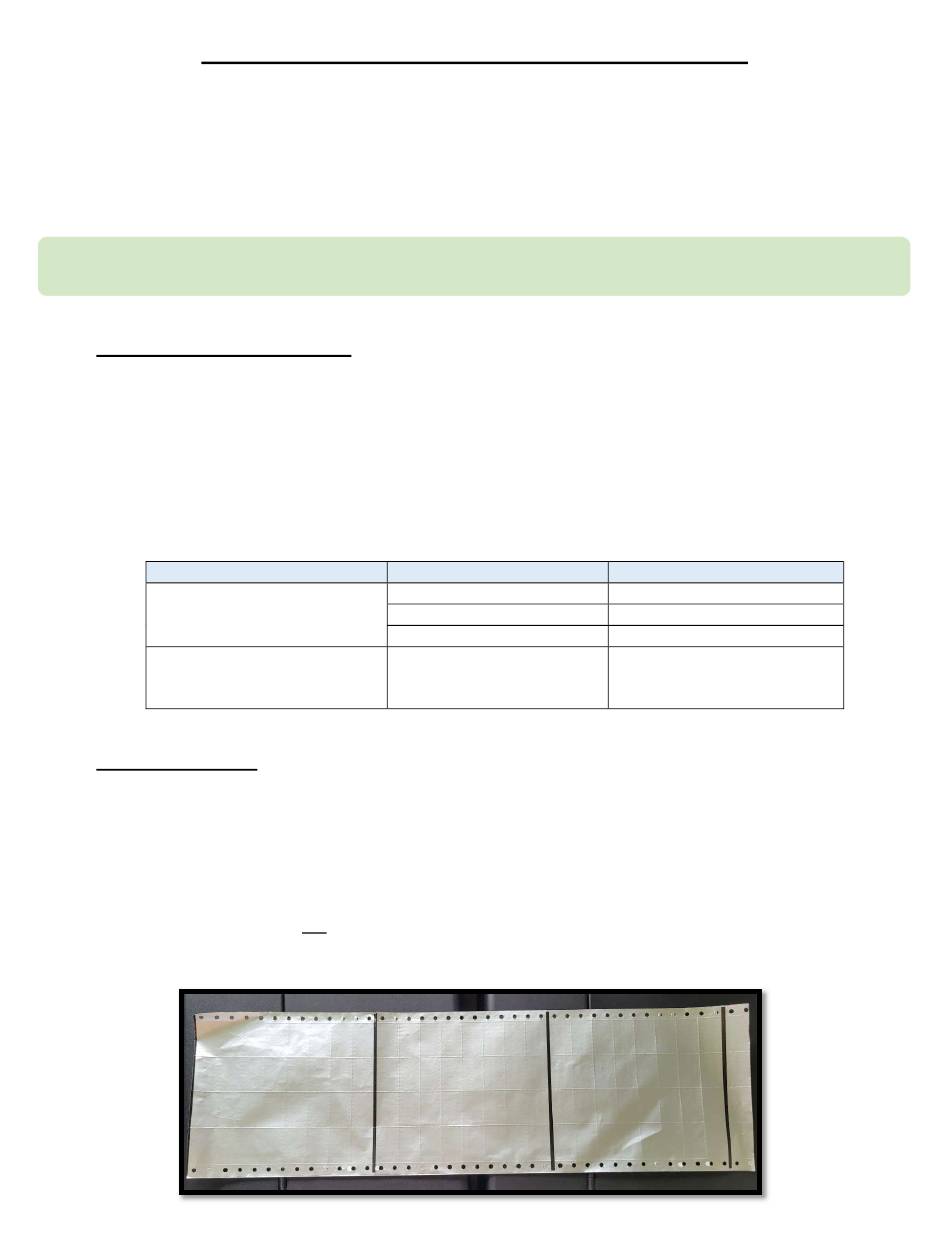

2. Inspect your labels
Take a look at the label stock:
a. Is the black mark consistently dark?
b. Is each black mark a consistent distance apart?
c. Is the black mark straight across?
If all are true, continue to step #3
If any of these are not true, the printer may not be able to sense it properly or calibrate correctly.
You may need to return the label stock for higher quality labels.
accurate to the true sizing of the label.
Setting
Horizontal Offset
Vertical Offset
Start Offset
Tear-off Position
Default value
0
0
0
0 (unlocked, the printer will
adjust to the value in the
format)
Document updated 29 June 2023
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tharo Systems H-627+
Summary of Contents for Tharo Systems H-627+
- Page 1 Adjusting H-626 Foil Labels for the H-627+ Printers We found that many foil labels designed for the H-626 label printers often used slightly incorrect measurements and/or adjustments in the printer settings to print foil labels. The next generation H- 627+ printers were designed to be more accurate, but they do require correct foil measurements. This document will show you how to measure your foil labels and input the correct values in your software and printer.
- Page 2 3. Ensure the labels are feeding through correctly Label stock should be held by the Label Supply Hub towards the back of the printer. The Label Roll Guide should be down and locked to keep the label roll in place. The label stock should feed under the metal bar (1), but above the small plastic label guide and under the sensor (2).
- Page 3 4. Use the default foil values Set your format to use these default values. This is intended for pin-feed labels, if you have a different type of labels, you may need to adjust these values Setting Value Media Type Black Mark – Reflective Black Mark Width Black Mark Offset Print Area Height...
- Page 4 Adjusting the Values (Continued) 1. Black Mark Width: The measurement of thickness of the black mark 2. Black Mark Offset: How far down the label will move after the black mark before starting to print **usually this is not needed with foil labels 3.
