Mower Installation
<&
Removal

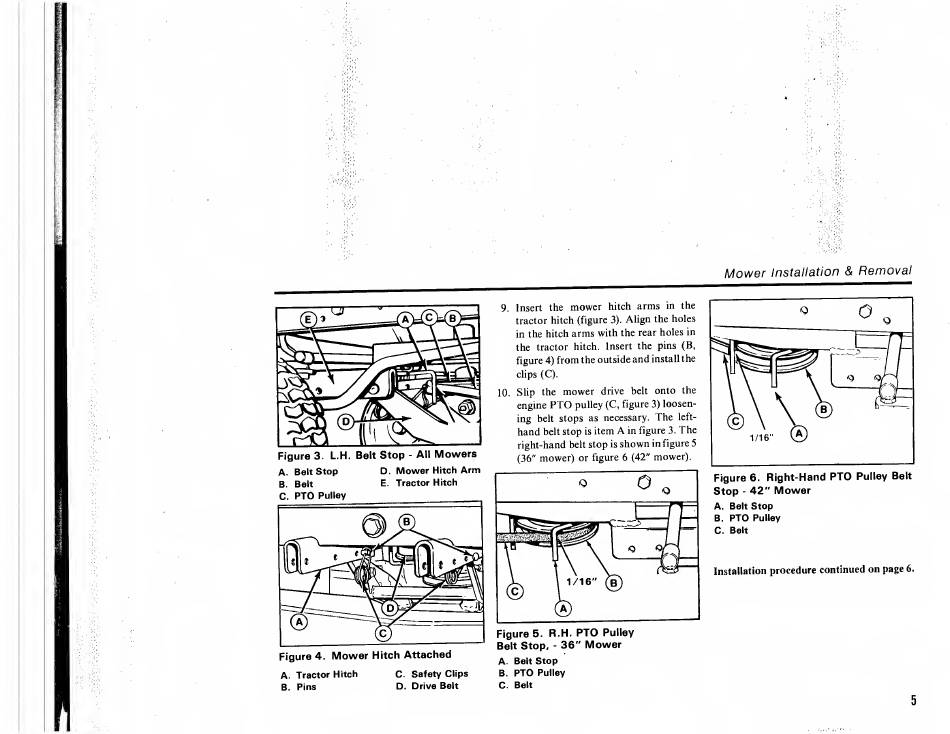

Figure 3. L.H. Belt Stop - All Mowers
A. Belt Stop D. Mower Hitch Arm
B. Belt E. Tractor Hitch
C. PTO Pulley
Figure 4. Mower Hitch Attached
A. Tractor Hitch C. Safety Clips
B. Pins D. Drive Belt
9. Insert the mower hitch arms in the
tractor hitch (figure 3). Align the holes
in the hitch arms with the rear holes in
the tractor hitch. Insert the pins (B,
figure 4) from the outside and install the
clips (C).
10. Slip the mower drive belt onto the
engine PTO pulley (C, figure 3) loosen¬
ing belt stops as necessary. The left-
hand belt stop is item A in figure 3. The
right-hand belt stop is shown in figure 5
(36" mower) or figure 6 (42" mower).
Figure 5. R.H. PTO Pulley
Belt Stop, - 36" Mower
A. Belt Stop
B. PTO Pulley
C. Belt
Figure 6. Right-Hand PTO Puiiey Beit
Stop - 42" Mower
A. Belt Stop
B. PTO Pulley
C. Belt
Installation procedure continued on page 6.
5
