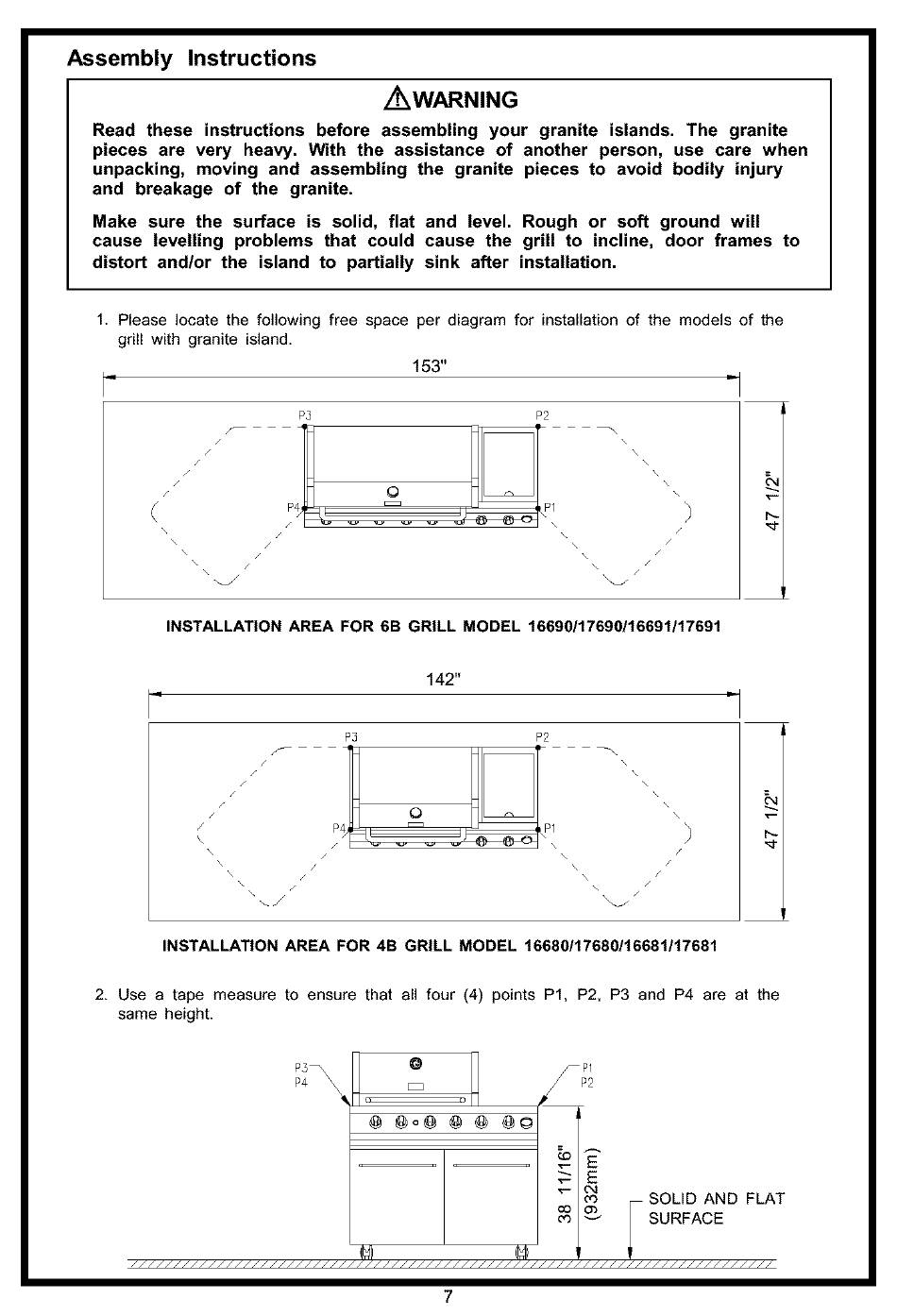

Assembly Instructions
Z WARNING
Read these instructions before assembling your granite islands. The granite
pieces are very heavy. With the assistance of another person, use care when
unpacking, moving and assembling the granite pieces to avoid bodily injury
and breakage of the granite.
Make sure the surface is solid, flat and level. Rough or soft ground will
cause levelling problems that could cause the grill to incline, door frames to
distort and/or the island to partially sink after installation.
1. Please locate the following free space per diagram for installation of the models of the
grill with granite island.
153"
/
/
/
/
P3
P2
\ /
\ /
\ /
,\ /
• /
(N
INSTALLATION AREA FOR 6B GRILL MODEL 16690/17690/16691/17691
142"
,I
F
/
/
J
/
J
/
/
\
\
'\ /
\ /
P3 P2
/
\.
\\
\
\
\
\
\
)
/
/
/
/
INSTALLATION AREA FOR 4B GRILL MODEL 16680/17680/16681/17681
l
r_
2. Use a tape measure to ensure that all four (4) points P1, P2, P3 and P4 are at the
same height.
P3_
P4
@ @o@ @ @ @O
E
E
co SOLID AND FL,_
co Ob
¢o --_ SURFACE
