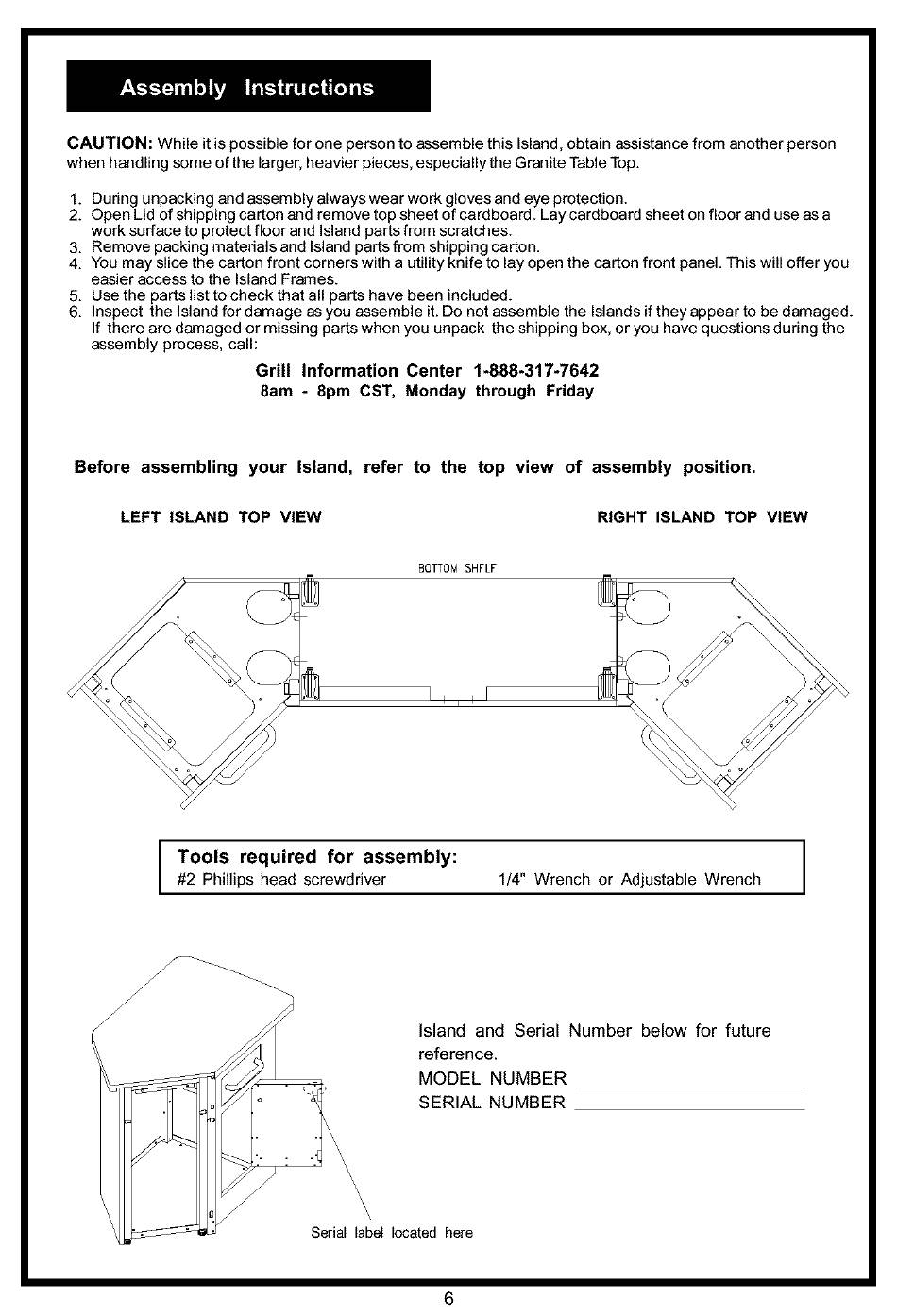

Kenmore Rustic 141.16698 Owner's Manual page 6

CAUTION: W hile itispossible foroneperson t oassemble thisIsland, obtain assistance fromanother person
when handling some ofthelarger, heavier pieces, especially theGranite T able T op.
1. During unpacking and assembly always wear work gloves and eye protection.
2. Open Lid of shipping carton and remove top sheet of cardboard. Lay cardboard sheet on floor and use as a
work surface to protect floor and Island parts from scratches.
3. Remove packing materials and Island parts from shipping carton.
4. You may slice the carton front corners with a utility knife to lay open the carton front panel. This will offer you
easier access to the Island Frames.
5. Use the parts list to check that all parts have been included.
6. Inspect the Island for damage as you assemble it. Do not assemble the Islands ifthey appear to be damaged.
If there are damaged or missing parts when you unpack the shipping box, or you have questions during the
assembly process, call:
Grill Information Center 1-888-317-7642
8am - 8pm CST, Monday through Friday
Before assembling your Island, refer to the top view of assembly position.
LEFT ISLAND TOP VIEW RIGHT ISLAND TOP VIEW
BOTTOM SHFLF
Tools required for assembly:
#2 Phillips head screwdriver 1/4" Wrench or Adjustable Wrench
J
Island and Serial Number below for future
reference.
MODEL NUMBER
SERIAL NUMBER
\
\
\
\
\
Serial label located here
6
