Eclipse GU10 Installation

SPECIFICATION

• Rated voltage, frequency: 100-240V AC
• Rated power: GU10 Max 2 x 35w
• Class I.
• IP Rating: IP44 .
• Product can be used either indoors or outdoors.
• Black or Stainless Steel Finish
• Product can be used either indoors or outdoors

MOUNTING

(PLEASE REFER TO MOUNTING DIAGRAM)
• Read the installation manual before mounting.
• This product should be installed by a qualified electrician.
• Before installation please ensure the power supply is disconnected.
• Product has a protective contact/terminal. Failure to connect the protective lead may lead to electric shock.
• Use correct power leads diameters.
• To maintain the proper IP protection level, the right diameter of the power cable should be selected for the cable
gland used in the product.

USAGE GUIDELINES / MAINTENANCE

Any maintenance work must be done when the product is disconnected from power supply. Do not cover
the product. Product may heat up to a higher temperature. Replacement of light source to be performed after the
product cools down. (See diagram). The product must not be used if the protective cover is damaged. The construction
of the product offers no resistance to specific conditions, e.g. due to the presence of defrosting substances or salt.
COMMENTS / GUIDELINES
Failure to follow these instructions may result in electrical shock, physical injury and other material and non-material
damage. SGD shall not be responsible for any damage resulting from the failure to follow these instructions.
230V
GU10
IP44
50Hz
8mm
Max35w
CLASS I
1
3
Installation
Product Code: EBL-UP/DN, ECH-UP/DN
GU10 Aluminium UP/Down Wall Light

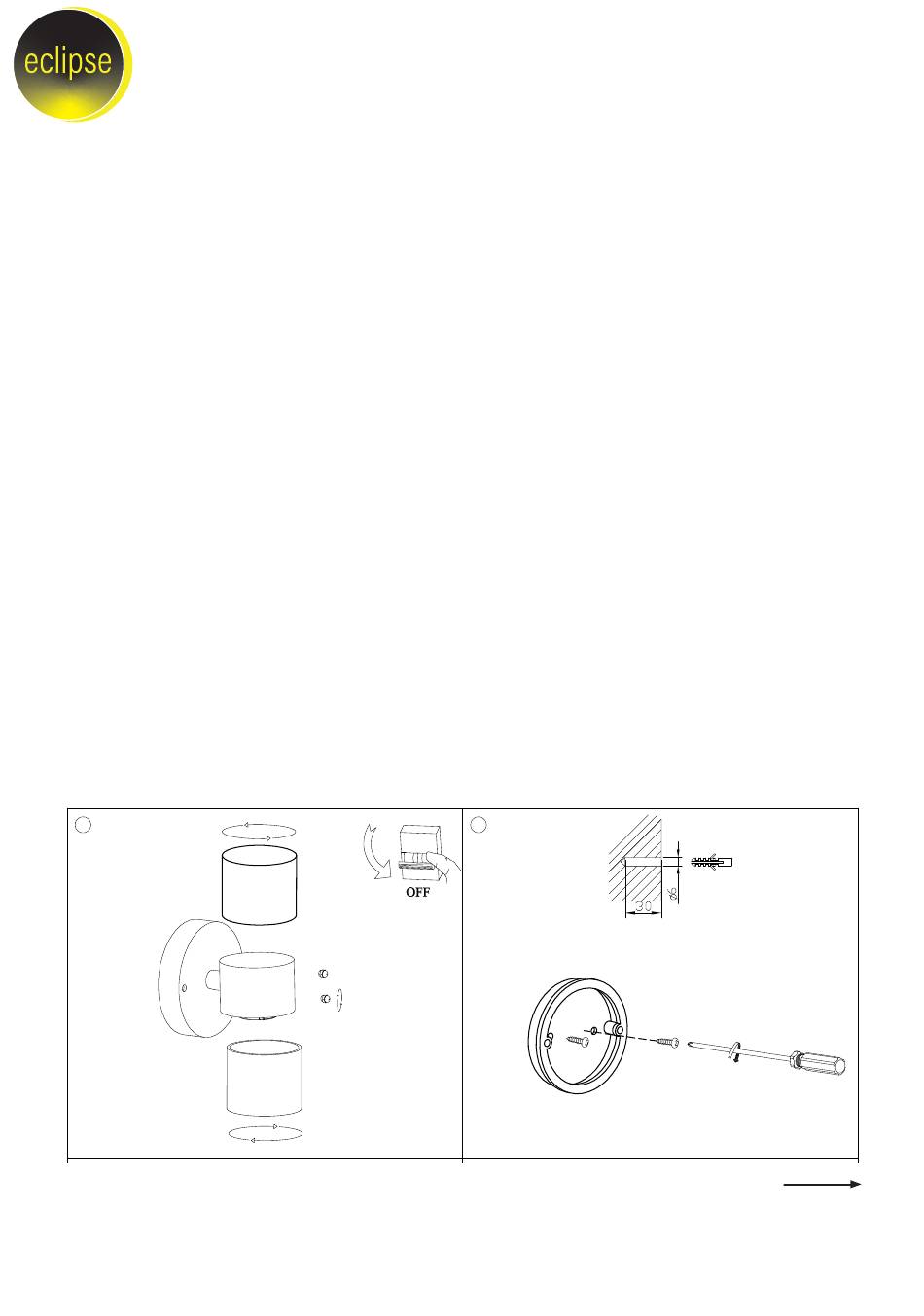

Mounting Diagram
2
4
PTO
