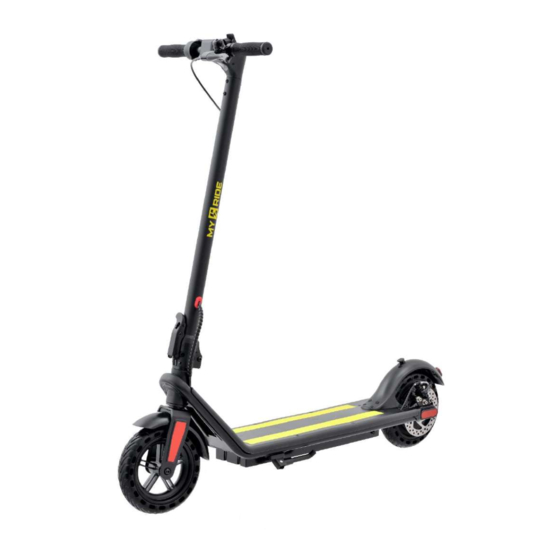

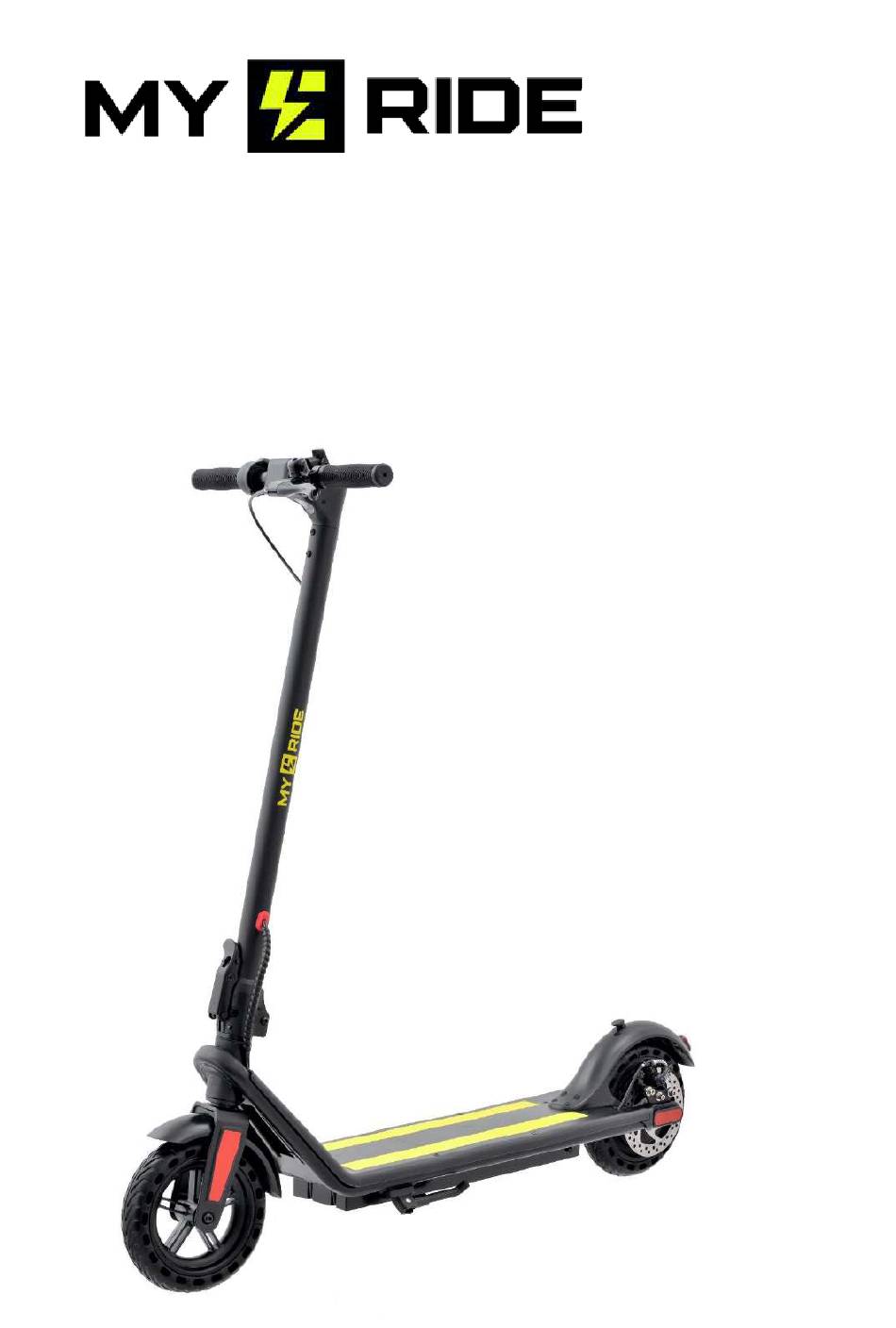

- Page 1 Electric Scooter E SCOOTER ES8501...
-
Page 2: Table Of Contents
Thanks for choosing to purchase your E Scooter from My E Ride. Have fun with your E Scooter, but most of all stay safe. CONTENTS Parts and accessories (1) Functions and controls (2, 3, 4) Application (5, 6, 7, 8, 9) Assembly (10, 11) Charging procedure (12) Safety Instructions (13, 14, 15) -
Page 3: Parts And Accessories
1. Parts and accessories ESCOOTER ES8501 Charger Alan key Body components M5*10 screw Head assembly... -
Page 4: Functions And Controls
2. Functions and controls THROTLE HANDLEBAR DISPLAY HOOK HEADLIGHT HAND BRAKE STEM REAR MUDGUARD NONSLIP PLATE DECK FRONT MUDGUARD DISC BRAKE REAR WHEEL AND MOTOR BATTERY STAND FRNT WHEEL... - Page 5 HAND BRAKE BELL THROTLE DISPLAY BRAKE CABLE HAND BRAKE POWER BUTTON THROTLE...
- Page 6 1. Press and hold the power button for three (3) seconds to turn the scooter on or off. 2. After switching the scooter on, press the power button again to shift between the three different speed modes. 3. Press the power button two (2) times in succession to turn the headlight on or off.
-
Page 7: Application
QR code to install the application. Smart Bike into your mobile phone. 2. Switch on your ESCOOTER ES8501 3. Turn on the Smart Bike application on your mobile phone to start, then click the blue tooth symbol to connect, then find... - Page 8 Figure 1 Figure 2 Figure 2 will indicate the remaining power of the battery, real time speed, distance travelled of the trip (TRIP) and accumulated total distance travelled (Odometer) You can see the following functions, by clicking the six symbols on the bottom of the screen.
- Page 9 Click the cruise control symbol to shift between cruise or non-cruise mode. If the ES8501 scooter is already in cruise mode and the speed exceeds 10 km/h and you keep the same speed 6 seconds or more, the scooter will enter cruise mode automatically and will run at a constant speed.
- Page 10 A) Start up mode You can choose nonzero start or zero start. Non-zero start: start moving over 3 km/h and press the accelerator to start. Zero start, just press the accelerator to start automatically. B) Speed unit Choose between km/h and mph.
- Page 11 C) The current language There are six languages available, English, Russian, German, French, Korean and Chinese. D) Modification of device name The user can rename the blue tooth. E) Password change The original factory password is111111.You can change the password here to your own personal password. F) Factory Data reset To restore factory settings Trouble shooting...
- Page 12 Assembling 3.1. Assemble the horizontal T handlebar into the pole. 3.2. Tighten the screws...
- Page 13 3.3. Folding mechanism with upright pole.
- Page 14 Charging scooter Important Notice: Please wear a helmet and knee pads when riding.
-
Page 15: Safety Instructions
Safety instructions a. It is not recommended to ride in the rain. b. Please do not hang backpacks and other heavy objects on t h e handlebar. - Page 16 It is not permitted to leave or ride your scooter on a freeway, or ride at high speeds. It is also not permitted to ride your scooter on one foot. Never ride your scooter with It is not recommended to ride more than one person, or with your scooter in water children.
- Page 17 Do not stand on the rear mudguard. Do not touch the disc brake. Do not ride by letting go of your Do not ride the e scooter up hands. or down steps or jump over obstacles.
- Page 18 6. Folding and transportation Make sure the hook holder in the rear mudguard has. snagged the hook after folding the pole. Transportation You can carry the scooter with one hand or two hands.
-
Page 19: Safety Recommendations
Please note: Helmets must be worn when riding an E Scooter. 6. Please ensure you check your ESCOOTER ES8501 each time before use, check for parts breakage, wear and tear and any other abnormal symptoms. If you notice anything unusual,... -
Page 20: Care And Storage
Care and Storage 8.1 Clean and store electric scooter If you find any dirt or marks on your scooter housing, use a soft damp cloth to clean the surface. Warning: Do not use alcohol, petrol, kerosene, or other corrosive chemicals to clean your scooter. Do not wash your scooter with water, or any high-pressure cleaner. -
Page 21: Maintenance Of Battery
8.2 Maintenance of electric scooter battery 1. Do not use batteries from other brands of scooters, which will void warranty and cause possible malfunction. 2. Do not open or dismantle the battery case, as this may cause an electric shock and it will also void any warranty. 3. -
Page 22: Specifications
Specification Motor 36V 200W, rear brushless Battery 36V 9.6Ah lithium battery Charger 100~240V (in) / 42V（out), 1.5A Display Built-in LCD Tire 8.5 inch, solid (honeycomb) Electric brake and disc brake Brake Application Charging Time 4~6 hours About 28 km (with load of 80 kgs, Range per charge speed at first level Speed... -
Page 23: Warranty
Warranty To ensure your ESCOOTER ES8501 is covered by warranty, please read the following information carefully. GUARANTEE CONTENTS, TARGETS AND DEADLINE: 1. Guarantee contents: Purchase the unit from My E Ride or authorized dealer and operate the scooter according to the instructions set out in this manual. -
Page 24: Declarations And Note
Declaration My E Ride is not responsible for any incidental, indirect, special or consequential damages, including but not limited to the loss of profits, income or data due to the violation of explicit or implied warning or conditions mentioned in this user manual, or violation of local laws. - Page 25 Contact Us If you have any questions about the E Scooter ES9001, please feel free to contact My E Ride immediately. Office: 03 8719 8358 Email: info@myeride.com.au Website: www.myeride.com.au Address: 4 /54 Merrindale Drive Croydon South Victoria Australia 3136...
