Summary of Contents for Myride E SCOOTER ES9001

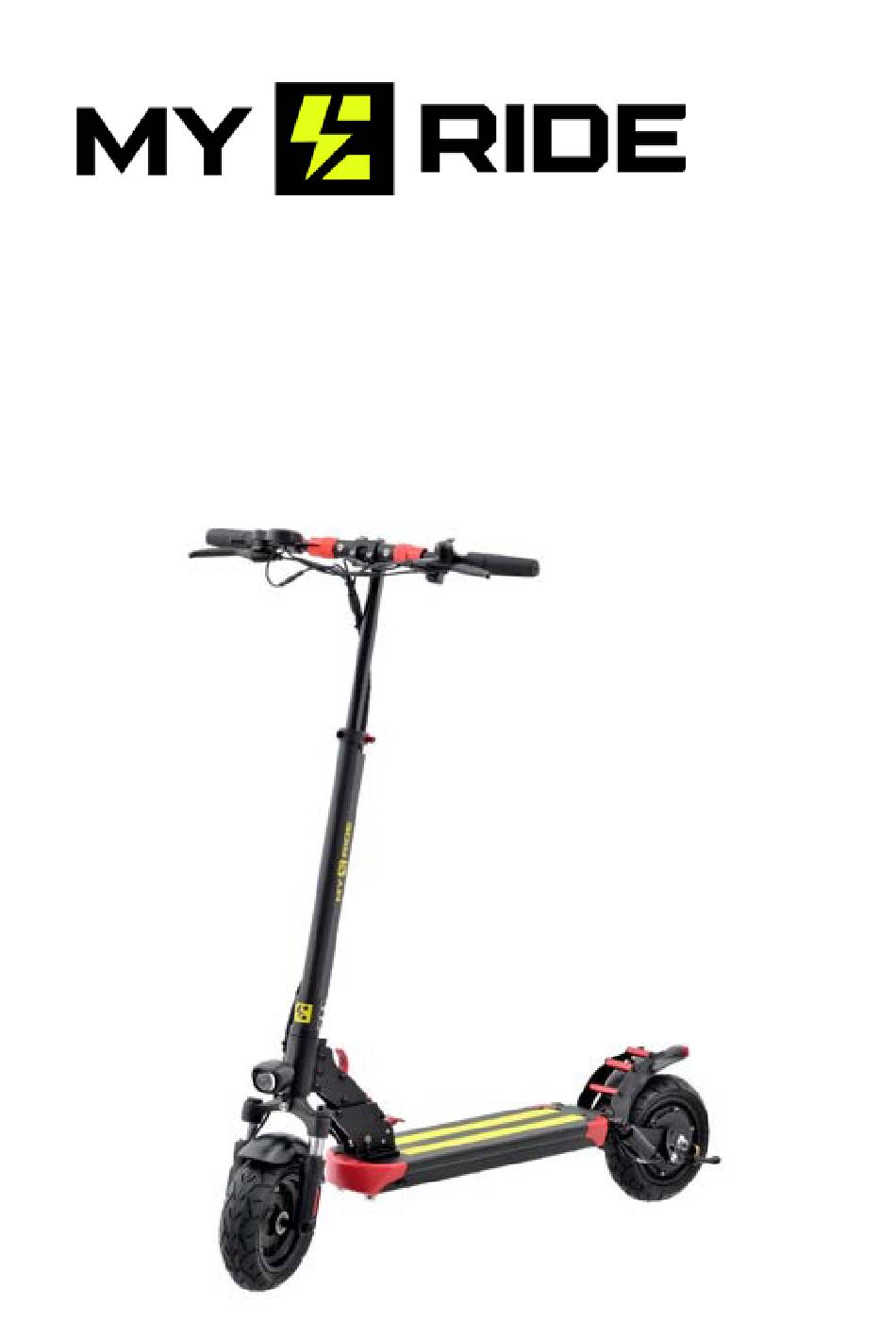

- Page 1 Electric Scooter E SCOOTER ES9001...
-
Page 2: Table Of Contents
Table of Contents The electric scooter and main parts ......2, 3 Folding and unfolding............. 4, 5 Display and functions............6 Trouble Shooting …………………………….……..…. 7 Charging ................8 Specifications ..............9 Safety instructions ............. 10 Care and Storage ..............11 Maintenance………………………………………………12 Warranty………………………………………………….13 Declaration………………………………………………..14... -

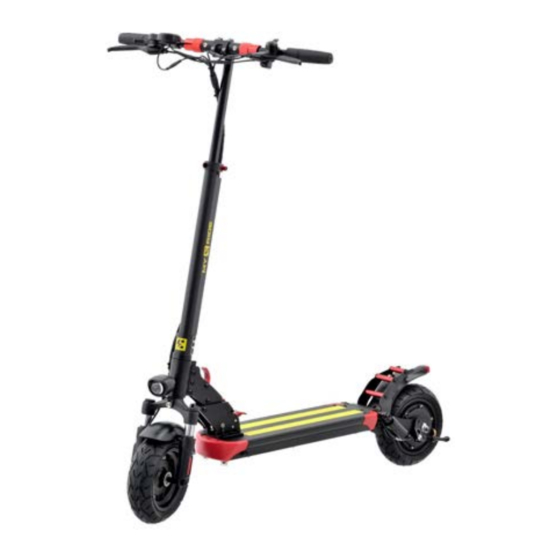

Page 3: The Electric Scooter And Main Parts
I The ESCOOTER ES9001 main parts... - Page 4 1.Foldiung handlebar 2.Adjustable pole 3.Quick release 4.Head Light 5.Safety buckle 6.Folding Lock 7.Front suspension fork 8.Deck 9.Anti-slip sticker 10.Battery Case 11.Rear Suspension 12.Motor 13.Rear Light 14.Front Mudguard 15.Rear Mudguard Folding Handlebar 1. Brake lever 2. Grip 3. Bell 4. Light Switch button 5.
-
Page 5: Folding And Unfolding
2 Folding and unfolding 1. Unfolding When you take the electric scooter out from the carton, it is almost completely assembled, just unfold the stem and handlebar, to fully expand the electric scooter. 1.1 How to unfold the stem? Firstly, release the safety buckle. Secondly, press the folding lock. - Page 6 2.2 How to fold the stem? To fold the stem when the handlebar is folded. Firstly, release the safety buckle. Secondly, press the folding lock with your thumb on one hand while pushing the stem ahead with another hand, to unlock the folding mechanism, then put down the stem slowly and softly till hearing a “clicking”...
-
Page 7: Display And Functions
3. Display Power Switch Button Finger Throttle Mode Button Power switch button 2. Mode button There are two buttons on the display, a power button and mode button. 3.1 Usage of display Press and hold the power switch button to power on the electric scooter, once switched on, the screen of display will show speed mode (1, 2 or 3), battery capacity, constant speed, trip or DOD （depending on the function chosen). -
Page 8: Trouble Shooting
3.2 Trouble shooting When your ESCOOTER ES9001 malfunctions, the display will show a certain code number to let you know which area is faulty or causing a problem. The following fault codes are indicated. Code Problem part Signal Brake Motor Throttle Controller... -
Page 9: Charging
4 Charging Charging Port Charger Power off the electric scooter before charging. Open the cover of the charging port. Plug the output end of the charger into that charge port, which is under the deck, located on the front / left side of the battery case. Then plug the input end of the charger into the power point and switch on the power point for charging. -
Page 10: Specifications
5 Specifications Unfolded: 112*58*119 cm Overall dimension Folded: 112*20*46 cm Frame Al alloy Tire pneumatic, 9 inches Suspension Front and rear suspension Brake front and rear drum brake + electric brake Motor 36V 200W rear drive motor Battery 36V 12.8Ah, LG lithium battery Charger 42V 2A Charging time... -
Page 11: Safety Instructions
6 Safety instructions 1. It is not recommended driving in rain. 2. Please do not hang backpacks and other heavy objects on the handlebar. 3. It is illegal to leave or ride electric scooters on a highway, or ride at high speed. 4. -
Page 12: Care And Storage
7 Care and Storage 1. An Electric Scooter is only a device for enjoyment and commuting, however when you ride in public areas, the electric scooter brings a certain amount of risk to yourself and others. For the sake of your safety and others, you must strictly follow the instructions described in this manual, as well as all local laws and requirements. -
Page 13: Maintenance
Maintenance of electric scooter battery 1. Do not use batteries from other scooter brands to avoid a dangerous situation, as well as void any warranty. 2. Do not open or disassemble the battery, as tis may cause an electric shock. Do Not to touch any metal objects to avoid any short circuit. -
Page 14: Warranty
9 Warranty To ensure your E Scooter provides many years of trouble-free service, please read the following as outlined by My E Ride and the Manufacturer. Please read the following carefully. I) GUARANTEE CONTENTS, TARGETS AND DEADLINE: 1. guarantee contents: Purchase the unit from My E Ride or its authorized dealer. -
Page 15: Declaration
Declaration Manufacturer is not responsible for any incidental, indirect, special, or consequential damages, including but not limited to the loss of profit, income or data, due to the violation of explicit or implied warning or conditions mentioned in this user manual or violation of local laws. Note: 1) Please strictly follow the safety instructions in the manual. -
Page 16: Contact Us
Contact Us If you have any questions about the E Scooter ES9001, please feel free to contact My E Ride immediately. Office: 03 8719 8358 Email: info@myeride.com.au Website: www.myeride.com.au Address: 4 /54 Merrindale Drive Croydon South Victoria Australia 3136...
