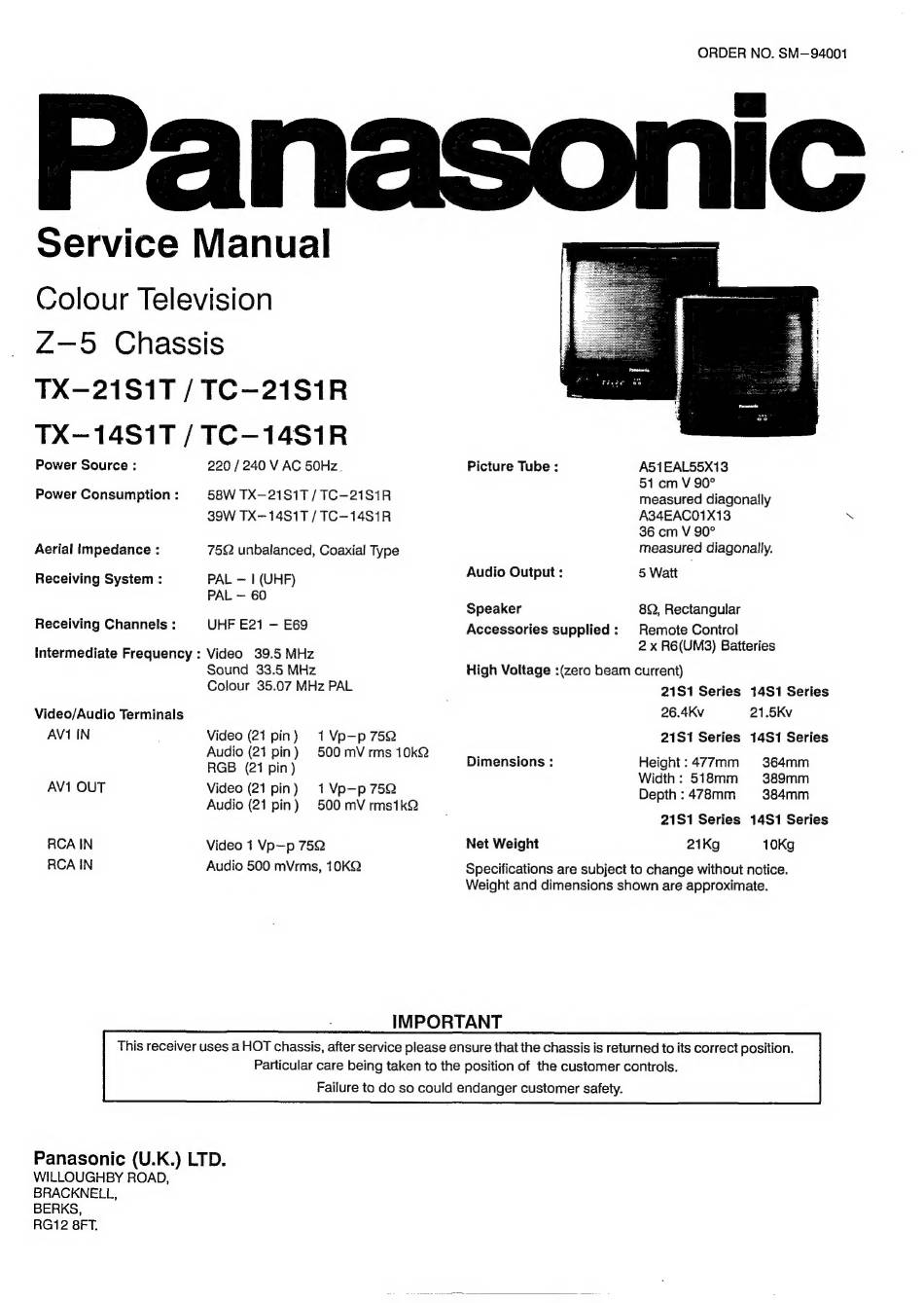

Panasonic TX-21S1T Service Manual

Panasoni
Service Manual
Colour Television
Z—5 Chassis
TX-—21S1T /TC-—21S1R
TX—14S1T /TC—14S1R
Power Source : 220 / 240 V AC 50Hz.
58W TX—21S1T / TC—21S1R
39W TX-1451T / TC—14S1R
Power Consumption :
Aerial impedance : 75Q unbalanced, Coaxial Type
Receiving System : PAL — | (UHF)
PAL — 60
Receiving Channels : UHF E21 — E69
Intermediate Frequency : Video 39.5 MHz
Sound 33.5 MHz
Colour 35.07 MHz PAL
Video/Audio Terminals
AV1 IN Video (21 pin) 1Vp—p 75Q
Audio (21 pin) 500mVrms 10kQ
RGB (21 pin)
AV1 OUT Video (21 pin) 1 Vp—p 75Q
Audio (21 pin) 500 mV rms1kQ
RCA IN Video 1 Vp—p 752
RCA IN Audio 500 mVrms, 10KQ
ORDER NO. SM-—94001
A51EAL55X13
51 cm V 90°
measured diagonally
A34EAC01X13 \
36 cm V 90°
measured diagonally.
Picture Tube :
Audio Output : 5 Watt
8Q, Rectangular
Remote Control
2 x R6(UMS3) Batteries
High Voltage :(zero beam current)
21S1 Series 14S1 Series
26.4Kv 21.5Kv
21S1 Series 1481 Series
Speaker
Accessories supplied :
Dimensions : Height: 477mm 364mm
Width: 518mm 389mm
Depth: 478mm 384mm
21S1 Series 14S1 Series
Net Weight 21Kg 10Kg
Specifications are subject to change without notice.
Weight and dimensions shown are approximate.
IMPORTANT
This receiver uses a HOT chassis, after service please ensure that the chassis is returned to its correct position.
Particular care being taken to the position of the customer controls.
Failure to do so could endanger customer safety.
Panasonic (U.K.) LTD.
WILLOUGHBY ROAD,
BRACKNELL,
BERKS,
RG12 8FT.
