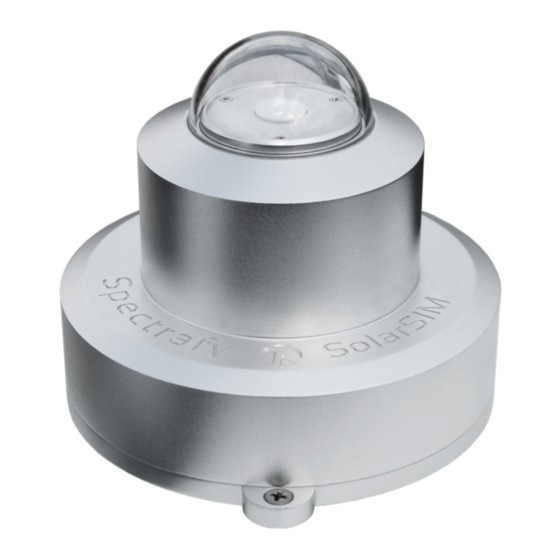

Spectrafy SolarSIM-GPV User Manual

Solar spectral irradiance meter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual:
Solar Spectral Irradiance Meter
SolarSIM-GPV
© Spectrafy, 2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SolarSIM-GPV and is the answer not in the manual?

Questions and answers

Related Manuals for Spectrafy SolarSIM-GPV

Summary of Contents for Spectrafy SolarSIM-GPV

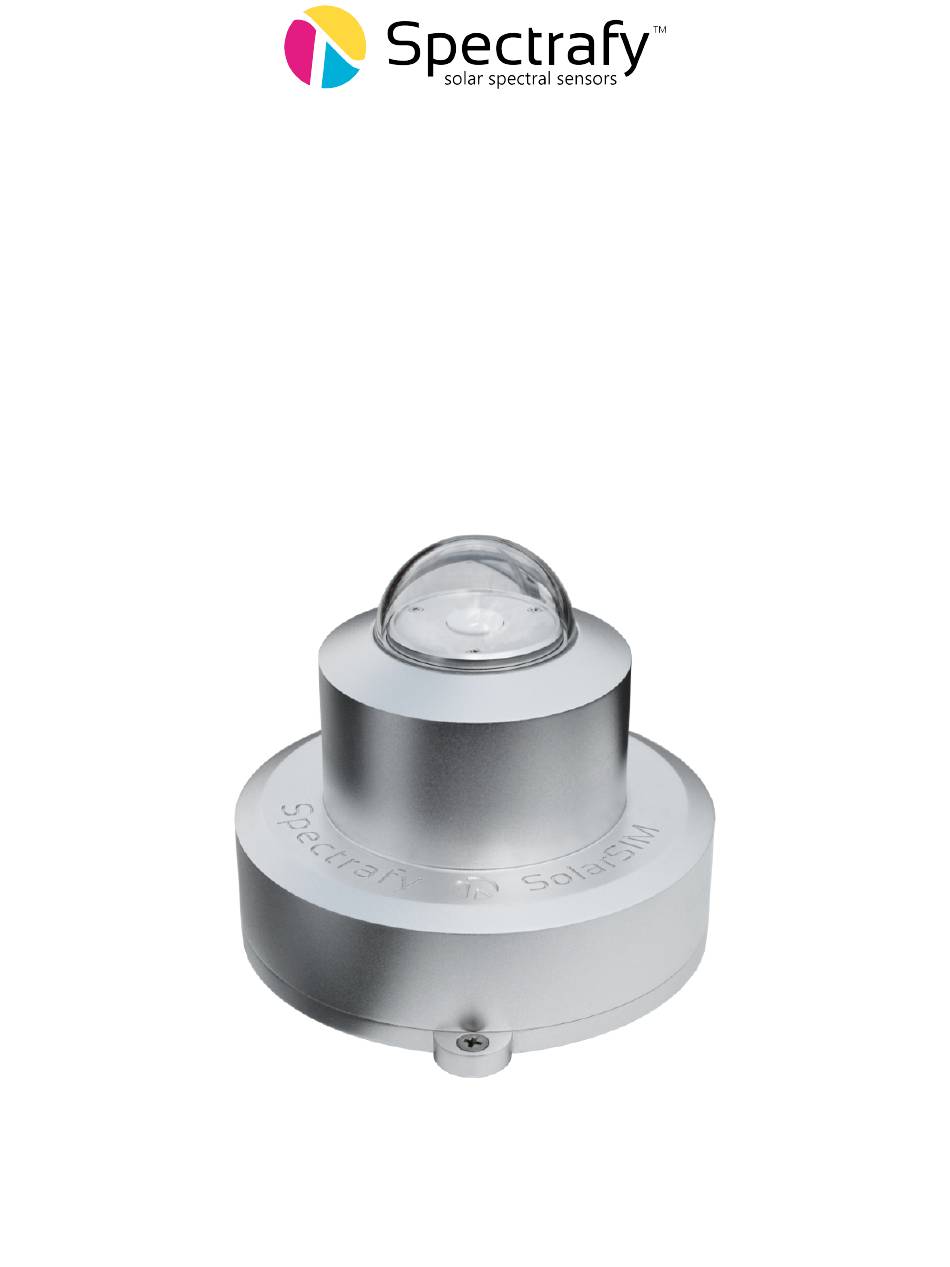

  • Page 1 User Manual: Solar Spectral Irradiance Meter SolarSIM-GPV © Spectrafy, 2022...
  • Page 2 K2P 0W7 Tel: 1-613-237-2020 info@spectrafy.com www.spectrafy.com Spectrafy Inc. reserves the right to make modifications to the user manual without prior notice. Warranty and liability Spectrafy Inc. guarantees that the Solar Spectral Irradiance Meter (SolarSIM-GPV) has been thoroughly tested to ensure that it meets all of the stated specifications. A two year warranty is provided from date of invoice, subject to correct installation and operation.

  • Page 3: Table Of Contents

    Contents Introduction 1 Main components 1.1 Glass dome ........1.2 Enclosure .
  • Page 4 Main dimensions of the iSG......List of Tables SolarSIM-GPV data outputs ......

  • Page 5: Introduction

    PV spectral correction factors for up to nine difference PV panels. This SolarSIM-GPV’s data can be used within any standard PV modelling software to quantify and account for the effects of solar spectral variation on PV performance.

  • Page 6: Main Components

    1 Main components A side view of the SolarSIM-GPV’s primary components is shown in Figure 1, which include: • a glass dome, • an enclosure, • bandpass filters, • bubble level, • a connector, and • a backplate. Figure 1: SolarSIM-GPV components and main dimensions.

  • Page 7: Glass Dome

    1.3 Bandpass filters Nine bandpass filters transmit a narrow band of spectral irradiance to the detectors. 1.4 Bubble level The bubble level ensures the SolarSIM-GPV is leveled when measuring the irradiance in global horizontal orientation. 1.5 Connector The connector provides power and communication to the SolarSIM-GPV electronics.

  • Page 8: Installation

    2.2 Mechanical installation Installation of the SolarSIM-GPV consists of fastening it to a mounting plate using three M4 screws and springs, as demonstrated in Figure 2. The mounting plate can then be mounted to a pole or table as required. The mounting plate is 7.3 mm thick and has three slots with a 132 mm diameter that are 4.5 mm wide for external fastening, as shown in Figure 3.

  • Page 9: Maintenance

    The SolarSIM-GPV requires very little maintenance. The primary concern is to ensure that the glass dome of the SolarSIM-GPV is clean at all times, as the accumulation of dirt can lead to underreported and inaccurate data. Spectrafy’s GV-1 ventilator can aid in this.
  • Page 10 Figure 2: Assembled SolarSIM-GPV on the mounting plate. Figure 3: Dimensional drawing of the mounting plate. Note the three mounting holes are M4 thread.

  • Page 11: Connectivity

    4 Connectivity The SolarSIM-GPV uses the iSG Integrated Spectrum Generator add-on to automatically process it’s raw data and output global solar irradiance (GHI/GTI/POAI) and PV spec- tral correction factors directly to a datalogger over RS-485 modbus. The iSG consists of a 150x100x50mm, IP66 rated aluminium enclosure that can be deployed in open air, or within a datalogger enclosure, where it mounts by standard DIN rail.

  • Page 12: Data Outputs

    The SolarSIM-GPV uses Spectrafy’s innovative multispectral measurement approach to ac- curately resolve the global solar spectrum over the 280-4000nm wavelength range. From this spectral irradiance data, the SolarSIM-GPV outputs the global irradiance (calculated from the wavelength integral of the spectral irradiance) and PV spectral correction factors (SCF) for up to nine different PV panels.

  • Page 13: Data Outputs

    5.1 Data outputs The SolarSIM-GPV+iSG, outputs data as detailed in Table 1 below. Table 1: SolarSIM-GPV data outputs Parameter Name Units Notes TimeStamp Local timestamp G Irradiance Global irradiance GHI/GTI (Class A) G SCF 1 Spectral corr. factor 1 First Solar S3+ G SCF 2 Spectral corr.

  • Page 14: User Defined Spectral Response Curves

    The SolarSIM-GPV comes with nine default spectral response (SR) curves as detailed in Ta- ble 5. The SolarSIM-GPV can also be used with user-defined SR curves. If you would like to use alternative SR curves, please contact us at info@spectrafy.com before your SolarSIM-GPV unit is shipped, so that your SR curves can be incorporated into the software.
