Summary of Contents for MULTIPRESS M5P Series

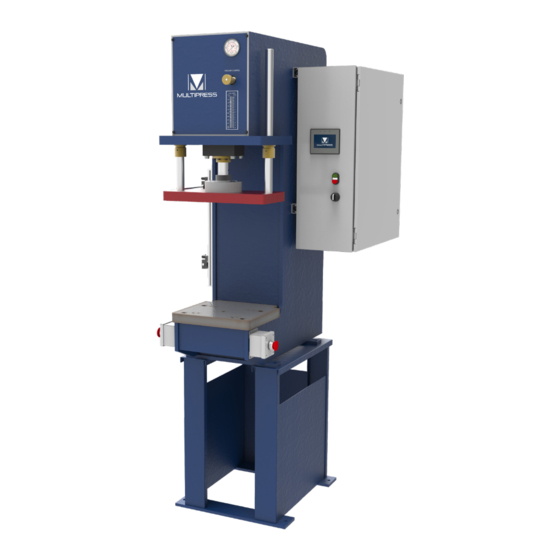

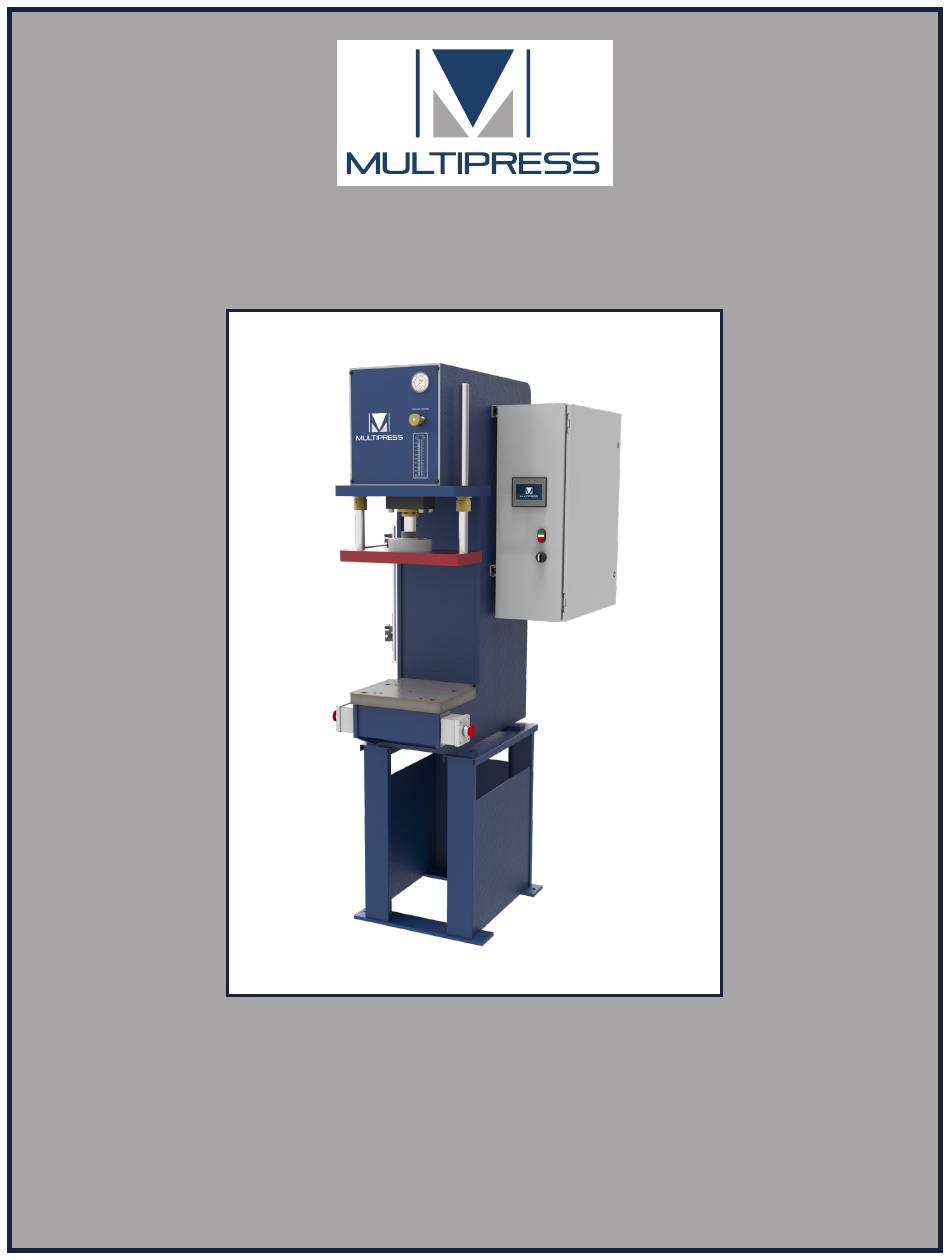

- Page 1 HYDRAULIC EQUIPMENT OPERATING INSTRUCTIONS AND SERVICE MANUAL SERIES “M5P” 6 TO 20 TON Pacific Press Technologies/MULTIPRESS 714 North Walnut Street Mount Carmel, IL 62863 618-262-8666 sales@pacific-press.com January 25, 2022...
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION MANUAL SCOPE SERVICE POLICY MULTIPRESS EQUIPMENT WARRANTY SAFETY WARNING AND CAUTION TAGS SPECIFICATIONS INSTALLATION INSTALLATION INSTRUCTIONS ELECTRIC RECOMMENDED OIL SPECIFICATIONS FILLING THE OIL RESERVOIR SEQUENCE OF OPERATION STARTING THE PUMP AND MOTOR INCHING SET-UP CYCLING AIR IN SYSTEM... -
Page 5: Introduction
INTRODUCTION... -
Page 6: Manual Scope
MANUAL SCOPE This manual is intended as a reference when installing and preparing MULTIPRESS equipment for operation, and for normal maintenance and equipment repair. SERVICE POLICY The simplicity of MULTIPRESS equipment, the unitized construction of its major components, and observance of the instructions in this manual assure ease of servicing by the user. -
Page 7: Warning And Caution Tags
WARNING AND CAUTION TAGS Please observe the Caution, Warning, and Note tags on the press (reproduced below) and in this manual. WARNING TO PREVENT SERIOUS BOLIDLY INJURY: NEVER use this machine without guards or safety devices that are intended to prevent hands from remaining in the die space. NEVER operate, service, or adjust this machine, or install dies, without proper instruction and without first reading and understanding the instructions in the operator’s manual. - Page 8 SPECIFICATIONS Figure 1 - Specifications PRESS MODEL NO. M5P-5P* M5P-6 M5P-8 M5P-8P* M5P-12 M5P-15 M5P-20 TONNAGE MAX. ADVANCED SPEED PRESS I.P.M RETURN BORE 2 1/2” 2 1/2” 3 1/4” 3 1/4” 4” 4” 5” CYLINDERS DIAMETERS 1 3/4” 1 3/4” 2”...
-
Page 9: Specifications
SPECIFICATIONS (CONT.) MODEL M5P-6 11.5 30.5 16.75 50.75 15.5 M5P-8 11.5 30.5 16.75 50.75 15.5 M5P-12/15 13.5 37.0 20.00 51.13 18.5 M5P-20 15.5 40.0 21.00 53.62 19.5 MODEL M5P-6 1.75 8.13 7/16 1/4-20 7/8-9 M5P-8 2.00 8.13 7/16 1/4-20 7/8-9 M5P-12/15 2.50 8.63... -
Page 11: Installation
INSTALLATION... -
Page 12: Installation Instructions
RECOMMENDED OIL SPECIFICATIONS The warranty for MULTIPRESS equipment applies only when the proper hydraulic fluid has been used, and the oil contamination level is equal to, or better than NAS...1638...CLASS NO. 8 OR BETTER. NO PARTICLES OVER 200 MICRON. “New”... -
Page 13: Filling The Oil Reservoir
In the oil. EXTREME CARE should be exercised in maintaining a clean supply of oil in the reservoir and the hydraulic system of your MULTIPRESS equipment at all times. Make certain that no lint, dirt, abrasive scale, or other foreign materials enter the hydraulic system. -
Page 15: Sequence Of Operation
SEQUENCE OF OPERATION... -
Page 16: Starting The Pump And Motor
STARTING THE PUMP AND MOTOR IMPORTANT: Prior to start-up: 1. Start and stop the electric motor in order to check proper rotation. There are arrows clearly marked on the motor indicating the correct rotation. If this is incorrect, check the wiring to the motor leads. 2. -
Page 17: Inching
NOTE Ram may not retract if the RELIEF VALVE has been backed out too far. INCHING Set the selector switch to JOG DOWN. Simultaneously actuate and maintain actuation of both CYCLE START buttons to the desired position of the ram. Release of either button allows the ram to stop. -
Page 18: Set-Up
SET-UP JOG the press to your desired lower stop position allowing ram to exert full pressure against a set up block or workpiece. NOTE Set-up tooling before setting pressure on the ram. Adjust the pressure by loosening the relief valve LOCKNUT and turning the relief valve KNOB on front or side of press (clockwise increases pressure, counterclockwise decreases pressure). -
Page 19: Cycling
CYCLING Simultaneously actuate and maintain actuation of both CYCLE START buttons. The ram extends until it contacts the work, achieves tonnage and reverses or until the lower proximity switch (2PRS), if included, no longer senses the RAM GUIDE BAR, and reverses. Release of the CYCLE START buttons before contacting work or making lower proximity switch (2PRS) retracts the ram to its upper stop position. - Page 21 MAINTENANCE...
-
Page 22: General
It is the responsibility of the user to maintain the MULTIPRESS equipment at all times in a day-to-day operation. The Manufacturer suggests that the following maintenance and service procedures be implemented and regularly practiced by the user. - Page 23 SCHEDULED MALFUNCTION ITEMS TO BE INSPECTED FRAME ELECTRIC MOTOR STARTER PUMPS VALVES GAUGES SWITCHES OPERATING CONTROLS TOOLING FEED AND/OR EJECTION MECHANICAL OIL LEAKS HYDRAULIC LINES - PIPE, TUBE, HOSE HYDRAULIC FITTINGS ELECTRICAL LINES - WIRE, CABLE, CONDUIT GASKETS, SEALS, & O-RINGS RAM PACKING OIL LEVEL TOO LOW OR TOO HIGH OIL CONTAMINATION TOO HIGH...
- Page 25 INSPECTION...
-
Page 26: Daily Inspection
DAILY INSPECTION Before operating MULTIPRESS equipment, each operator should make inspection checks indicated on Pages 26 and 27. These checks should be made after each shift change. In addition, the following inspection checks should be made by each operator before operating the press and after any break time. - Page 27 OPERATING NO. OF HYD. ELECT. MECH. INSPET. NOTES CYCLES LEAKS LEVEL TEMP COMP’S. COMP’S. COMP’S. DATE REMARKS...
-
Page 28: Periodic Inspection
PERIODIC INSPECTION At the scheduled intervals in the table below, the users’ maintenance should check each of the items. In addition, each component of the PRESS should be checked for proper performance as follows: 1. Make sure that all devices function in accordance with the electrical circuit and sequence of operations. - Page 29 Contamination of hydraulic fluid Sample sent for analysis Either top-up with clean fluid or drain and clean reservoir. Replace with new fluid of correct specification. Reservoir air breather Visual Clean or renew element Hose clamps Suitable tools Tighten as required Hydraulic fluid filters if equipped Strip and check mechanisms seals, Replace as necessary according to manufacturers...
-
Page 31: Relief Valve Service
RELIEF VALVE SERVICE... -
Page 32: Relief Valve Operation
RELIEF VALVE OPERATION At times, the relief valve is prevented from satisfactorily operating by the presence of lint, pipe scale, or foreign matter. This may cause fluctuations of pressure or pressure failure. Quite often, this condition can be corrected by starting the pump, loosening the relief Valve Locknut, then turning the Relief Valve Knob counter-clockwise. - Page 33 NOTE When hydraulic lines and fittings have been taken loose or replaced, care must be taken to assure all lines have been securely tightened to prevent leaks and ingestion of air into the system which would cause permanent damage to the unit. NOTE When components have been removed, some additional cycling may be required to ensure the...
-
Page 34: Manifold Assembly
MANIFOLD ASSEMBLY Figure 2... -
Page 35: M5P Hydraulic Circuit
M5P HYDRAULIC CIRCUIT Figure 3 CYCLE - DE-ENERGIZED SOL. 1 SOL. 2 SOL. 3 + ENERGIZED EXTEND RETRACT FAST IDLE FAST EXTEND RAM EXTEND, FULL PRESSURE RAM RETURN TO PROXIMITY SWITCH 1 SETTING JOG CYCLE JOG DOWN JOG UP... -
Page 36: M5P Hydraulic Circuit Components
M5P HYDRAULIC CIRCUIT COMPONENTS W6A HYDRAULIC CIRCUIT COMPONENTS ITEM QTY. DESCRIPTION PUMP/MOTOR ASSY MOTOR PUMP RELIEF VALVE ASSY RELIEF VALVE CHECK VALVE MANIFOLD PACKAGE CHECK VALVE SEQUENCE VALVE CHECK VALVE 30 PSI DIRECTIONAL VALVE 4-WAY DBL SOL REGEN SOL VALVE (OPT.) HYDRAULIC CYLINDER BORE STROKE... -
Page 37: Positive Stop Assembly
POSITIVE STOP ASSEMBLY To set the depth stop, perform the following: 1. Remove the COVER. 2. Set the DEPTH STOP NUT at the position you would like the COVER MAIN RAM to stop. 3. Tighten the JAM NUT against the DEPTH STOP NUT. -
Page 39: Safety Procedures
SAFETY PROCEDURES... -
Page 40: Safety Procedures Checklist
SAFETY PROCEDURES CHECKLIST Perform the following: 1. STOP THE HYDRAULIC POWER UNIT MOTOR AND INSERT SAFETY BLOCK BEFORE REACHING INTO THE DIE AREA. 2. Clean the bolster plate, dies, and press surface before installing dies. Misalignment caused by dirt, chips of metal or other foreign materials could result in injury to the operator or damage to press and dies. -
Page 41: Troubleshooting
TROUBLESHOOTING... -
Page 42: Basic Troubleshooting
BASIC TROUBLESHOOTING In the event of non-standard performance, use the table below. TROUBLESHOOTING PROBLEM POSSIBLE CAUSE RAM STARTS DOWN - NO FAST SEQUENCE VALVE 4B SET TOO LOW - DIFFERENTIAL APPROACH INCREASE THE SETTING RAM APPROACH AND RETURN SPEEDS ARE DIRECTIONAL VALVE 4D IS NOT OPERATING - 1/3 OF NORMAL CHECK SOL OR VALVE SPOOL... - Page 44 General Inquiries: Multipress, Inc. 714 North Walnut Street Mount Carmel, IL 62863 618-262-8666 sales@pacific-press.com Parts and Service Inquiries: 618-262-8666, ext. 2283 parts@pacific-press.com...
