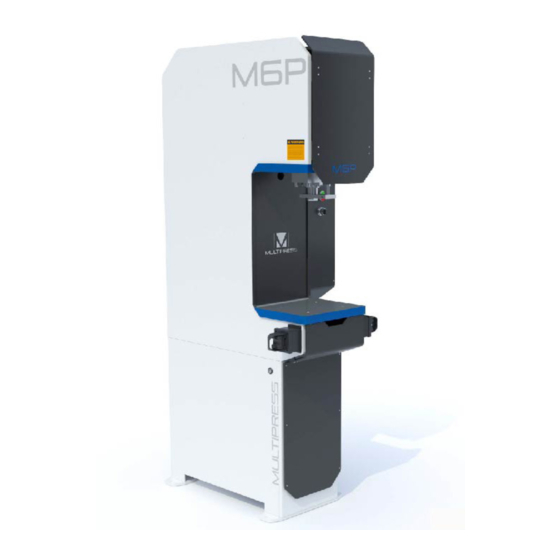

HYDRAULIC EQUIPMENT
OPERATING INSTRUCTIONS
AND SERVICE MANUAL
SERIES "M6P" 6 TO 20 TON
Pacific Press Technologies/MULTIPRESS
714 North Walnut Street
Mount Carmel, IL 62863
618-262-8666
1
sales@pacific-press.com
October 6, 2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M6P Series and is the answer not in the manual?

Questions and answers

Summary of Contents for MULTIPRESS M6P Series

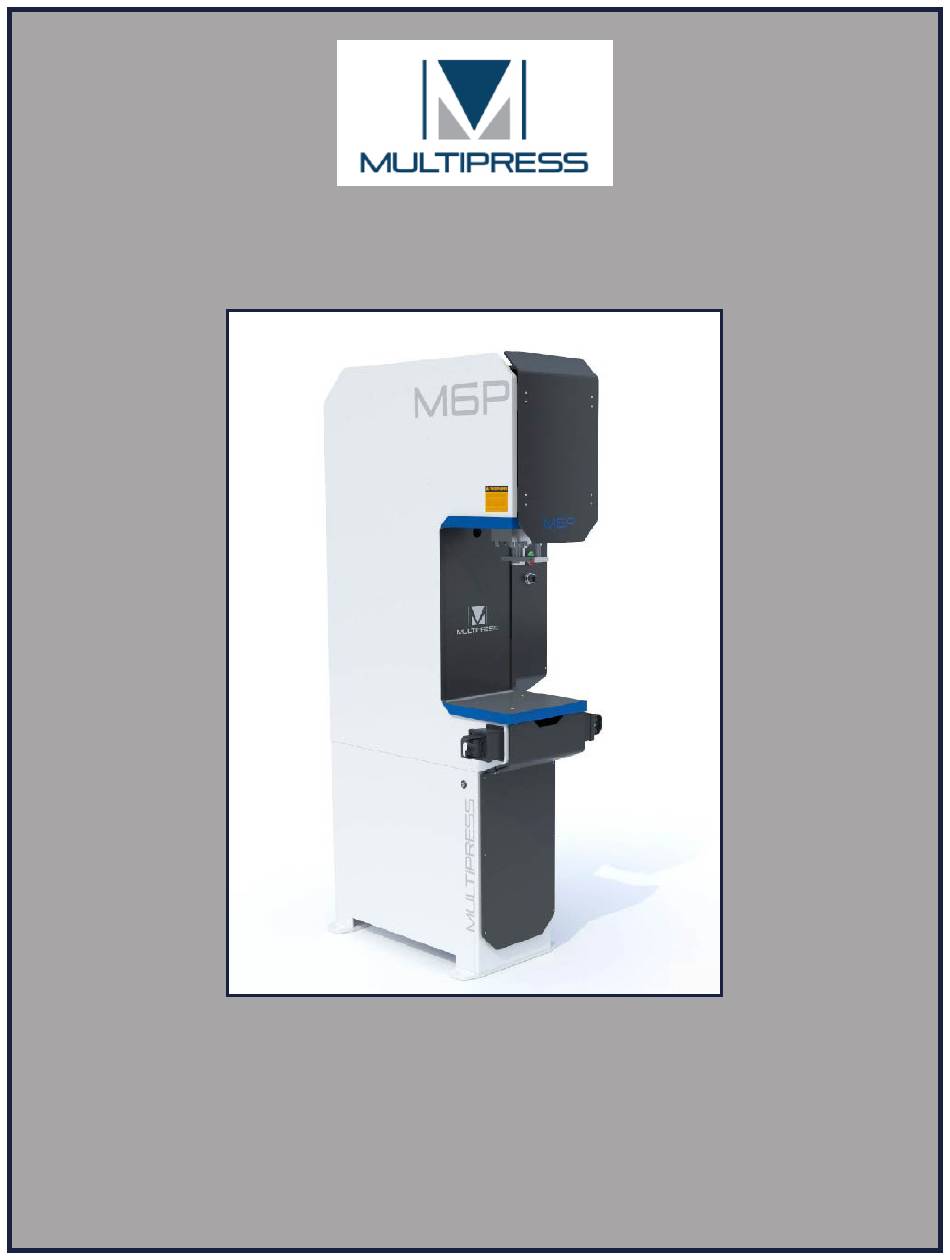

  • Page 1 HYDRAULIC EQUIPMENT OPERATING INSTRUCTIONS AND SERVICE MANUAL SERIES “M6P” 6 TO 20 TON Pacific Press Technologies/MULTIPRESS 714 North Walnut Street Mount Carmel, IL 62863 618-262-8666 sales@pacific-press.com October 6, 2023...
  • Page 3: Table Of Contents

    CONTENTS INTRODUCTION MANUAL SCOPE SERVICE POLICY MULTIPRESS EQUIPMENT WARRANTY SAFETY WARNING AND CAUTION TAGS SPECIFICATIONS INSTALLATION INSTALLATION INSTRUCTIONS ELECTRIC RECOMMENDED OIL SPECIFICATIONS FILLING THE OIL RESERVOIR SEQUENCE OF OPERATION STARTING THE PUMP AND MOTOR INCHING SET-UP CYCLING AIR IN SYSTEM...
  • Page 5: Introduction

    INTRODUCTION...
  • Page 6: Manual Scope

    MANUAL SCOPE This manual is intended as a reference when installing and preparing MULTIPRESS equipment for operation, and for normal maintenance and equipment repair. SERVICE POLICY The simplicity of MULTIPRESS equipment, the unitized construction of its major components, and observance of the instructions in this manual assure ease of servicing by the user.
  • Page 7: Warning And Caution Tags

    WARNING AND CAUTION TAGS Please observe the Caution, Warning, and Note tags on the press (reproduced below) and in this manual.
  • Page 8: Specifications

    SPECIFICATIONS UP STOP PROX. SW QUALITY CONTROL PROX. SW. TONNAGE CONTROL BANJO RAM END (M) APPROX. (B) STROKE (A) DAYLIGHT MOTOR START/STOP SELECTOR SWITCH THROAT DEPTH 3/8 NPT WATER CONN. DUAL OPTO TOUCH .31 THRU ALL FOR OPTIONAL COOLING 3/8-16 UNC THRU ALL COIL IF ORDERED ( I ) 4X ø...
  • Page 9 SPECIFICATIONS CONT. MODEL M6P-6 12.5 24.5 8.75 35.5 13.25 M6P-8 12.5 24.5 8.75 35.5 13.25 M6P-12/15 14.5 10.5 30.5 11.75 16.25 54.13 M6P-20 16.5 11.5 32.5 12.75 19.25 56.63 MODEL M6P-6 1.75 0.4375 1/4-20 7/8-9 M6P-8 0.4375 1/4-20 7/8-9 M6P-12/15 0.4375 1/4-20 7/8-9...
  • Page 10: Installation

    INSTALLATION...
  • Page 11: Installation Instructions

    RECOMMENDED OIL SPECIFICATIONS The warranty for MULTIPRESS equipment applies only when the proper hydraulic fluid has been used, and the oil contamination level is equal to, or better than NAS...1638...CLASS NO. 8 OR BETTER. NO PARTICLES OVER 200 MICRON. “New”...
  • Page 12: Filling The Oil Reservoir

    In the oil. EXTREME CARE should be exercised in maintaining a clean supply of oil in the reservoir and the hydraulic system of your MULTIPRESS equipment at all times. Make certain that no lint, dirt, abrasive scale, or other foreign materials enter the hydraulic system.
  • Page 14: Sequence Of Operation

    SEQUENCE OF OPERATION...
  • Page 15: Starting The Pump And Motor

    STARTING THE PUMP AND MOTOR IMPORTANT: Prior to start-up: 1. Start and stop the electric motor in order to check proper rotation. There are arrows clearly marked on the motor indicating the correct rotation. If this is incorrect, check the wiring to the motor leads. 2.
  • Page 16: Inching

    INCHING Set the selector switch to JOG DOWN. Simultaneously actuate and maintain actuation of both CYCLE START buttons to the desired position of the ram. Release of either button allows the ram to stop. Set the selector switch to JOG UP.
  • Page 17: Set-Up

    SET-UP JOG the press to your desired lower stop position allowing ram to exert full pressure against a set up block or workpiece. Adjust the pressure by loosening the relief valve LOCKNUT and turning the relief valve KNOB on front or side of press (clockwise increases pressure, counterclockwise decreases pressure).
  • Page 18: Cycling

    CYCLING Simultaneously actuate and maintain actuation of both CYCLE START buttons. The ram extends until the lower proximity switch (2PRS) (if provided) no longer senses the RAM GUIDE BAR, and reverses or the press contacts the work, pressures up, and reverses (pressure reversal). Release of the CYCLE START buttons before lower proximity switch (2PRS) is made, retracts the ram to its upper stop position.
  • Page 20 MAINTENANCE...
  • Page 21: General

    It is the responsibility of the user to maintain the MULTIPRESS equipment at all times in a day-to-day operation. The Manufacturer suggests that the following maintenance and service procedures be implemented and regularly practiced by the user.
  • Page 22 SCHEDULED MALFUNCTION ITEMS TO BE INSPECTED FRAME ELECTRIC MOTOR STARTER PUMPS VALVES GAUGES SWITCHES OPERATING CONTROLS TOOLING FEED AND/OR EJECTION MECHANICAL OIL LEAKS HYDRAULIC LINES - PIPE, TUBE, HOSE HYDRAULIC FITTINGS ELECTRICAL LINES - WIRE, CABLE, CONDUIT GASKETS, SEALS, & O-RINGS RAM PACKING OIL LEVEL TOO LOW OR TOO HIGH OIL CONTAMINATION TOO HIGH...
  • Page 24 INSPECTION...
  • Page 25: Daily Inspection

    DAILY INSPECTION Before operating MULTIPRESS equipment, each operator should make inspection checks indicated on Pages 26 and 27. These checks should be made after each shift change. In addition, the following inspection checks should be made by each operator before operating the press and after any break time.
  • Page 26 OPERATING NO. OF HYD. ELECT. MECH. INSPET. NOTES CYCLES LEAKS LEVEL TEMP COMP’S. COMP’S. COMP’S. DATE REMARKS...
  • Page 27: Periodic Inspection

    PERIODIC INSPECTION At the scheduled intervals in the table below, the users’ maintenance should check each of the items. In addition, each component of the PRESS should be checked for proper performance as follows: 1. Make sure that all devices function in accordance with the electrical circuit and sequence of operations.
  • Page 28 Contamination of hydraulic fluid Sample sent for analysis Either top-up with clean fluid or drain and clean reservoir. Replace with new fluid of correct specification. Reservoir air breather Visual Clean or renew element Hose clamps Suitable tools Tighten as required Hydraulic fluid filters if equipped Strip and check mechanisms seals, Replace as necessary according to manufacturers...
  • Page 30: Relief Valve Service

    RELIEF VALVE SERVICE...
  • Page 31 RELIEF VALVE OPERATION At times, the relief valve is prevented from satisfactorily operating by the presence of lint, pipe scale, or foreign matter. This may cause fluctuations of pressure or pressure failure. Quite often, this condition can be corrected by starting the pump, loosening the relief Valve Locknut, then turning the Relief Valve Knob counter-clockwise.
  • Page 33: Manifold Assembly

    MANIFOLD ASSEMBLY Figure 3...
  • Page 34: M6P Hydraulic Circuit

    M6P HYDRAULIC CIRCUIT Figure 4 CYCLE - DE-ENERGIZED SOL. 1 SOL. 2 SOL. 3 + ENERGIZED EXTEND RETRACT FAST IDLE FAST EXTEND RAM EXTEND, FULL PRESSURE RAM RETURN TO PROXIMITY SWITCH 1 SETTING JOG CYCLE JOG DOWN JOG UP...
  • Page 35: M6P Hydraulic Circuit Components

    M6P HYDRAULIC CIRCUIT COMPONENTS M6P HYDRAULIC CIRCUIT COMPONENTS ITEM QTY. DESCRIPTION PUMP/MOTOR ASSY MOTOR PUMP RELIEF VALVE ASSY RELIEF VALVE CHECK VALVE MANIFOLD PACKAGE CHECK VALVE SEQUENCE VALVE CHECK VALVE 30 PSI DIRECTIONAL VALVE 4-WAY DBL SOL REGEN SOL VALVE (OPT.) HYDRAULIC CYLINDER BORE STROKE...
  • Page 36: Positive Stop Assembly

    POSITIVE STOP ASSEMBLY To set the depth stop, perform the following: 1. Remove the COVER. 2. Set the DEPTH STOP NUT at the position you would like the MAIN RAM to stop. 3. Tighten the JAM NUT against the DEPTH STOP NUT. 4.
  • Page 38: Safety Procedures

    SAFETY PROCEDURES...
  • Page 39: Safety Procedures Checklist

    SAFETY PROCEDURES CHECKLIST Perform the following: 1. STOP THE HYDRAULIC POWER UNIT MOTOR AND INSERT SAFETY BLOCK BEFORE REACHING INTO THE DIE AREA. 2. Clean the bolster plate, dies, and press surface before installing dies. Misalignment caused by dirt, chips of metal or other foreign materials could result in injury to the operator or damage to press and dies.
  • Page 41: Troubleshooting

    TROUBLESHOOTING...
  • Page 42: Basic Troubleshooting

    BASIC TROUBLESHOOTING In the event of non-standard performance, use the table below. TROUBLESHOOTING PROBLEM POSSIBLE CAUSE RAM STARTS DOWN - NO FAST SEQUENCE VALVE 3D SET TOO LOW - DIFFERENTIAL APPROACH INCREASE THE SETTING RAM APPROACH AND RETURN SPEEDS ARE DIRECTIONAL VALVE 3C IS NOT OPERATING - 1/3 OF NORMAL CHECK 3SOL OR VALVE SPOOL...
  • Page 44 General Inquiries: Multipress, Inc. 714 North Walnut Street Mount Carmel, IL 62863 618-262-8666 sales@pacific-press.com Parts and Service Inquiries: 618-262-8666, ext. 2283 parts@pacific-press.com...

This manual is also suitable for:

M6p-6M6p-8M6p-12M6p-15M6p-20
