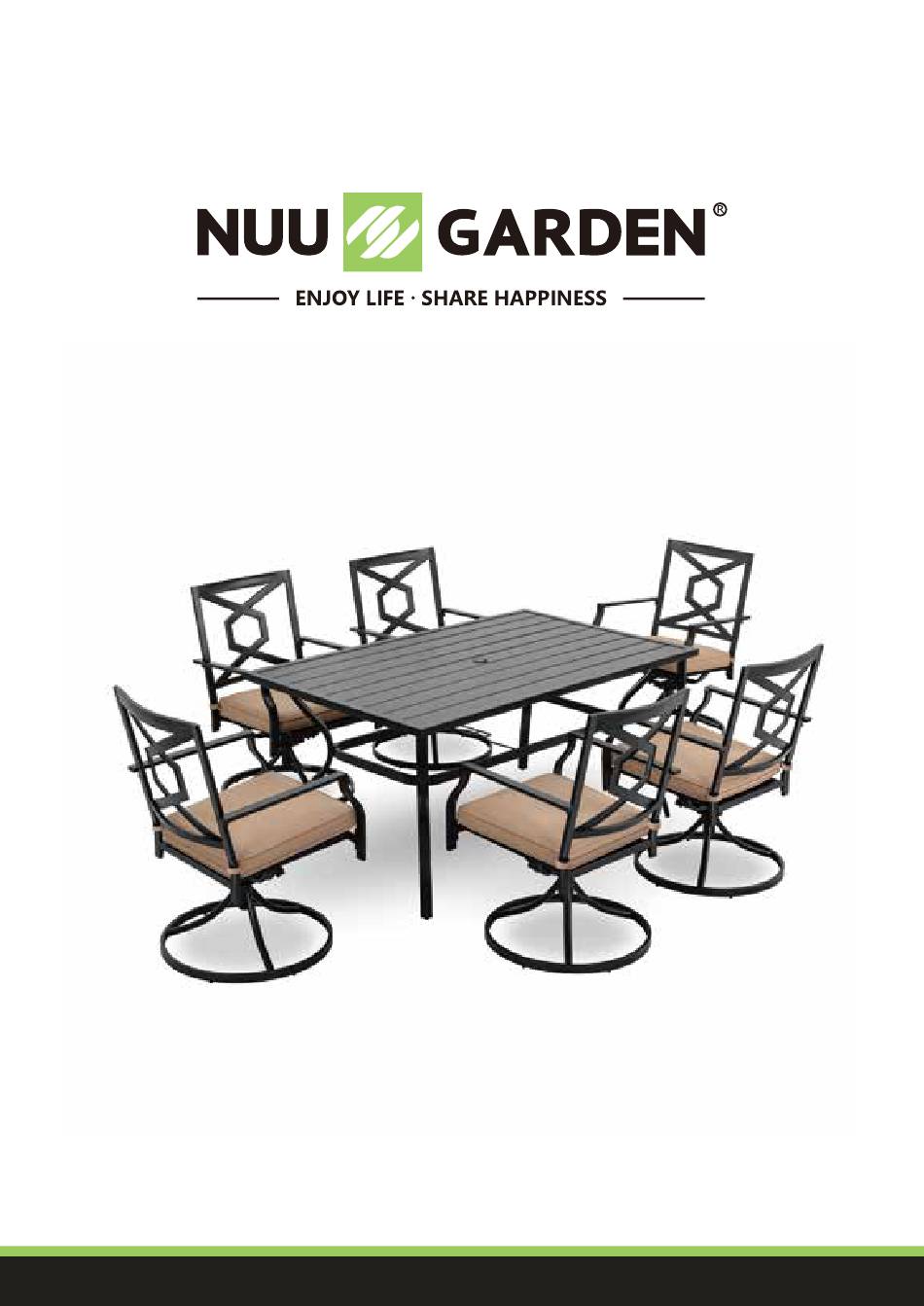

- Page 1 INSTRUCTION MANUAL 7PCS Iron Dinning Set SD151S-T3WZC...
- Page 2 INTRODUCTION Thanks for purchasing and trusting NUUGARDEN with your home decorating plans. This product is a furniture designed and made by NUUGARDEN Corp. diverse choice of outdoor collection. customer service at (800) 257-7108 or send an email to service@nu- contact us and they will be sent to you immediately. This furniture is intended for indoor and outdoor use.
- Page 3 Images Part Qty. Number Sizes M6*12 M8*35...
- Page 4 ASSEMBLY INSTRUCTIONS CAVEAT STEP 1 Attach the seat (C) to the base (D) with 4 bolts (G), 8 washers (I &J), 2 pad plates (E) and 4 nuts (K). Do not screw down.
- Page 5 ASSEMBLY INSTRUCTIONS CAVEAT STEP 2 Attach the right (AR) and left armrest (AL) to the seat with 4 washers (H) and 4 bolts (F). Do not screw down. Attach the Back (B) to the right and left armrest with 6 washers (H) and 6 bolts (F). Do not screw down.
- Page 6 Images Part Qty. Number Sizes M6*15 M6*28...
- Page 7 ASSEMBLY INSTRUCTIONS CAVEAT STEP 1 Attach 4 legs (B) to table top (A) using 8 washers (F) and 8 bolts(D). Do not screw down.
- Page 8 ASSEMBLY INSTRUCTIONS CAVEAT STEP 2 Upon completion of full assembly and bolted up-all screws can be tightened down.
-
Page 9: Care And Maintenance
CARE AND MAINTENANCE Follow the instruction for the material of your special product to make sure that it stays in the best shape for as long as possible. The information below • Only need to rinse it thoroughly with clean water to wash away dirt and the surfaces and leave behind scratch marks. -
Page 10: Customer Service
CUSTOMER SERVICE Thanks for purchasing this NUUGARDEN furniture. We are here to help you Please do not hesitate to contact our customer service when you have any questions regarding assembly or accessories. Tel: (800) 257-7108 Web: http://www.nuugarden.com E-mail: service@nuugarden.com... - Page 11 NUUGARDEN USA Nuu Garden Corp. Add: 6366 Corley Road, Norcross GA 30071. Tel: (800) 257-7108 Web: http://www.nuugarden.com E-mail: service@nuugarden.com...
