Summary of Contents for Nuu Garden DS003

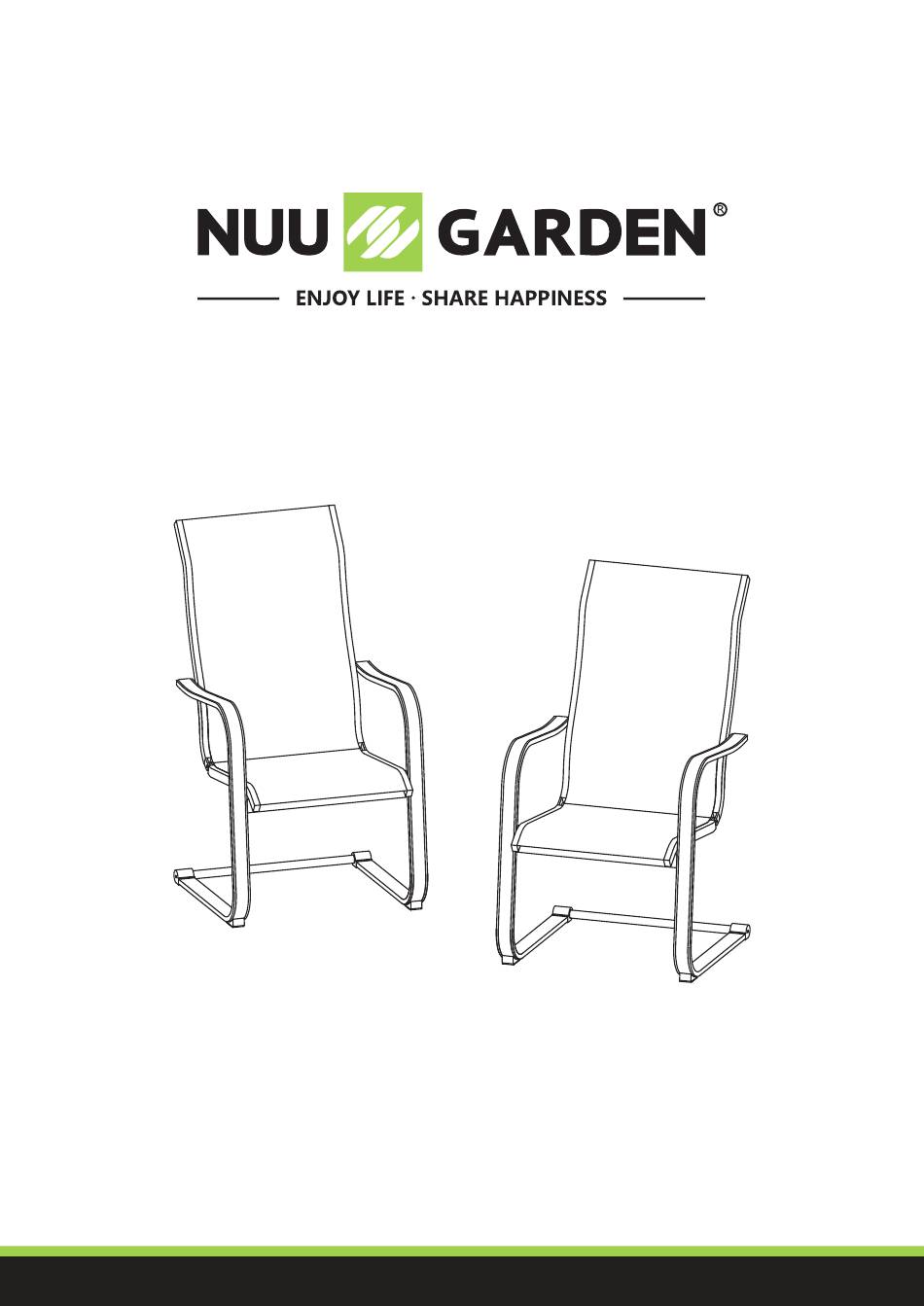

- Page 1 INSTRUCTION MANUAL 2PCS Textilene Dining Chairs DS003...
- Page 2 INTRODUCTION Thanks for purchasing and trusting NUUGARDEN with your home decorating plans. This product is a furniture designed and made by NUUGARDEN Corp. We are committed to R&D innovation and creating the most refined, diverse choice of outdoor collection. After unpacking and before every use, check whether the item shows any damages.
- Page 3 Images Part Qty. Number Sizes M6*12 M6*18 M6*30...
- Page 4 ASSEMBLY INSTRUCTIONS CAVEAT Note: Please do not tighten any bolt until all bolts have been put into right place. If you tighten one bolt, it maybe cause other bolts out of position. STEP 1 Attach the left armrest (A) to the seat frame (C) using 1 bolt and 1 washer (G). Attach the left armrest (A) to the support bar (D) using 2 bolts and 2 washers (F). Do not screw down.
- Page 5 ASSEMBLY INSTRUCTIONS CAVEAT Note: Please do not tighten any bolt until all bolts have been put into right place. If you tighten one bolt, it maybe cause other bolts out of position. STEP 2 Insert the suppart bar (E) to the left armrest (A). Attach the left armrest (A) to the seat frame (C) using 1 bolt and 1 washer (H). Do not screw down.
- Page 6 ASSEMBLY INSTRUCTIONS CAVEAT Note: Please do not tighten any bolt until all bolts have been put into right place. If you tighten one bolt, it maybe cause other bolts out of position. STEP 3 Attach the right armrest (B) to the seat frame (C) using 2 bolts and 2 washers (G & H). Attach the right armrest (B) to the support bar (D) using 2 bolts and 2 washers (F). Attach the suppart bar (E) to 2 armrests (A &...
- Page 7 ASSEMBLY INSTRUCTIONS CAVEAT Note: Please do not tighten any bolt until all bolts have been put into right place. If you tighten one bolt, it maybe cause other bolts out of position. STEP 4 Upon completion of full assembly and bolted up-all screws can be tightened down.
-
Page 8: Care And Maintenance
CARE AND MAINTENANCE Follow the instruction for the material of your special product to make sure that it stays in the best shape for as long as possible. The information below is only intended as a general guideline. For more information, please contact •... -
Page 9: Customer Service
CUSTOMER SERVICE Thanks for purchasing this NUUGARDEN furniture. We are here to help you maximize your enjoyment and appreciation of it. Please do not hesitate to contact our customer service when you have any questions regarding assembly or accessories. Add: 6366 Corley Road, Norcross, GA 30071. Tel: (800) 257-7108 Web: http://www.nuugarden.com E-mail: service@nuugarden.com... - Page 10 NUUGARDEN USA Nuu Garden Corp. Add: 6366 Corley Road, Norcross GA 30071. Tel: (800) 257-7108 Web: http://www.nuugarden.com E-mail: service@nuugarden.com...
