sielco EXC-GX Series Quick Setup Manual

(12)

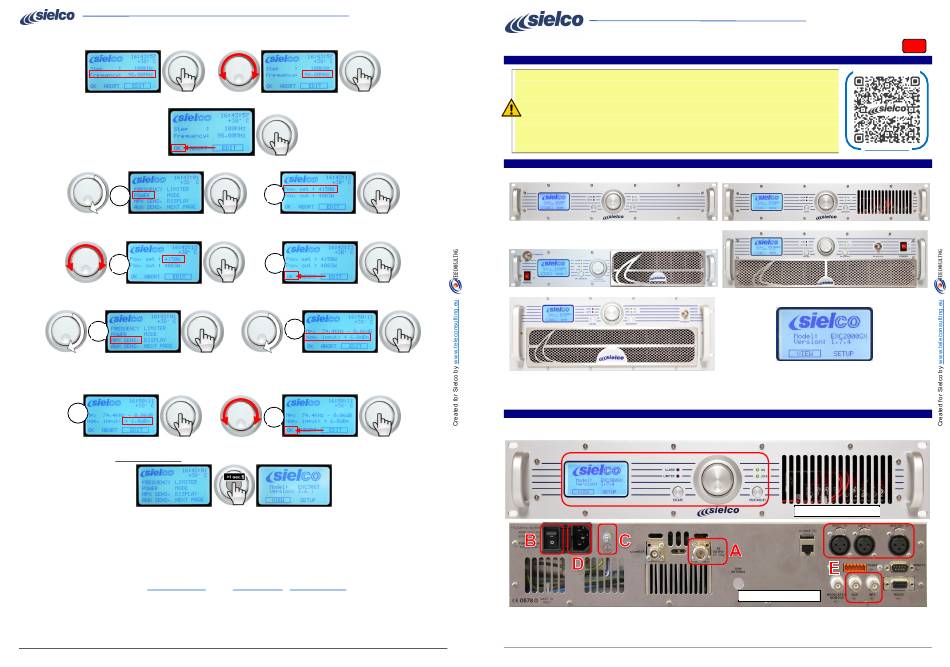

The Frequency value will be highlighted. Press the knob to enter the submenu, then rotate it until you reach the exact desired operating
frequency. Press the knob to confirm the frequency.
(13)
OK will be highlighted. Press the knob to confirm.
(14)
Turn the knob to select POWER, then press it to enter the menu.
14
(15)
The Pow. Set (power adjustment) value will be highlighted. Press the knob to enter the submenu.
(16)
Turn the knob to set the desired power, then press the knob to confirm.
16
(17)
OK will be highlighted. Press the knob to confirm.
(18)
Turn the knob to select MPX SENS. (modulation sensitivity), then press it to confirm.
18
(19)
The modulation sensitivity adjustment screen will be displayed. Turn the knob to enter the Nom. Input (nominal modulation input level)
submenu, then press the knob.
(20)
The value after Nom. input will be highlighted, normally set as default to +6.0 dBm. Turn the knob to change the value according to the
modulation level used, then press the knob to confirm.
20
(21)
OK will be highlighted. Press the knob to confirm.
(22)
Press and hold the knob for at least one second to exit the SETUP menu and return back to the main menu again.
Via Toscana, 57/59 - 20090 - Buccinasco (MI) - ITALY
Tel. +39-02-45713300 Fax +39-02-45713351
e-mail: info@sielco.org
EXC-GX Series Quick Installation Guide
EXC-GX Series exciters
15
17
19
21
Sielco Srl
- PEC: sielco@pec.it - www.sielco.org
Rev. 2.2
•
This guide does not fulfill all the prescriptions and functions indicated in the manual and does not replace it.
•
The electrical system to which the device is connected must comply with the regulations.
•
Before connecting or using the device, or performing maintenance, carefully read the instructions contained in
the user manual in the order in which they are written. The manual can be downloaded from our website via the
QR code or the link on the side.
•
The installation, use and maintenance of this appliance should only be done by qualified technicians.
•
Improper use and installation of this appliance could cause even serious damage to properties and people.
•
Always observe the laws and regulations on the use of broadcast transmitters in force in the geographical area in
which you are located.
Each version is made in a different rack unit. These images allow you to identify your exact equipment.
In addition, the default screen that appears when the transmitter is turned on shows the exact model after "Model": which in the example above is
EXC2000GX.
The images below show the EXC100-300GX models. The controls and connectors of the entire EXC-GX series have the same name.
However, they may have a different position depending on the model. Therefore, always refer to the name of the command/connector.
Rev. 2.2
Page. 4 of 4
Q UI CK S E T U P GU I D E
S A F E T Y F I R S T
I D E N T I F Y I N G Y O U R V E R S I O N & M O D E L
EXC30GT
EXC500÷1600GX
EXC3000-5000GX
C O M M A N D S & C O N N E C T O R S
EXC100-300GX - rear
EXC-GX Series exciters
ENG
MANUAL DOWNLOAD
www.sielco.org
EXC100-300GX
EXC2000GX
EXC100-300GX - front
Page. 1 of 4
