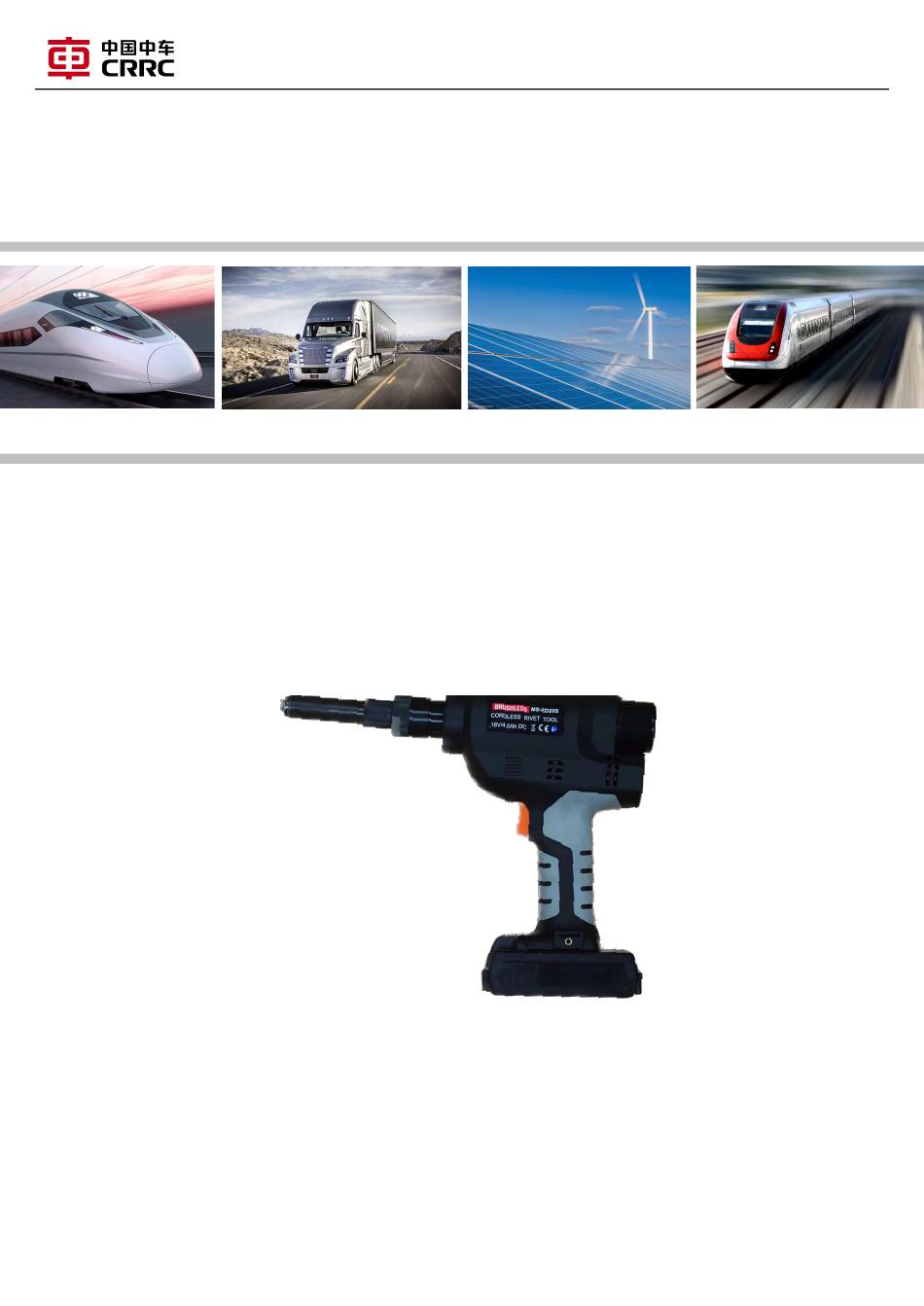

- Page 1 眉山中车紧固件科技有限公司 Battery Installation Tool (MS-ZD20S) Operation&Maintenance Manual 眉山中车紧固件科技有限公司 MEISHAN CRRC FASTENING SYSTEM CO.,LTD.
- Page 2 Important! In order to ensure the operation safety and avoid any hidden danger, please obey the following safety operation rules: Please read this entire manual carefully. Meishan CRRC Fastening System Co., Ltd.(hereinafter referred as Meishan) assumes no liability for any fire or severe injury caused by failing to follow the instructions provided hereinafter or any damage or personal injury resulted from lack of maintenance or improper operation.
- Page 3 眉山中车紧固件科技有限公司 holding the battery tool or inserting the battery, if the fingers close to power switch and let it to open position, it may cause accident. d. Don’t open battery, otherwise it will cause danger of short circuit. Keep the battery away from heat sources (such as long-term solar radiation) and fire sources, if the battery closes to heat sources or fire sources, it will explode.
- Page 4 眉山中车紧固件科技有限公司 Specification MS-ZD20S Battery Installation Tool ·Application: Monotail ·Body weight: 1.8 kg (not include battery) ·Circle: 1.2 S ·Working pull: 20000 N ·Rivet stroke: 23 mm ·Motor: 18V DC motor ·Battery: 18V DC 5.0 Ah Charger/Battery Pack Battery Pack Charger ·Nominal voltage: 18 V...
- Page 5 眉山中车紧固件科技有限公司 Battery Installation and Removal The battery is equipped with the locking press-button. Inserting the battery into battery tool and pressing the locking press-button until it’s firmly locked. Pressing down the locking press-button to remove the battery from battery tool. Do not remove battery directly and hard.
- Page 6 眉山中车紧固件科技有限公司 Jaw Assembly A.（h）Connecting shaft （f）Snap ring （g）Jaw B. To rotate the jaw (g) which needs to be replaced into thread of connecting shaft (h) along clockwise direction, and let the end face of jaw (g) fully fit with front step surface of connecting shaft (h). C.
- Page 7 眉山中车紧固件科技有限公司 Tool Nose Assembly A.（b）Limit fixing sleeve（a）Fixing sleeve（d）Limit sleeve（i）Connecting shaft（c）Adjusting sleeve B. The nose assembly equipped with anvil shall be installed on the tool which has been equipped with jaw, the operator shall pay attention to the connection between limit sleeve (d) and connecting shaft (i), then, put the fixing sleeve (a) into adjusting sleeve (c) and tighten by wrench.
- Page 8 眉山中车紧固件科技有限公司 Optimization of The Battery · The battery shall not be affected with damp or water. The battery can only be placed in environment with temperature from 0℃-45℃. ·Do not leave the battery in the car, especially in summer. · Lithium ion battery: Do not dispose of waste batteries in the same way as household waste. Do not throw batteries into water or fire.
- Page 9 眉山中车紧固件科技有限公司 MEISHAN CRRC FASTENING SYSTEM CO.,LTD. Add：#821, 2 Rd of Sci-tech Zone, Dongpo district, Meishan City, Sichuan Province, China Tel：0086 185 8383 5723 0086 28 38283773 Fax：0086 28 38164262...
