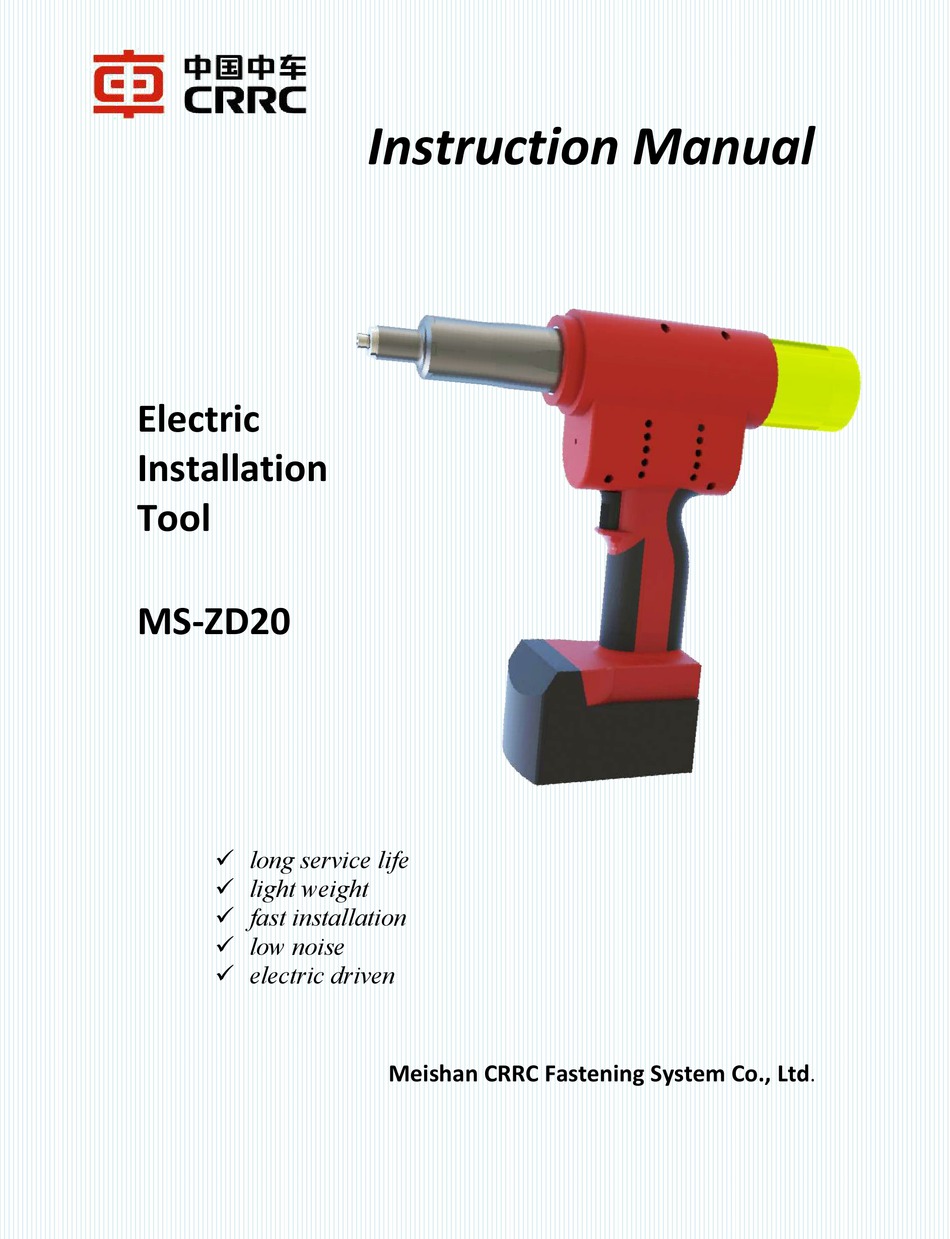

- Page 1 Instruction Manual Electric Installation Tool MS-ZD20 long service life light weight fast installation low noise electric driven Meishan CRRC Fastening System Co., Ltd...
-
Page 2: Table Of Contents
Work with You to Connect the World Contents 1. Safe..............................1 1.1 Work Site........................... 1 1.2 Electrical safety..........................1 1.3 Personal Safety.......................... 1 1.4 Maintenance Safety........................2 1.5 Specific Safety Rules........................2 2. Product data............................ 3 2.1 Specification..........................3 2.2 Overall Dimensions........................4 3. -
Page 3: Safe
1. Safe Please read all this manual carefully. Meishan CRRC Fastening System Co., Ltd.(hereinafter referred as Meishan) assumes no liability for any fire or severe injury caused by failing to follow the instructions provided hereinafter or any damage or personal injury resulted from lack of maintenance or improper operation. -
Page 4: Maintenance Safety
accident which may cause severe personal injury. Remove the battery immediately when trigger cannot turn on/off the tool. g. Remove the battery before any adjustment, accessory replacement or storage of the electric tool. h. Keep tools away from child. People who do not understand tool is not allowed to use the tool. -
Page 5: Product Data
2. Product data Independently developed by Meishan, The electric tool MS-ZD20 is able to install 2.4-6.4mm rivets. It provides ideal, convenient and effective installation. The battery is able to stall at least 500 pieces of rivets. 2.1 Specification P.N. of Tool... -
Page 6: Overall Dimensions
2.2 Overall Dimensions Overall dimensions of MS-ZD series products: Dime nsion pone 2.3 Product Structure and Nomenclature MS-ZD20 electric riveting tool 1. Anvil (nose assembly) 2. Jaw (nose assembly) Anvil socket (nose assembly) 4. Collect Assembly (nose 5. Sensor (nose assembly) 6. -
Page 7: Operation
3. Operation 3.1 Before Startup a. Inspect the connection of moving parts. b. Inspect the connection of pintail collector. c. Inspect the battery. 3.2 Assembly of Electric Tool STEP1: Thread the nut sleeve into front of cylinder until the end. STEP2: Push the sensor to cylinder;... -
Page 8: Standard Of Riveting
3.3 Standard of Riveting Standard of installed rivet: completely deformed collar and complete pintail. Qualified Unqualified Unqualified 3.4 Sequence of Installation a. Thread the collar until the pintail fully exposed. b. Insert the tool, and make sure the jaw catch on proper area of pintail. c. -
Page 9: Typical Incorrect Operation
3.5 Typical incorrect operation Standard operation is required to avoid any accident. Please follow the figure below, otherwise, the incorrect operation shown below may lead to fail of installation, damage to tool’s moving parts, even personal injury. Incorrect operation (Jaw catch on Correct operation incorrect area) -
Page 10: Caution
4. Maintenance 4.1 Caution a. Remove the battery before inspection or maintenance. b. Do not use gasoline, benzene, diluent, alcohol or similar substances to clean tool. Otherwise, it may cause the tool to change color, deform or crack. c. Contact Meishan or its authorized service center for tool’s repair and maintenance. -
Page 11: Replacement Of Other Components
4.5 Replacement of Other Components In case of any damage to other parts and components, please contact the client service center of Meishan CRRC Fastening System Co., Ltd. We will always be at your service 24 hours a day. 4.6 Recycle of Battery and Tool Do not abandon the used battery, Meishan will provide discount on next purchasing if user return the used battery or tool. -
Page 12: Troubleshooting Guidance
5. Troubleshooting Guidance Problem Cause Solution Battery run out. Charge the battery. No battery equipped. Re-install the battery. Tool fails Or improper equipped battery. operate when trigger The battery is damaged. Replace the battery. pressed. Overheat of battery. Turn off tool and use it latter Re-install the battery and restart Electrical failure the program. - Page 13 Excessive high force of tool; Adjust the force Pintail broken. Deformed jaw; Replace the jaw Improper operation. Correctly operate Overheat of battery. Turn off tool and use it latter Tool stops Improper anvil equipped Replace the anvil advance Lower force or travel than Set the correct force or travel.
