Tyrin balPen Kits Assembly Instructions

Required Accessories:

• 7mm, Mandrel Pin
• 10.5mm Drill
• 12.5mm Drill
• Bushing Set BU2001a
• Penmill PM014 and PM016

PREPARING THE BLANKS

1. Cut the blanks slightly longer than the tubes.
2. Drill the holes.
Drill a 12.5mm hole lengthwise through the center of the shorter blank that is in front of the cap.
Then drill a hole with a 10.5mm length through the center of the longer blank that will be for the pen
body.
3. Glue tubes into the blanks
4. Cut blanks to length with the penmill or by sanding.
Fig. 1

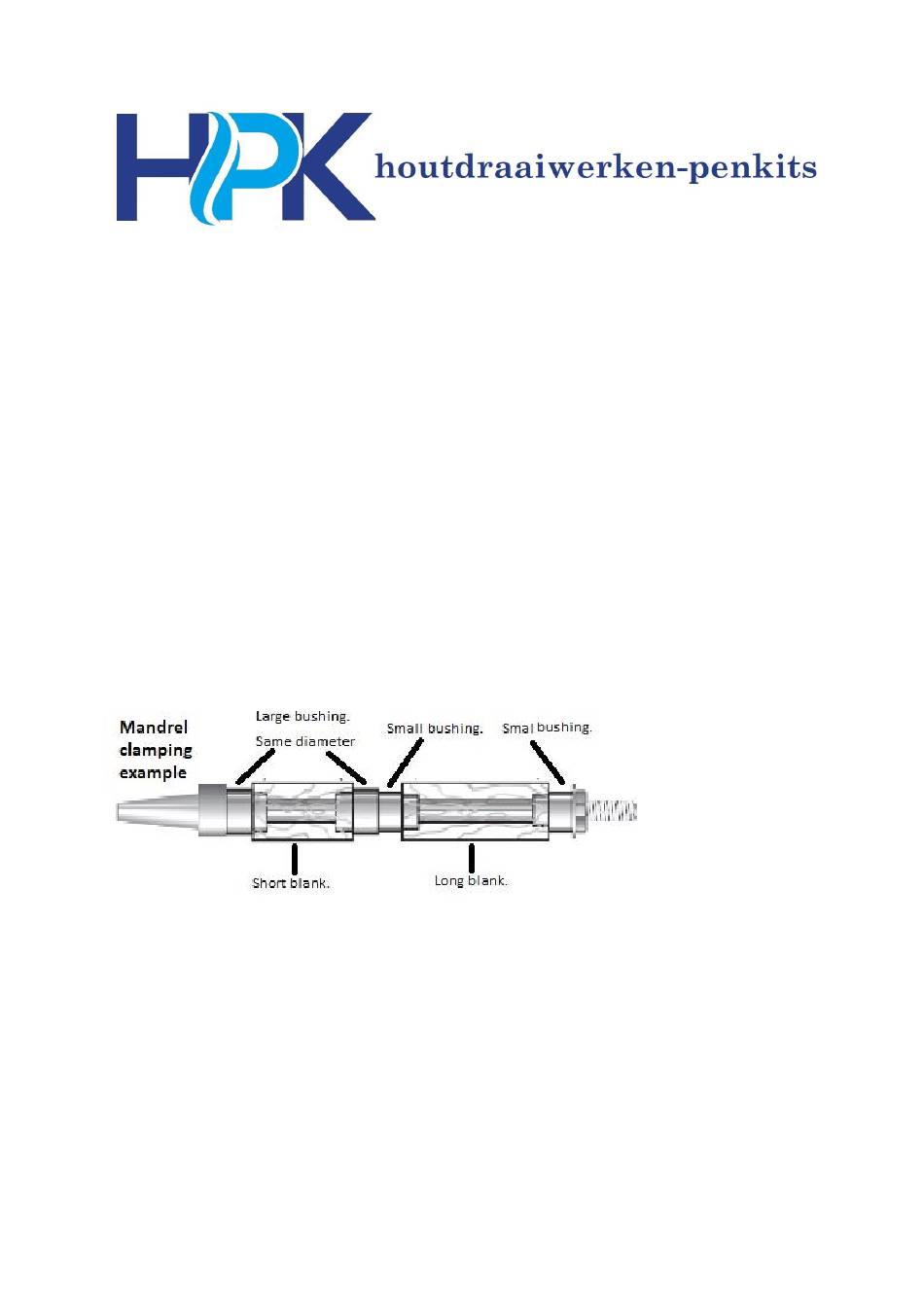

5. The penmandrel preparation.
This pin uses a set of four bushings BU2001a.
6. Now you can rotate the blanks
Afb, 2
houtdraaiwerkenpenkits@gmail.com • www.houtdraaiwerken-penkits.nl
