Farmer Pen Kit Assembly Instructions

Required Accessories:

• 7mm, Mandrel Pin
• 9.6mm Drill
• Bushing Set BU575
• Penmill PM013

PREPARING THE BLANKS

1. Cut the blanks slightly longer than the tubes.
2. Drill the holes.
3. Glue tubes into the blanks
4. Cut blanks to length with the penmill or by sanding.

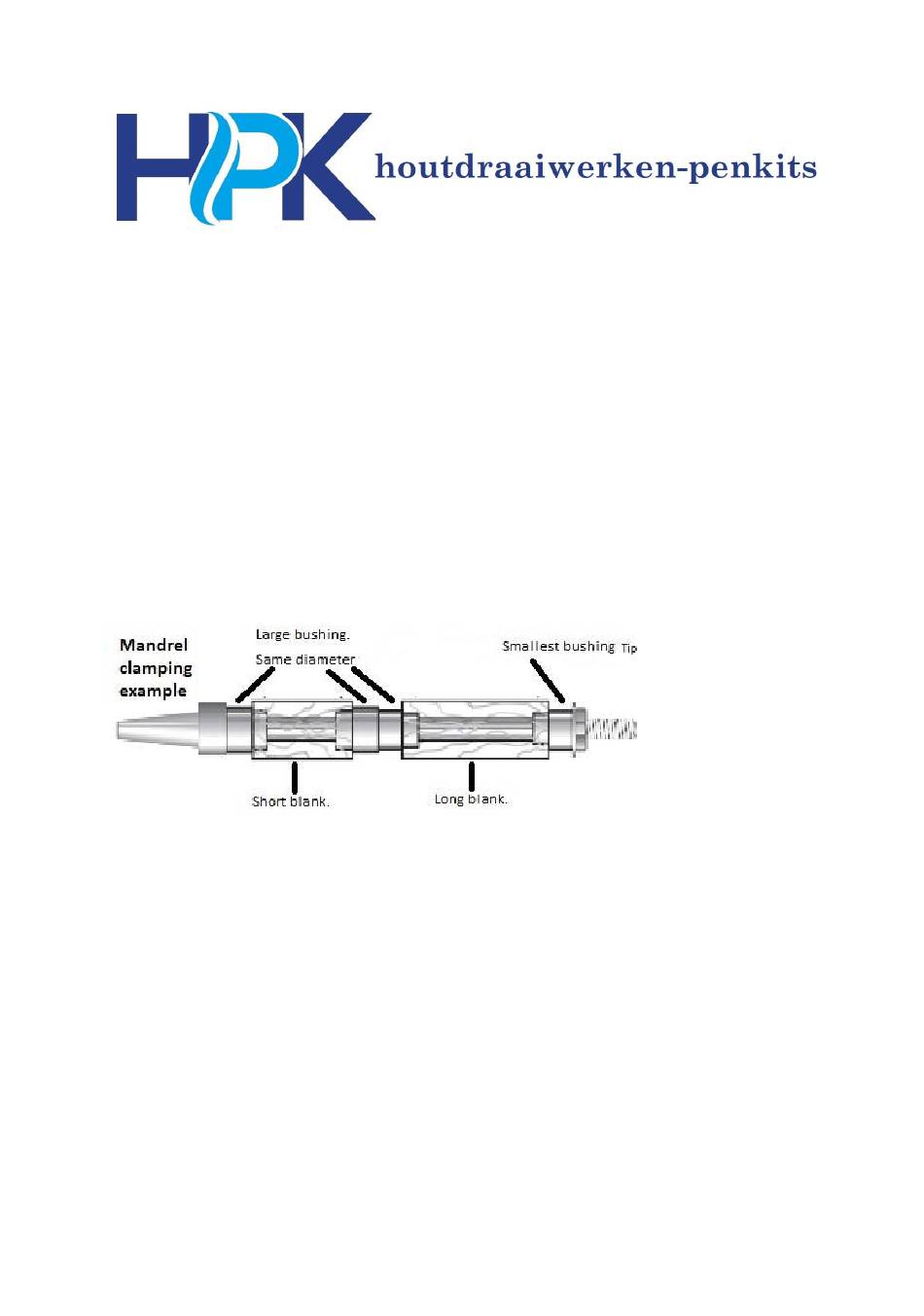

Fig. 1
5. The penmandrel preparation.
This pin uses a set of four bushings BU575, three of the bushings are the same diameter. One
bushing is thinner. This one is for the Tip
So the placement of the bushings is crucial. See Fig, 1 above.
6. Now you can rotate the blanks
Afb, 2
houtdraaiwerkenpenkits@gmail.com • www.houtdraaiwerken-penkits.nl

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Farmer Pen Kit and is the answer not in the manual?

Questions and answers

Related Manuals for HPK Farmer Pen Kit

Summary of Contents for HPK Farmer Pen Kit

  • Page 1 Farmer Pen Kit Assembly Instructions Required Accessories: • 7mm, Mandrel Pin • 9.6mm Drill • Bushing Set BU575 • Penmill PM013 PREPARING THE BLANKS 1. Cut the blanks slightly longer than the tubes. 2. Drill the holes. 3. Glue tubes into the blanks 4.
  • Page 2 7. Assembly assemble all parts as shown in the photo. 1. Slide the center band onto the transmission adapter and then press it onto the long tube 2. Press the tip coupler into the long tube on the side where the tip will be. 3.
