Summary of Contents for Onlogic PS1000-1

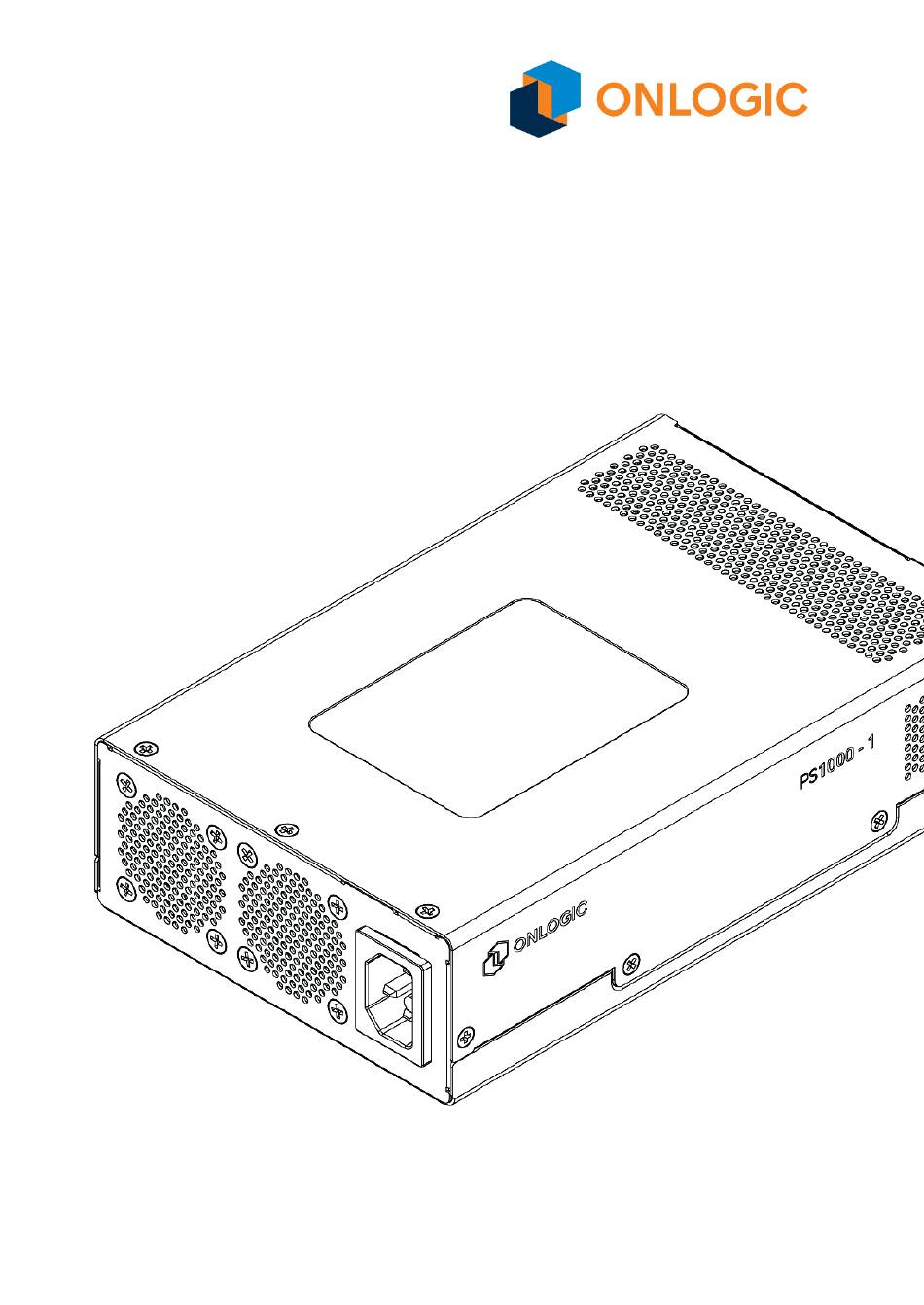

- Page 1 PS1000-1 Product Manual...
-
Page 2: Table Of Contents
Table of Contents 1 - System Overview 1.1 System Introduction 1.2- In-box Accessories 1.3 - Product Specifications 1.4 - Exterior Features and Dimensions 1.4.1 Wall Mounting Exterior Features and Dimension 1.4.2 DIN Mounting Exterior Features and Dimension 1.5 Input Electrical Specifications 1.6 Output Electrical Specifications 1.7 Output Indicator light 1.8 Thermal Derating... -
Page 3: System Overview
AC power cord. The PS1000-1 provides adaptability to users through its unique mounting options and electrical connections. The power supply can rest on a flat surface using rubber feet, wall mount with included brackets, and even DIN mount inside electrical enclosures. -
Page 4: Product Specifications
Molex to terminal block adapter ● 1.3 - Product Specifications Model PS1000-1 7.87" x 5" x 2" System Dimensions 200 x 127 x 52 mm 7.7 lbs System Weight 3.5 kgs Operating Temperature: -20-70C *see derating Operating Environmental Operating Humidity: 10% - 90% (non-condensing) -
Page 5: Exterior Features And Dimensions
IEC/UL/EN 62368-1 + CB Scheme IEC 60068-2-64 Vibration Test (10grms 5-500Hz) IEC 600068-2-27 Shock (30G 18ms / 50G 11ms) MIL-STD-810G Method 514.6 Vibration Test MIL-STD-810G Method 516.6 Shock Test (40G saw) USA, Canada, Mexico, Europe, UK, Australia, New Countries Zealand, China, Taiwan, India, Japan 1.4 - Exterior Features and Dimensions... -
Page 6: Wall Mounting Exterior Features And Dimension
1.4.1 Wall Mounting Exterior Features and Dimension... -
Page 7: Din Mounting Exterior Features And Dimension
1.4.2 DIN Mounting Exterior Features and Dimension 1.5 Input Electrical Specifications Characteristic Minimum Typical Maximum Units Notes Voltage Vrms 100-240 Frequency 50-60 Arms @115 VAC Current Arms @230 VAC 115Vac @25°C Inrush current 230Vac @25°C Leakage current Measured at 230 VAC Power factor >0.95 230Vac @ 1000 W output... -
Page 8: Output Electrical Specifications
1.6 Output Electrical Specifications Characteristic Minimum Typical Maximum Units Notes Voltage Load 20.83 Power 1000 Derated to 500 W @ 70°C Peak Load Up to 15ms duration Regulation Line Regulation With 0.1uF and 10uF across Ripple and Noise output. 20MHz BWL Hold up time Output within 5% @ 800 W Power on time... -
Page 9: Output Indicator Light
1.7 Output Indicator light The PS1000-1 has a LED indicator which indicates the status of the 48V DC output. The LED should be strongly lit. A dim or flickering LED indicates a potential problem on the output. -
Page 10: Thermal Derating
1.8 Thermal Derating 1.9 Input Voltage Derating... -
Page 11: Connectors
2 - Connectors The attached DC output cable is terminated with an eight pin Molex connector (Molex 39-01-2085). The pinout is provided below. Mate with Molex 39-01-3089 or connector from a similar series. DC - DC + 4-Pin DIN power pinout The adapter pictured below is included with the power supply. -
Page 12: Mounting Instructions
3 - Mounting Instructions 3.1 - Wall Mount & DIN Rail Mounting PS1000-1 has optional Wall Mount brackets (included) and DIN Rail mounting brackets (SKU : MTD102) available for purchase For Wall Mounting, follow steps below : Step 1: Remove rubber mounting feet. Retain the screws and discard rubber washers. - Page 13 Note: The mounting brackets are required to support 3x the hanging weight of the system. The mating surface and hardware must be capable of supporting the same load.
-
Page 14: Protection Features
4 - Protection features 4.1 Over Voltage Protection +48V output: Over voltage protection>115% (no lower than 115% and no higher than 140%) Protection type: latch-mode over voltage protection 4.2 Over Current Protection Overcurrent protection >130% of nominal current (no lower than 130% and no higher than 160%) Protection type: recovers automatically after fault condition is removed 4.3 Over Temperature Protection Environment temperature 55℃~70℃... -
Page 15: Appendices
5. Appendices 5.1 Appendix A: Regulatory Compliance 5.1.1 CE Statement The power supply complies with the relevant IT equipment directives for the CE mark. Modification of the power supply may void the certifications. The product was tested as a Class A device intended for industrial / commercial settings. -
Page 16: Ukca
5.1.4 UKCA The computer system was evaluated for EMC standards as a class A device. The computer complies with the relevant IT equipment directives for the UKCA mark. 5.1.5 VCCI This is a Class A product based on the standard of the Voluntary Control Council for Interference (VCCI). - Page 17 本產品適用於熱帶氣候條件使用。 l 本產品允許最大工作環境溫度是70℃。 l 警告：為避免電磁干擾，本產品不應安裝或使用於住宅環境。 設備名稱： 電源供應器 ，型號（型式）：PS1000-1 限用物質及其化學符號 多溴聯苯 單元Ｕnit 六價鉻 多溴二苯醚 Polybromin Hexavalent Polybrominat 鉛Lead 汞Mercury 鎘Cadmium ated chromium ed diphenyl (Pb) (Hg) (Cd) biphenyls ethers (PBDE) (PBB) ○ ○ ○ ○ ○ 外殼/ case ○ ○ ○...
-
Page 18: Appendix B: Safety Precautions, Safeguards & Information
Symbols used: Indoor use only The appliance shall not be disposed together with the normal waste. It must be recycled. 5.2 Appendix B: Safety Precautions, Safeguards & Information Do not open and modify the device! The device complies with various national and international Safety, EMC and Environmental requirements per various standards. -
Page 19: Précautions Et Guide D'installation
18. This device is intended for indoor operation only. 5.2.2 Précautions et guide d’installation Lisez l'intégralité du manuel avant d'utiliser le produit. Installez l'appareil en toute sécurité selon les instructions du manuel de l'utilisateur. Des précautions doivent être prises lors de la manipulation de l'appareil pour éviter de se blesser ou d'endommager l'appareil.
