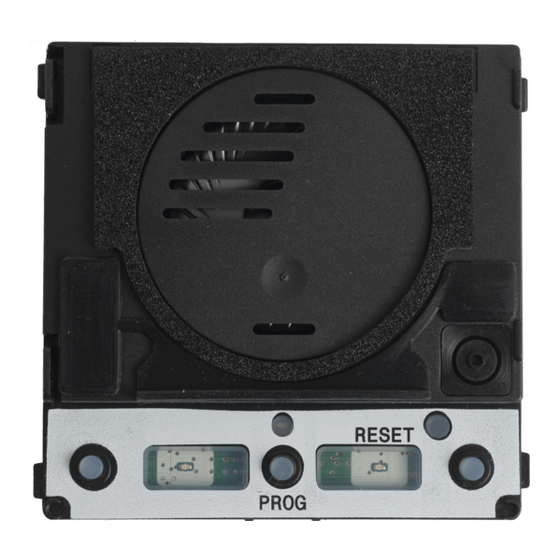

- Page 1 Audio GSM module for modular plate FB00885-EN MTMA/GSM PROGRAMMING MANUAL EN English...
-
Page 2: General Precautions
General precautions Read the instructions carefully before beginning the installation and carry out the actions as specified by the manufacturer. • The installation, programming, commissioning and maintenance of the product must only be carried out by qualified tech- • nicians, properly trained in compliance with the regulations in force, including health and safety measures and the disposal of packaging. -
Page 3: Commissioning The Device
Call the telephone numbers associated with group 4. Call the first number in group 4, if there is no answer, call the second number in group 4, if there is no answer, etc. Call the telephone numbers associated with group 6. Call the first number in group 6, if there is no answer, call the second number in group 6, if there is no answer, etc. -
Page 4: Programming Via Sms
OPERATIONS THAT CAN BE CARRIED OUT FROM THE TELEPHONE During the conversation between the telephone and the entry panel, it is possible to carry out the following operations using the telephone keypad: 1 2 3 Increase the speaker volume Increase the microphone volume 4 5 6 Lower the speaker volume Lower the microphone volume... - Page 5 Alternatively, an individual SMS can contain a series of commands, each preceded by the symbol , on condition that the length of the SMS does not exceed the maximum number of characters permitted for a single SMS. If the programming SMS contains more than one parameter, these must always be preceded by the symbol Example of SMS with chain of numerical commands and parameters: 0 0 0 0 # 2 0 .
- Page 6 Functions and list of programming commands Each command or group of commands SMS must be preceded by the password and end with Function carried out by command Code Content of SMS 1. Changing the password. .New password 2. Associating a telephone number with a group. .Group.
- Page 7 Description of individual programming commands Warning: Each programming SMS must be preceded by the password and end with the symbol ( for example 0 0 0 0 # An SMS that is not composed in the correct way will result in the command not being carried out. 1.
- Page 8 5. Associating a call number code (to be entered on MTMKB keypads) with a group Code Group Code A - Enter a number with a maximum of 4 digits. The number identifies a group of a minimum of 1 and maximum of 5 telephone numbers.
- Page 9 8. Deleting information relating to a group Code Group A - Enter a number with a maximum of 4 digits; the number identifies the group for which all information is to be removed. Note: the command removes the telephone numbers belonging to the group. If a telephone number is associated with more than one group, it will only be removed from the group the command is addressed to.
- Page 10 13. Programming the ring time and call conversation time Code Ring time Conversation time After pressing a call button or entering a call code on MTMKB keypads, the entry panel generates a call to the first number asso- ciated with the group called (from 1 to 5 numbers); once the ring time (A) has elapsed without any reply, the entry panel will call the second number in the group (if there is one), etc.
- Page 11 17. Choosing the interface language for MTMDY and MTMBFVS modules Code Interface language A - In this field enter one of the following values (pre-set = English, = Spanish, = Ukrainian, = Danish, = Italian, = Dutch, = Croatian, = Latvian, = French, = Polish, = Swedish,...
- Page 12 20. Setting up the message tones Code Key press tone Solenoid lock tone Messages tone Voice messages A - Enter 1 or 0 in this field (pre-set 1 = Key press tone enabled. 0 = Key press tone not enabled. B - Sets whether activation of the solenoid lock must be accompanied by an acoustic signal.
-
Page 13: Restore Factory Default
23. Requesting the firmware version of the modules installe Code Module A - In this field enter the number that identifies the module whose firmware version you want to know. 1 = Request firmware version of MTMAGSM module. 2 = Request firmware version of MTMKB module. 3 = Request firmware version of MTMDY module. - Page 16 CAME S.p.A. Via Martiri Della Libertà, 15 31030 Dosson di Casier - Treviso - Italy tel. (+39) 0422 4940 - fax. (+39) 0422 4941...
