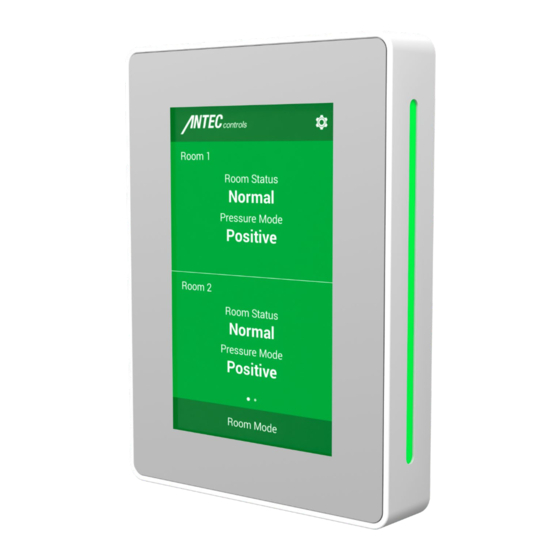

LUME20
Room Pressure Monitor
MANUAL v100

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LUME20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Antec controls LUME20

Summary of Contents for Antec controls LUME20

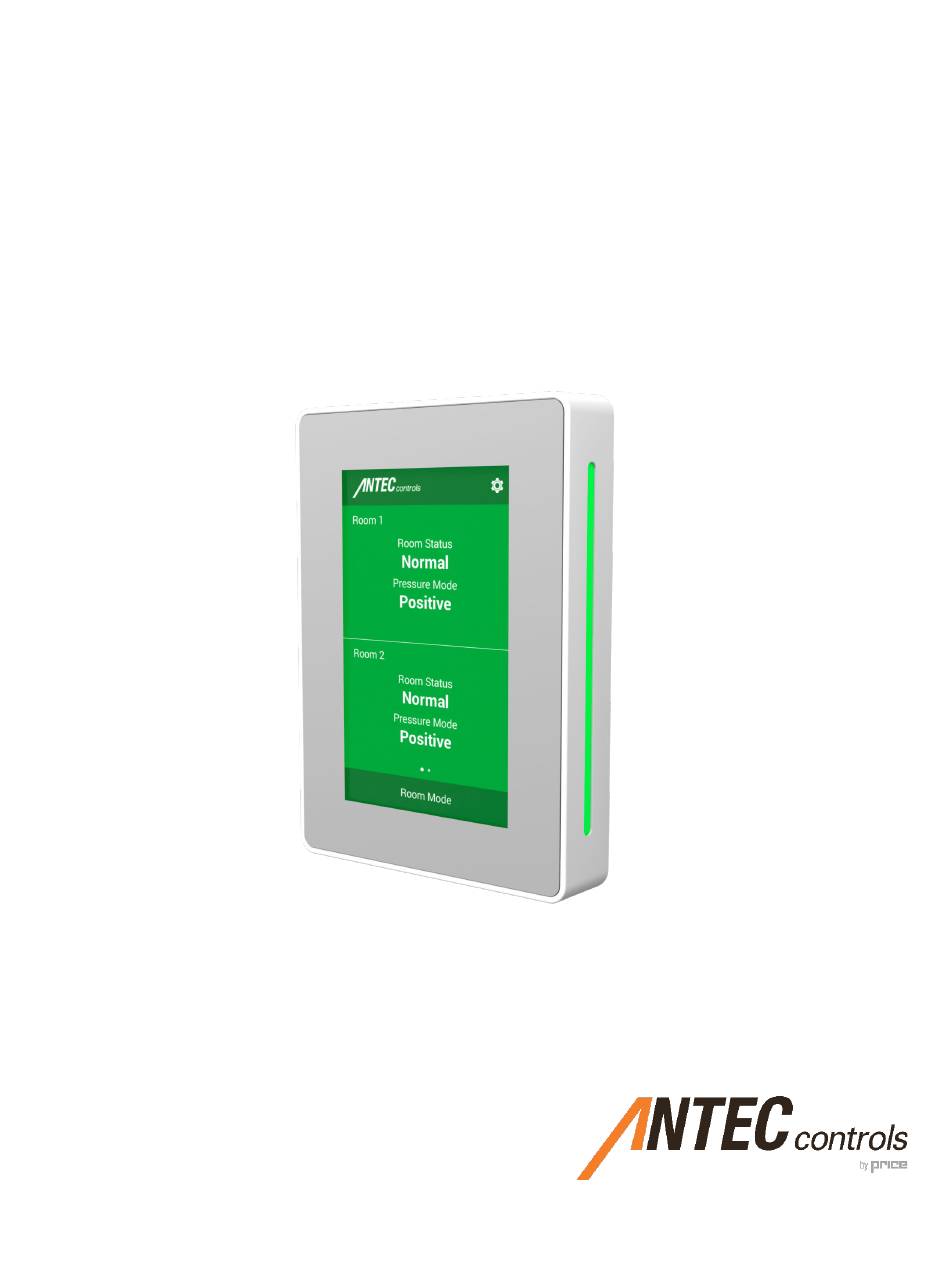

  • Page 1 LUME20 Room Pressure Monitor MANUAL v100...

  • Page 2: Table Of Contents

    Monitored Rooms ..................................25 Inputs ......................................28 Outputs .......................................34 BACnet ......................................37 BACnet Polling Points .................................38 User Preferences ..................................42 LUME ASSISTANT ..................................43 System Requirements ................................43 Installation Requirements................................43 How to Connect to LUME20 ...............................44 LUME Assistant Start-Up ................................44 2 | LUME20 – Manual | AntecControls.com...
  • Page 3 LUME20 - MANUAL Home ......................................45 Diagnostics ....................................46 Adjusting Windows Defender™ Firewall Settings ........................47 MAINTENANCE ....................................51 Replacement Parts ..................................51 Technical Support ..................................51 APPENDIX A ....................................52 Lume™ Drywall Cut-Out ................................52 3 | LUME20 – Manual | AntecControls.com...

  • Page 4: Introduction

    Disconnect power at the service panel before Product Overview performing wiring or maintenance on this device. Intended for indoor installation only, in areas with LUME20 is designed to provide ease of use pressure Pollution Degree 2. monitoring. Not designed for use in industrial, farming or humid environments.

  • Page 5: Technical Specifications

    Touchscreen Display, 4.3 in. (109 mm) TFT, Speaker Housing UL 94V-0, PC-ABS Plastic Device Type B-AAC Communication Type MS/TP (RS-485) Communication Speed 9600, 19200, 38400, 76800 BACnet Certification 1. BACnet Control Priority Order 2. Normal operation 5 | LUME20 – Manual | AntecControls.com...

  • Page 6: Getting Started With Lume20

    CAUTION Please ensure you have all the components before proceeding. Inspect all components for shipping damage. Do not install any components that appear damaged. Contact your local Antec Controls Representative for replacements. For the latest information and videos please visit www.AntecControls.com.

  • Page 7: Lume Accessories

    Door Contact Switches can be wired into the binary input(s) to detect when the door(s) are open. Overview See the DCS product submittal on AntecControls.com for Specifications, Dimensions and Configurations. Options 1. Surface Mount 2. Flush Mount 7 | LUME20 – Manual | AntecControls.com...

  • Page 8: Mechanical Installation

    LUME20 - MANUAL MECHANICAL INSTALLATION It is recommended to mount LUME20 at approximately 5 feet (1. 5 m) from the floor. This will allow the interface to be at an appropriate height for use during setup and during normal operation.
  • Page 9 Using the provided instructions, mount the standard single-gang electrical box at the suggested height from the floor. STEP 2 Mount the back plate to the box using two #8-32 screws. STEP 3 Attach LUME20 on the backplate that was installed in Step 2. 9 | LUME20 – Manual | AntecControls.com...

  • Page 10: Pressure Sensor Installation Instructions

    (96 in., 2.44 m) of total pressure tubing provided with the SDPT can reach both pressure plates. The sensor should be easily accessible for wiring and setup. CAUTION Incorrect placement can affect the sensor’s readings. 10 | LUME20 – Manual | AntecControls.com...
  • Page 11 Do not connect tubing from the SPDT to any other pressure measurement devices or other SDPT sensors. Do not tee off the tubing to connect to any additional devices. 11 | LUME20 – Manual | AntecControls.com...

  • Page 12: Electrical Installation

    All wire connections to the LUME20 screw connection terminals must be between 16-26 AWG wire. Current and voltage drop should be taken into consideration when selecting wire gauge. Wiring above may not reflect those required for your project. Refer to your Antec Controls Wiring Diagram Package for typical wiring recommendations.

  • Page 13: Bacnet Ms/Tp Network

    BACnet consists of a three-wire network architecture. Daisy chain the +, - and COM connections of all devices on LUME20 requires a connection to BACnet to transmit its the network segment. A BACnet MS/TP segment has a information to the Building Management System (BMS).

  • Page 14: Display Navigation

    Initial Setup When LUME20 is first powered on, it will prompt the user to step through a Setup Wizard to help configure the device. At any point in the device setup, the user can return to previous selections in the menu via the Next/Previous buttons. Any value not...
  • Page 15 LUME20 - MANUAL CAUTION For security purposes, the settings password should be changed prior to completing the Setup Wizard 15 | LUME20 – Manual | AntecControls.com...

  • Page 16: Home Screen

    Indicates whether the room is in Negative or Positive pressure mode. Room Mode Allows the user to override the room mode. This is password protected. Default Password: 1-2-3-4. NOTE: Any overrides done locally through the touchscreen will follow mode priority. 16 | LUME20 – Manual | AntecControls.com...
  • Page 17 Tapping on the touchscreen will reset the inactivity timeout and display the Home Screen in normal operation. The screen saver and screen dimming can be disabled in the User Preferences menu. The screen saver will never display when there is an alarm or caution active. NOTE: 17 | LUME20 – Manual | AntecControls.com...
  • Page 18 Binary Input (Configurable display message, Binary Inputs) Room Mode Allows the user to override the room mode. This is password protected. Default Password: 1-2-3-4. Any overrides done locally through the NOTE: touchscreen will follow mode priority. 18 | LUME20 – Manual | AntecControls.com...
  • Page 19 Binary Input (Configurable display message, Binary Inputs) Room Mode Allows the user to override the room mode. This is password protected. Default Password: 1-2-3-4. NOTE: Any overrides done locally through the touchscreen will follow mode priority. 19 | LUME20 – Manual | AntecControls.com...
  • Page 20 The Silence Screen allows users to temporarily mute the audible alarm for a configurable number of minutes. The mute duration defaults to a five-minute delay and can be adjusted in the User Preferences menu. 20 | LUME20 – Manual | AntecControls.com...

  • Page 21: Settings

    Allows the user to override the room mode. The default room mode cannot be triggered from this menu. This menu can also be accessed from the bottom of the Home Screen. NOTE: Any overrides done locally through the touchscreen will follow mode priority. 21 | LUME20 – Manual | AntecControls.com...

  • Page 22: Room Modes

    Room Mode & Override Priority Up to four room modes can be added per LUME20. The priority of the room modes is static from lowest to highest where Mode 1 is the lowest priority (default) and Mode 4 is the highest priority.
  • Page 23 Only the last configured room mode can be removed. To remove the last room mode, click the trash bin icon on the right side. When clicked, a popup will appear to confirm removal. NOTE: A minimum of two room modes can be configured per LUME20. 23 | LUME20 – Manual | AntecControls.com...
  • Page 24 Adjust the color of Home Screen when Blue Mode 2: Blue the mode is active. Purple Mode 3: Purple Gray Mode 4: Gray Sidebar Type Solid Adjust the sidebar behavior when the Solid mode is active. Blink 24 | LUME20 – Manual | AntecControls.com...

  • Page 25: Monitored Rooms

    Adding a Monitored Room To add a monitored room, click the Add Room button at the bottom of the Monitored Rooms menu. NOTE: A maximum of three monitored rooms can be configured per LUME20. 25 | LUME20 – Manual | AntecControls.com...
  • Page 26 Only the last configured monitored room can be removed. To remove the last monitored room, click the trash bin icon on the right side. When clicked, a popup will appear to confirm removal. 26 | LUME20 – Manual | AntecControls.com...
  • Page 27 High Pressure Set the activation point for the High Caution Pressure Caution, as well as the time delay. Activation Point -1.0 to +1.0 in.w.c (-249.1 to +249.1 Pa) Delay 0 to 100,000 seconds 27 | LUME20 – Manual | AntecControls.com...

  • Page 28: Inputs

    Inputs, Thermistor Inputs or Binary Inputs. Configured inputs will display the input name below the Universal Input header in the Inputs menu. Inputs that are not configured for a specific usage (i.e., Input Type set to ‘None’) will display ‘Available’. A maximum of four Universal Inputs can be configured per LUME20. NOTE:...
  • Page 29 0.5 to 2.0 Adjust the room pressure reading to match a reading taken by a manometer. E.g., if a balancer’s reading is 10% higher than the LUME20 reading, set the scale factor to 1.1. Offset -0.05 to +0.05 in.w.c. 0 in.w.c.
  • Page 30 Monitored Rooms menu. Current Read only value The current voltage being read by LUME20 Voltage from the temperature sensor. Analog Input – Relative Humidity Humidity inputs are used to monitor a humidity reading either in a room or in the duct.
  • Page 31 Monitored Rooms menu. Current Read only value The current voltage being read by LUME20 Voltage from the sensor. Analog Input – ACH ACH inputs are used for monitoring a signal that represents the current Air Changes per Hour (ACH) for a space.
  • Page 32 When ‘On’, a Door Open Caution will During Delay activate during the delay period and supress any alarms until the delay has elapsed. Current State Read only value The current state (Active/Inactive) of the input with reverse state applied. 32 | LUME20 – Manual | AntecControls.com...
  • Page 33 Set the Alarm Reason or Caution Reason shown on the Home Screen when the Alarm or Caution is active. Current State Read only value The current state (Active/Inactive) of the input with reverse state applied. 33 | LUME20 – Manual | AntecControls.com...

  • Page 34: Outputs

    Outputs menu. Outputs that are not configured for a specific usage (i.e. usage set to ‘None’) will display ‘Available’. A maximum of one Analog Output and two Binary Outputs can be configured per LUME20. NOTE: Analog Output –...
  • Page 35 Reverse State Reverse when the physical state of the Universal Input sets the current state to Active. Current State Read only value The current state (Active/Inactive) of the output with reverse state applied. 35 | LUME20 – Manual | AntecControls.com...
  • Page 36 Binary Output – Room Mode Room Mode outputs will activate the binary output when LUME20 is in the selected room mode. The following settings are available if the Usage is Room Mode. Menu Items...

  • Page 37: Bacnet

    Device Name 19 Characters LUME Adjust the device name. This name will display as the NOTE: device name for LUME20 on BACnet. MAC Address 1 to 127 Set the BACnet MS/TP MAC address. This must be unique to the NOTE: BACnet MS/TP segment.

  • Page 38: Bacnet Polling Points

    This section details configuration instructions and available settings for BACnet Polling Points. Any analog BACnet point (Analog Value, Analog Input, Analog Output) on the same MS/TP network as LUME20 can be polled by LUME20 for display on the Home Screen.
  • Page 39 Type should be set to Analog Value. Polling Delay 1 to 60 seconds 5 seconds The delay between read requests sent by LUME20 to the source BACnet device. Current Value Read only value The current value being polled from the configured BACnet point.
  • Page 40 Single Room Monitoring – Multipage Home Page Type Single Room Monitoring – Single Page Home Page Type NOTE: For single room monitoring, Home Page Type can be changed in the User Preferences menu. 40 | LUME20 – Manual | AntecControls.com...
  • Page 41 LUME20 - MANUAL Triple Room Monitoring 41 | LUME20 – Manual | AntecControls.com...

  • Page 42: User Preferences

    Home Screen. When turned off, the room mode override menu can be accessed without a password. CAUTION Turning off inactivity dim and/or screen saver will reduce the lifetime of the screen. 42 | LUME20 – Manual | AntecControls.com...

  • Page 43: Lume Assistant

    If you do not see the firewall prompt, or do not check the box for public networks before clicking Allow access, follow NOTE: the instructions in the Adjusting Windows Defender™ Firewall Settings section. 43 | LUME20 – Manual | AntecControls.com...

  • Page 44: How To Connect To Lume20

    LUME20 - MANUAL How to Connect to LUME20 The user can connect directly to one of the ethernet ports on the back of any LUME20 with an ethernet cable connected to their laptop. Tools Required • Computer running Windows 10 or higher with LUME Assistant installed •...

  • Page 45: Home

    Current Firmware version will be displayed in green. 3. If a LUME is connected, the Locate File button is enabled, and a firmware update can be performed with a user-supplied firmware file (hex or json). 45 | LUME20 – Manual | AntecControls.com...

  • Page 46: Diagnostics

    The Help screen contains information regarding LUME Assistant such as the version and changelog. There is also the contact information for Antec Controls Applications. Display Description Component Opens a changelog menu containing a history of LUME View Changelog Assistant versions and the changes that were made in each version. 46 | LUME20 – Manual | AntecControls.com...

  • Page 47: Adjusting Windows Defender™ Firewall Settings

    Type “firewall” in the start menu and select the Windows Defender Firewall option. Step 3 Select the Allow an app or feature through Windows Defender Firewall option on the left side of the window. 47 | LUME20 – Manual | AntecControls.com...
  • Page 48 Step 5 Once there are no entries for LUME Assistant in the list of allowed apps, select Allow another app in the bottom right corner of the window. Step 6 Select Browse. 48 | LUME20 – Manual | AntecControls.com...
  • Page 49 Open the folder starting with “app-“. If there are multiple folders, open the one with the highest number. Step 9 Select LUMEAssistant.Main.exe and click Open in the bottom right corner of the window. 49 | LUME20 – Manual | AntecControls.com...
  • Page 50 Domain, Private, and Public networks. Select OK in the bottom right corner of the window. LUME Assistant has successfully been allowed through the Windows Defender Firewall. 50 | LUME20 – Manual | AntecControls.com...

  • Page 51: Maintenance

    LUME20 - MANUAL MAINTENANCE If the settings password is forgotten, contact Antec Controls to reset. Replacement Parts Replacement parts are available. Please contact your local Antec Controls Representative. Technical Support If technical support is required, please contact us: By Email: Applications@AntecControls.com...

  • Page 52: Lume™ Drywall Cut-Out

    LUME20 - MANUAL APPENDIX A Lume™ Drywall Cut-Out 52 | LUME20 – Manual | AntecControls.com...
  • Page 53 Limited Warranty. The complete product catalog can be viewed online at AntecControls.com ® Antec Controls by Price is a registered trademark of Price Industries Limited. © 2024. Printed in Canada. v100...
