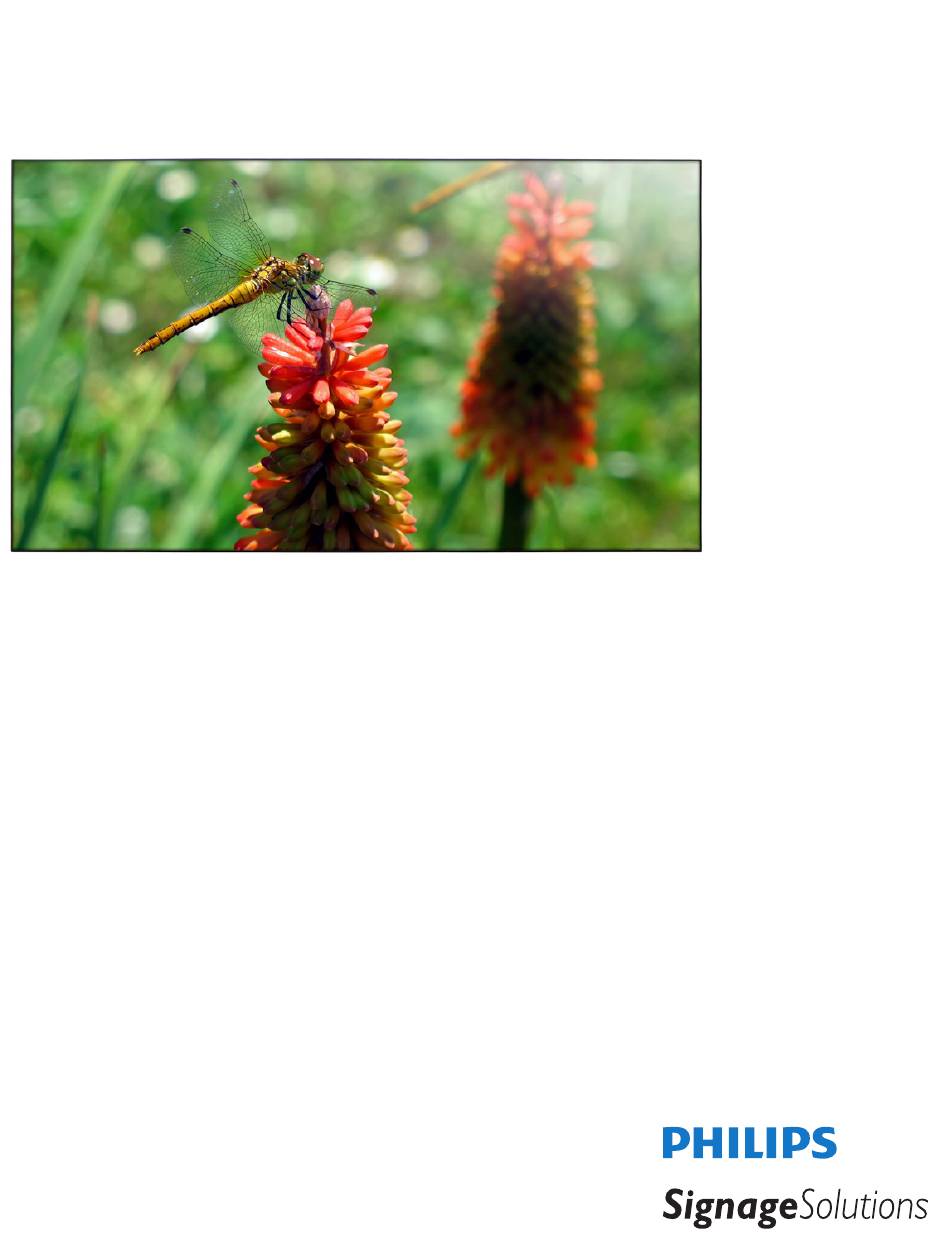

- Page 1 BDL5588XH V2.01 www.philips.com/welcome User Manual (English)
- Page 2 Read and follow these instructions when connecting and using your display: Operation: • Keep the display out of direct sunlight and away from stoves or any other heat sources. • Remove any object that could fall into ventilation holes or prevent proper cooling of the display’s electronics. • Do not block the ventilation holes on the cabinet. • When positioning the display, make sure the power plug and outlet are easily accessible. • When turning off the display by detaching the power cord, wait 6 seconds before re-attaching the power cord for normal operation. • Ensure the use of an approved power cord provided by Philips at all times. If your power cord is missing, please contact your local service center. • Do not subject the display to severe vibration or high impact conditions during operation. • Do not knock or drop the display during operation or transportation. Maintenance: • To protect your display from possible damage, do not put excessive pressure on the LCD panel. When moving your display, grasp the frame to lift; do not lift the display by placing your hand or fingers on the LCD panel. • Unplug the display if you are not going to use it for an extensive period of time.
- Page 3 BDL5588XH Read and follow these instructions when connecting and using your display: • Unplug the display if you are not going to use it for an extensive period of time. • Unplug the display if you need to clean it with a slightly damp cloth. The screen many be wiped with a dry cloth when the power is off. However, never use alcohol, solvents or ammonia-based liquids. • Consult a service technician if the display does not operate normally when you have followed the instructions in this manual. • The casing cover should be opened only by qualified service personnel. • Keep the display out of direct sunlight and away from stoves or any other heat sources. • Remove any object that could fall into the vents or prevent proper cooling of the display’s electronics. • Do not block the ventilation holes on the cabinet. • Keep the display dry. To avoid electric shock, do not expose it to rain or excessive moisture. • When turning off the display by detaching the power cable or DC power cord, wait for 6 seconds before re-attaching the power cable or DC power cord for normal operation..
- Page 4 BDL5588XH Polish Center for Testing and Certification Notice The equipment should draw power from a socket with an attached protection circuit (a three-prong socket). All equipment that works together (computer, display, printer, and so on) should have the same power supply source. The phasing conductor of the room’s electrical installation should have a reserve short-circuit protection device in the form of a fuse with a nominal value no larger than 16 amperes (A). To completely switch off the equipment, the power supply cable must be removed from the power supply socket, which should be located near the equipment and easily accessible. A protection mark “B” confirms that the equipment is in compliance with the protection usage requirements of standards PN-93/T-42107 and PN-89/ E-06251. Electric, Magnetic and Electromagnetic Fields (“EMF”) 1. We manufacture and sell many products targeted at consumers, which, like any electronic apparatus, in general have the ability to emit and receive electromagnetic signals. 2.
- Page 5 BDL5588XH Information for U.K. only WARNING - THIS APPLIANCE MUST BE EARTHED. Important: This apparatus is supplied with an approved moulded 13A plug. To change a fuse in this type of plug proceed as follows:+ 1. Remove fuse cover and fuse. 2. Fit new fuse which should be a BS 1362 5A,A.S.T.A. or BSI approved type. 3. Refit the fuse cover. If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate 3-pin plug fitted in its place. If the mains plug contains a fuse, this should have a value of 5A. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 5A. NOTE: T he severed plug must be destroyed to avoid a possible shock hazard should it be inserted into a 13A socket elsewhere.
- Page 6 BDL5588XH 中国大陆RoHS 根据中国大陆 《电子电气产品有害物质限制使用标识要求》 ， 以下部分列出了产品中可能包含 的有害物质的名称和含量。 产品中有害物质的名称及含量 有害物质 零部件名称 六价铬 多溴联苯 多溴二苯醚 铅（Pb） 汞（Hg） 镉（Cd） (PBB) (PBDE) （Cr（VI）） 塑胶外壳 ○ ○ ○ ○ ○ ○ 后壳 ○ ○ ○ ○ ○ ○ CCFL × × ○ ○ ○ ○ LCD panel ×...
- Page 7 BDL5588XH 《废弃电器电子产品回收处理管理条例》提示性说明 为了更好地关爱及保护地球，当用户不再需要此产品或产品寿命终止时，请遵守国家废弃电器电子产品 回收处理相关法律法规，将其交给当地具有国家认可的回收处理资质的厂商进行回收处理。 限用物質及其化學符號 單元 鉛 汞 鎘 六價鉻 多溴聯苯 多溴二苯醚 (Pb) (Hg) (Cd) (PBB) (PBDE) 塑料外框 ○ ○ ○ ○ ○ ○ 後殼 ○ ○ ○ ○ ○ ○ 液晶面板 － ○ ○ ○ ○ ○ 電路板組件 － ○...
- Page 8 BDL5588XH End-of-Life Disposal Your new Public Information Display contains materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount to be disposed of. Please find out about the local regulations on how to dispose of your old display from your local Philips dealer. (For customers in Canada and U.S.A.) This product may contain lead and/or mercury. Dispose of in accordance to local-state and federal regulations. For additional information on recycling contact www.eia.org (Consumer Education Initiative) Waste Electrical and Electronic Equipment-WEEE Attention users in European Union private households This marking on the product or on its packaging illustrates that, under European Directive 2012/19/EU governing used electrical and electronic appliances, this product may not be disposed of with normal household waste. You are responsible for disposal of this equipment through a designated waste electrical and electronic equipment collection.
- Page 9 BDL5588XH According to EU directive 2006/66/EC, the battery can’t be disposed improperly. The battery shall be separated to collect by local service. Após o uso, as pilhas e/ou baterias deverão ser entregues ao estabelecimento comercial ou rede de assistência técnica autorizada.
-
Page 10: Table Of Contents
BDL5588XH Table Of Contents Operation ................. 19 4.1. Watch the Connected Video Source ......19 4.2. Change Picture Format ............19 Unpacking and Installation ............1 4.3. Play multimedia files via Local Area Network ..19 1.1. Unpacking ..................1 4.3.1. Set up the network ..........19 1.2. Package Contents ................1 4.3.2. How to use DLNA-DMP ......... 19 1.3. Installation Notes .................1 4.3.3. -
Page 11: Unpacking And Installation
BDL5588XH Unpacking and Installation 1.1. Unpacking • This product is packed in a carton, together with the standard accessories. • Any other optional accessories will be packed separately. • Due to the size and weight of this display it is recommended for two people to move it. • After opening the carton, ensure that the contents are complete and in good condition. 1.2. Package Contents Please verify that you received the following items with your package content: • LCD display • Remote control with AAA batteries • Power cord • VGA cable • RS232 cable • Daisy chain cable Quick start guide • IR sensor cable • IR cable • Quick start guide • Edge Alignment Kit-1: 1PC * The supplied power cord varies depending on destination. -
Page 12: Installing And Removing Table Stands (Optional)
BDL5588XH 1.4. Installing and Removing Table Stands (optional) To install table stands: 1. Ensure your display is powered off. 2. Spread a protective sheet on a flat surface. 3. Grab the carrying handles and place the display face-down on the protective sheet. 4. After inserting the stand in the guide block, tighten the screws on both sides of the display. NOTE: T he longer side of the stand should face the front of the display. Carrying handle Thumbscrews Guide block Longer portions face the front Table stand To remove table stands: 1. -
Page 13: Mounting On A Wall
BDL5588XH 1.5. Mounting on a Wall To mount this display to a wall, you will have to obtain a standard wall-mounting kit (commercially available). We recommend using a mounting interface that complies with TUV-GS and/or UL1678 standard in North America. Protective Sheet VESA Grid Table Tabletop stand 1. Lay a protective sheet on a table, which was wrapped around the display when it was packaged, beneath the screen surface so as not to scratch the screen face. 2. Ensure you have all accessories for mounting this display (wall mount, ceiling mount, table stand, etc). 3. Follow the instructions that come with the base mounting kit. Failure to follow correct mounting procedures could result in damage to the equipment or injury to the user or installer. -
Page 14: Mounting In Portrait Position
BDL5588XH 1.6. Mounting in Portrait Position This display can be installed in portrait position. 1. Remove the table stand, if attached. 2. Rotate 90 degrees anticlockwise. The “ ” logo should be bristling when facing the display at the back. -
Page 15: Operating Instructions Of Edge Alignment Kit
BDL5588XH 1.7. Operating Instructions of Edge Alignment Kit 1.7.1. Installing Edge Alignment Kit • Before install edge alignment kit, displays must be mounted to video wall frame correctly. • Using “Thumb Screw” for easy installing. • Using “Edge Alignment Kit-1” on adjacent four displays. • Using “Edge Alignment Kit-2” on adjacent two displays. • Install the “Edge Alignment Kit-2” with 2 PCS of M4 screw. NOTE: W hen installing the edge alignment kit, please consult a professional technician for proper installation. We accept no liability for installations not performed by a professional technician. -
Page 16: Using Of Edge Finishing Kit (Optional)
BDL5588XH 1.8. Using of Edge Finishing Kit (Optional) You could use the edge finishing kit to protect the display and have a better appearance. 1.8.1. Installing Edge Finishing Kit Installing Edge Finishing Kit for 1x1 Display Configuration Edge Finishiing Kit-Top (*1PC) Corner(*4PCS) Edge Finishiing Edge Finishiing Kit-Right(*1PC) Kit-Left(*1PC) Screw Edge Finishiing Kit-Bottom (QTY is different depending (*1PC) on models) Installing Edge Finishing Kit for 2x2 Display Configuration Edge Finishiing Kit-Top (*2PCS) Connector (*4PCS) -
Page 17: Parts And Functions
BDL5588XH Parts and Functions 2.1. Control Panel MUTE INPUT MENU [ ] button Remote control sensor and power status indicator Use this button to turn the display on or put the display to standby. • Receives command signals from the remote control. • Indicates the operating status of the display without OPS: [MUTE] button - Lights green when the display is turned on Switch the audio mute ON/OFF. - Lights red when the display is in standby mode [INPUT] button - Lights amber when the display enters APM mode Choose the input source. - When {SCHEDULE} is enabled, the light blinks green and red • Used as [ ] button in the On-Screen-Display menu. -
Page 18: Input/Output Terminals
BDL5588XH 2.2. Input/Output Terminals 9 10 11 14 15 17 AC IN COMPONENT IN (BNC) AC power input from the wall outlet. Component YPbPr video source input. MAIN POWER SWITCH Y/CVBS Switch the main power on/off. Video source input. IR IN / IR OUT PC LINE IN IR signal input / output for the loop-through function. Audio input for VGA source (3.5mm stereo phone). SPEAKER SWITCH NOTES: Internal speaker on/off switch. • This display’s remote control sensor will stop working if the jack [IR IN] is connected. -
Page 19: Remote Control
BDL5588XH 2.3. Remote Control [ ] POWER button Turn the display on or put the display to standby. 2.3.1. General functions [PLAY] buttons Control playback of media files. ] SOURCE button Choose input source. Press [ ] or [ ] button to choose from Network Internet, SmartCMS, HDMI 1 HDMI DisplayPort Card OPS DVI-D YPbPr , or ] button to confirm and exit. Press [ ] HOME button Access the OSD menu. -
Page 20: Id Remote Control
BDL5588XH 2.3.2. ID Remote Control Press [ID] button. The red LED blinks twice. 1. Press [ID SET] button for more than 1 second to enter the ID Mode. You can set the remote control ID when you want to use this remote The red LED lights up. control on one of several different displays. Press the [ID SET] button again will exit the ID Mode. The red LED lights off. Press the digit numbers [0] ~ [9] to select the display you want to control. For example: press [0] and [1] for display No.1, press [1] and [1] for display No.11. The numbers available are from [01] ~ [255]. 2. Not pressing any button within 10 seconds will exit the ID Mode. 3. If an error pressing of buttons other than the digits occured, wait 1 second after the red LED lights off and then lights up again, then press the correct digits again. 4. Press [ENTER] button to confirm. The red LED blinks twice and then lights off. -
Page 21: Inserting The Batteries In The Remote Control
BDL5588XH 2.3.3. Inserting the batteries in the remote control The remote control is powered by two 1.5V AAA batteries. To install or replace batteries: 1. Press and then slide the cover to open it. 2. Align the batteries according to the (+) and (–) indications inside the battery compartment. 3. Replace the cover. Caution: The incorrect use of batteries can result in leaks or bursting. Be sure to follow these instructions: • Place “AAA” batteries matching the (+) and (–) signs on each battery to the (+) and (–) signs of the battery compartment. • Do not mix battery types. • Do not combine new batteries with used ones. It causes shorter life or leakage of batteries. • Remove the dead batteries immediately to prevent them from liquid leaking in the battery compartment. Don’t touch exposed battery acid, as it can damage your skin. NOTE: I f you do not intend to use the remote control for a long period, remove the batteries. -
Page 22: Connecting External Equipment
BDL5588XH Connecting External Equipment 3.1. Connecting External Equipment (DVD/VCR/VCD) 3.1.1. Using COMPONENT video input Audio Out COMPONENT Out (YPbPr) DVD / VCR / VCD [AUDIO IN] [COMPONENT IN] (YPbPr) 3.1.2. Using Video Source input Y/CVBS Out DVD / VCR / VCD [AUDIO IN] [Y/CVBS IN]... -
Page 23: Using Hdmi Video Input
BDL5588XH 3.1.3. Using HDMI video input DVD / VCR / VCD HDMI Out [HDMI IN] 3.2. Connecting a PC 3.2.1. Using VGA input VGA Out D-Sub 15 pin Audio Out [VGA IN] [VGA AUDIO IN] 3.2.2. Using DVI input DVI Out Audio Out [DVI IN] [VGA AUDIO IN]... -
Page 24: Using Hdmi Input
BDL5588XH 3.2.3. Using HDMI input HDMI Out [HDMI IN] 3.2.4. Using DisplayPort input DisplayPort Out [DisplayPort IN] 3.3. Connecting Audio Equipment 3.3.1. Connecting external speakers External speakers... -
Page 25: Connecting An External Audio Device
BDL5588XH 3.3.2. Connecting an external audio device Audio In Stereo Amplifier [AUDIO OUT]... -
Page 26: Connecting Multiple Displays In A Daisy-Chain Configuration
BDL5588XH 3.4. Connecting Multiple Displays in a Daisy-chain Configuration You can interconnect multiple displays to create a daisy-chain configuration for applications such as a video wall. 3.4.1. Display control connection Connect the [RS232C OUT] connector of DISPLAY 1 to the [RS232C IN] connector of DISPLAY 2. DISPLAY 1 DISPLAY 2 [RS-232C] [RS-232C IN] [RS-232C OUT] [RS-232C IN] DISPLAY 1 DISPLAY 2 [RJ-45] [RJ-45] [RS-232C OUT] [RS-232C IN] 3.4.2. Digital video connection Connect the [DVI OUT / VGA OUT] connector of DISPLAY 1 to the [DVI IN] connector of DISPLAY 2. -
Page 27: Analog Video Connection
BDL5588XH Connect the [DVI OUT ] connector of DISPLAY 1 to the [DVI IN] connector of DISPLAY 2. DVD / VCR / VCD DISPLAY 1 DISPLAY 2 [HDMI] [DVI IN] [DVI OUT] [DVI IN] 3.4.3. Analog video connection Connect the [DVI OUT / VGA OUT] connector of DISPLAY 1 to the [VGA IN] connector of DISPLAY 2. DISPLAY 1 DISPLAY 2 [VGA] [VGA IN] [DVI/VGA OUT] [VGA IN] 3.4.4. IR daisy-chain Connection Connect [IR Sensor Cable] to DISPLAY 1,and connect the [RS232C OUT] connector of DISPLAY 1 to the [RS232C IN] connector of DISPLAY 2. [IR IN] DISPLAY 1 DISPLAY 2 IR Sensor Cable... -
Page 28: Ir Pass-Through Connection
BDL5588XH NOTE: T his display’s remote control sensor will stop working if the [IR IN] is connected. 3.6. IR Pass-through Connection [IR OUT] DVD / VCR / VCD [IR IN] (DVD / VCR / VCD) Remote Control 3.7. Wire-connecting to Network If you connect this display to a home network, you can play photos, music and videos from your computer. See Play multimedia files via Local Area Network (Page 19) for more detail. -
Page 29: Operation
BDL5588XH Operation DISPLAY 1 DISPLAY 2 NOTE: T he control button described in this section is mainly on the remote control unless specified otherwise. ROUTER [RJ-45] [RJ-45] [RJ-45] 4.1. Watch the Connected Video Source See page 12 for external equipments connection. NOTE: I f the apparatus does not return to DLNA mode due to 1. Press [ ] SOURCE button. external electrical disturbances (e.g. electrostatic discharge), user 2. Press [ ] or [ ] button to choose a device, then press [ intervention is required. -
Page 30: How To Use Dlna-Dmr From Pc
BDL5588XH 4.3.3. How to use DLNA-DMR from PC Advanced sharing settings Turn on 7. Go to , and check network discovery 1. Press [ ] HOME button, choose Network and press [ 8. Now, go to the directory of your media files. Choose the media button. Play To file by right click. On the submenu from , You can find all displays connected to your network. -
Page 31: Play Options
BDL5588XH 4.5. Play options 4.5.3. Playing photo files Photo 1. Choose in the top bar. 4.5.1. Playing music files Photo Music 1. Choose in the top bar. ] button. 2. Choose a photo thumbnail, then press Music Start a slideshow ] button. 2. Choose one music track, and press [ If there are multiple photos in a folder, choose a photo. Then, press • To play all the tracks in a folder, choose one music file. - Page 32 BDL5588XH Internet Web Address： http:// History www.google.com Bookmark . , @ ‘ Done w x y z Hide p q r s ? ! - < 123 www Backspace 3. Move the cursor to “ ” icon and press [ ] button. Internet Web Address： http://www.google.com History www.google.com Bookmark...
-
Page 33: Change Your Settings
BDL5588XH Change your settings 5.1.1. Picture Using the remote control: Picture style Picture Sound Backlight Tiling Colour Network Sharpness General settings Noise reduction m e n u MPEG artifact reducti... Picture enhancement Advanced Scan mode Format and edges Picture reset Picture style 1. -
Page 34: Sound
BDL5588XH 5.1.3. Tiling 5.1.2. Sound Picture Sound style Picture Enable Bass Sound Sound H monitors Tiling Treble V monitors Tiling Network Balance Network Position General settings Volume General settings Frame comp. Minimum volume Switch on delay Maximum volume Tiling tool Surround mode Audio out (line out) Advanced... - Page 35 BDL5588XH Frame comp. (1). Enter activate menu Choose to turn the frame compensation function on or off. If selected {On}, the display will adjust the image to compensate for the width of Picture Status the display bezels in order to accurately display the image. Sound Activate {On} Tiling Network General settings (2). Enter activate key in OSD {Off} Cancel Clear Done (3). Press [ ] button and it will pop out the on-screen keyboard. You can move the cursor to enter the activate key. After finishing Done choose Note: Press yellow key of remote control, the input change to number Frame comp.H digital.
-
Page 36: Network
BDL5588XH Clear Internet memory (4). Tiling tool activate message Clear all the cookies, bookmarks, history list and text used for auto fill. 5.1.5. General settings Picture Menu language xxxxxxx Sound Monitor Group Tiling Monitor ID Cancel Clear Done Network Eco mode Auto search General settings Clock Tiling tool activation successful Scheduling Sleep timer OneWire... - Page 37 5. Go to and choose. is chosen. You need to set playliist. If {Source} {BROWSER} is chosen. You need to set URL address. Schedule 1 Status No repeat NOTE: I f {Source} {Autoplay} is chosen. You need to create a folder named “philips” in the root directory of the USB and Schedule 2 Source Every Sunday put the files (pictures or videos) you want to display in the Schedule 3 On time Every Monday folder.
- Page 38 BDL5588XH Playlist setting RC lock 6. If {Source} {USB} is chosen. Go to Choose to enable or disable the button function of the remote control. 0001/0002 Photo • {Unlock}: Enable the keyboard function. • {Lock all}: Lock all keyboard function. Photo • {Lock but volume}: Disable all the keyboard function except the Video ] and [ ] button. • {Lock but power}: Disable all the keyboard function except the [ ] POWER button.
- Page 39 BDL5588XH 1.2: Switch DisplayPort Ver. to 1.2 to support MST(Multi-Stream Transport) NOTE: If the display is black screen or abnormal under DisplayPort source, please switch to 1.1a and turn AC off and on. Cooling Fan Select {On} to turn on the cooling fan all the time. Select {Auto} to turn on/off the cooling fan according to the display’s temperature. NOTES: • The default {Auto} option will start running the cooling fan if the temperature of 60°C (140°F) is reached,. • If the temperature exceeds 70°C (158°F) over 3 minutes and then a temperature warning message will be shown on the screen for 10 seconds, the display will be shut down automatically with blinking red & green LED lights. Network control port Choose the RS232 control form Card OPS or embedded RS232 in PD set. Factory settings Reset all your customized settings to the factory defaults.
-
Page 40: Usb Device Compatibility
BDL5588XH USB device compatibility USB Video Subtitle Formats (for language subtitles, etc.) File Max.Frame Rate Max.Bit Rate Container Video codec Maximum resolution Audio codec Extensions (fps) (Mbps) MPEG-1 1920x1080 25p,30p,50i,60i MPEG-1(L1&L2), .mpg MPEG-2 1920x1080 25p,30p,50i,60i MPEG-1,2,2.5 L3, mpeg MPEG-4 ASP 1920x1080 25p,30p,50i,60i AAC/HE-AAC(v1&v2), .vob DVD-PCM H.264 1920x1080 25p,30p,50p,60p,60i MPEG-2 1920x1080... - Page 41 BDL5588XH USB Multimedia Formats Frequency Max.Bit Rate Maximum File Extensions Container Video codec Audio codec resolution (kHz) (Mbps) .mp3 MPEG-1,2,2.5 L3 .wma .asf (V2 up to V9.2) .wma WMA Pro WMA,WMA Pro .wav(PC) LPCM LPCM .aif(mac) LPCM LPCM .aiff(mac) .aac .mp4 1024 AAC,HE-AAC(v1&v2) .m4a .pls Playlists .m3u .m4a 1024 AAC,HE-AAC(v1&v2) NOTES: • Sound or video may not work if the contents have a standard bit rate/frame rate above the compatible Frame/sec listed in the table above.
-
Page 42: Input Mode
BDL5588XH Input Mode VGA Resolution: Active Resolution Standard Refresh Rate Pixel Rate Aspect Ratio Stand for Mode Resolution H Pixels V Lines 60 Hz 25.175 MHz 480 72 Hz 31.5 MHz Video Graphic Array 75 Hz 31.5 MHz WVGA 400 70 Hz 33.75 MHz 16:9 Wide Video Graphic Array 60 Hz 40 MHz SVGA 600 Super VGA 75 Hz 49.5 MHz 60 Hz 65 MHz 1024 768 Extended Graphic Array 75 Hz 78.75 MHz WXGA... -
Page 43: Pixel Defect Policy
We strive to deliver the highest quality products and use some of the industry’s most advanced manufacturing processes whilst practicing stringent quality control. However, pixel or sub-pixel defects on the PDP / TFT panels used in Plasma- & LCD- displays are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from pixel defects, but Philips guarantees that any Plasma- & LCD- displays with an unacceptable number of defects will be repaired during the warranty period in line with your local guarantee conditions. This notice explains the different types of pixel defects and defines the acceptable defect level for the LCD screen. In order to qualify for repair under warranty, the number of pixel defects must exceed a certain level as shown in the reference table. If the LCD screen is within specification a warranty exchange / claim back will be refused. Additionally, because some types or combinations of pixel defects are more noticeable than others, Philips sets even higher quality standards for those. 8.1. Pixels and Sub-Pixels A pixel, or picture element, is composed of three sub-pixels in the primary colors of red, green and subpixel blue. -
Page 44: Dark Dot Defects
Dark Dot Defects Black dot defects appear as pixels or sub-pixels that are always dark or “off ”. These are the examples of black dot defects: One dark dot Two adjacent dark dots = 1 pair of dark dots Two dark dots, specifications defines the minimum distance between dark dots 8.5. Proximity of Pixel Defects Because pixel and sub-pixels defects of the same type that are nearby one another may be more noticeable, Philips also specifies tolerances for the proximity of pixel defects. In the table below you can find specifications about: • Allowed amount of adjacent dark dots = (adjacent dark dots =1 pair of dark dots) • Minimum distance between dark dots • Total no. of all defective dots 8.6. Pixel Defect Tolerances In order to qualify for repair due to pixel defects during the warranty period, a PDP / TFT panel in a Philips Plasma / LCD- display must have pixel or sub- pixel defects exceeding the tolerances listed in the following table. -
Page 45: Cleaning And Troubleshooting
BDL5588XH Cleaning and Troubleshooting 9.1. Cleaning Caution When Using the Display • Do not bring your hands, face or objects close to the ventilation holes of the display. The top of the display is usually very hot due to the high temperature of exhaust air being released through the ventilation holes. Burns or personal injuries may occur if any body parts are brought too close. Placing any object near the top of the display could also result in heat related damage to the object as well as the display itself. • Be sure to disconnect all cables before moving the display. Moving the display with its cables attached may damage the cables and thus cause fire or electric shock. • Disconnect the power plug from the wall outlet as a safety precaution before carrying out any type of cleaning or maintenance procedure. Front Panel Cleaning Instructions • The front of the display has been specially treated. Wipe the surface gently using only a cleaning cloth or a soft, lint-free cloth. • If the surface becomes dirty, soak a soft, lint-free cloth in a mild detergent solution. -
Page 46: Troubleshooting
BDL5588XH 9.2. Troubleshooting Symptom Possible Cause Remedy No picture is displayed 1. The power cord is disconnected. 1. Plug in the power cord. 2. The main power switch on the back of the 2. Make sure the power switch is switched on. display is not switched on. 3. Connect a signal connection to the display. 3. The selected input has no connection. 4. The display is in standby mode. Interference displayed on the display or audible Caused by surrounding electrical appliances or Move the display to another location to see is the noise is heard... - Page 47 BDL5588XH How to setup the settings in the menu to Daisy chained by RS232 and no IR cable 1. The first display sets as “Primary” on OSD control all the monitors at the same time and (Advanced option/IR control item), others set as individually via RC? “Secondary”. 2. The setup OSD will show on Top-Left of display. (Toggle MENU will show again if it disappear) 3. Default setting: ID NO: 0, GP NO: 0, this setting can control all displays by IR.
-
Page 48: Technical Specifications
BDL5588XH Technical Specifications Display: Item Specifications Screen Size (Active Area) 54,6” (138.7 cm) LCD Aspect Ratio 16:9 Number of pixels 1920 (H) x 1080 (V) Pixel pitch 0.630 (H) x 0.630 (V) [mm] Displayable colors 1.06B colors Brightness (typical) 700 cd/m Contrast ratio (typical) 1400:1 Viewing angle 178 degrees In/Out Terminals: Item Specifications Speaker Output Internal Speakers 10W (L) + 10W (R) [RMS]/8Ω External Speakers 1 Way 1 Speaker System 82 dB/W/M/160 Hz ~ 13 KHz Audio Output 3.5mm phone jack x 1 0.5V [rms] (Normal) / 2 Channel (L+R) Audio Input RCA Jack x 2 0.5V [rms] (Normal) / 2 Channel (L+R) 3.5mm phone jack x 1 RS232C 2.5mm Phone jack x 2 RS232C in/RS232C out RJ-45... - Page 49 BDL5588XH General: Item Specifications Power Supply AC 100 - 240V, 50 - 60Hz, 3.5A Power Consumption (Max) 420 W Power Consumption (typ.) 275 W Power Consumption (Standby & Off) <0.5 W (RS232 in active) Dimensions (With Stand) [W x H x D] 1213.4 x 726.2 x 400.0 Dimensions (Without Stand) [W x H x D] 1213.4 x 684.2 x 95.0 (@Wall mount) / 103.4 (@Handle) Weight (With Stand) 31.5 Kg Weight (Without Stand) 29.2 Kg Gross Weight (Without Stand) 44.4 Kg Environmental Condition: Item Specifications Temperature Operational 0 ~ 40°C Storage -20 ~ 60°C Humidity Operational 20 ~ 80% RH (No condensation) Storage 5 ~ 95% RH (No condensation) Altitude Operational 0 ~ 3,000 m...
- Page 50 2015 © Koninklijke Philips N.V. All rights reserved. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license from Koninklijke Philips N.V. Specifications are subject to change without notice.
