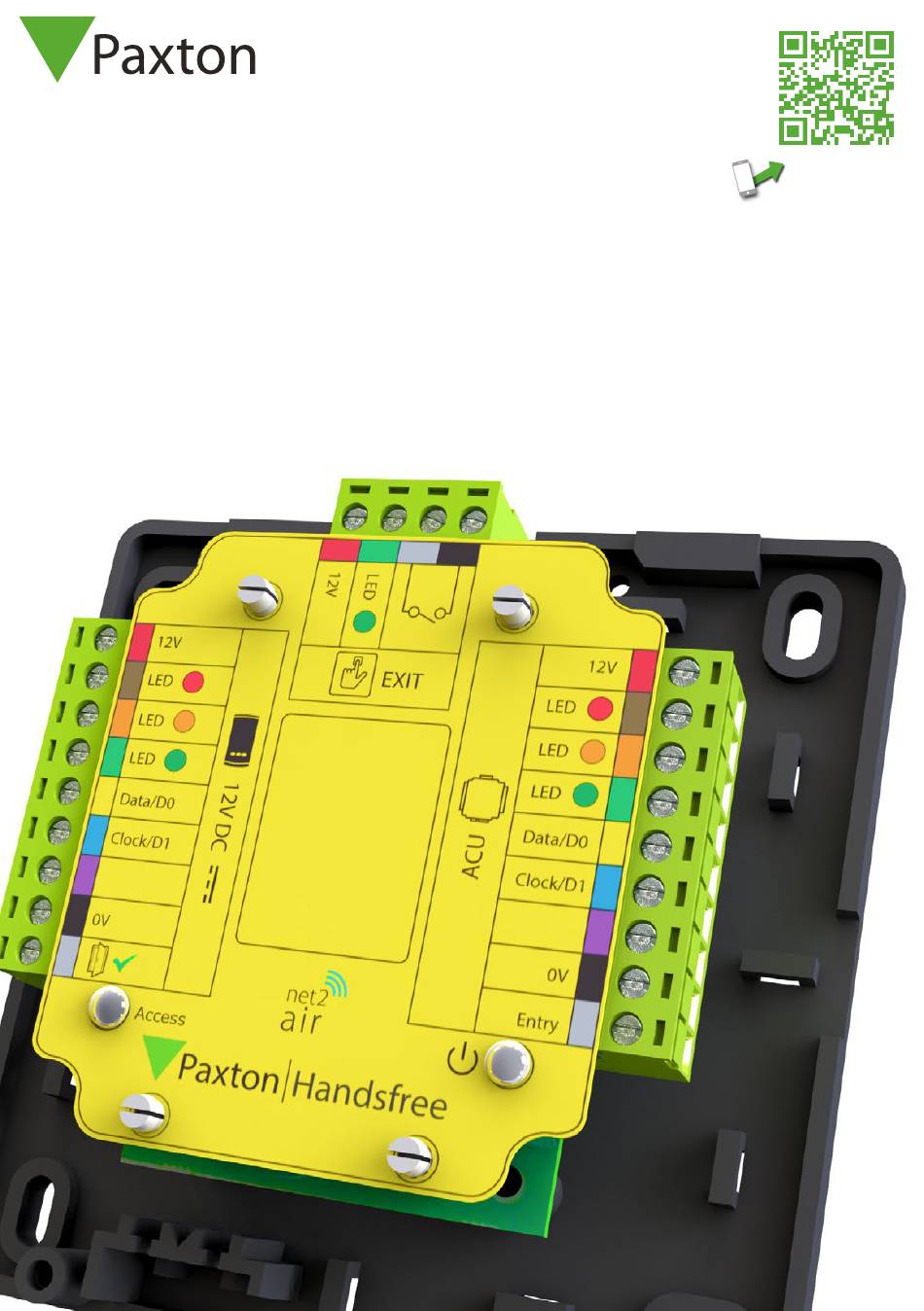

- Page 1 Hands free interface...
-
Page 2: Before You Install
What is hands free? The hands free system increases the effective read range of a standard Paxton P or KP series reader. Standard tokens use the readers radio field to power the token but hands free tokens have a battery and so only require a much weaker signal to be activated. -
Page 3: Installation
Wiring Entry confirm button (optional) 12V dc 12V dc Entry Confirm (opt) Red LED Red LED Amber LED Amber LED Green LED Green LED Data/D0 Data/D0 Clock/D1 Clock/D1 Media Detect Media Detect Not connected Entry Entry Connection to a control unit Access Power reader port... - Page 4 To enable the buttons, the keycard must first be presented to the P series reader and then used in hands free mode. The keycard stores the details of this interface and can then activate the door using a button. A keycard can be used in normal hands free mode and also in local passive mode with other Paxton readers.
-
Page 5: Technical Help
Net2Air is a term used to describe the wireless communication protocol used by Paxton products in much the same way as Bluetooth. The Net2Air protocol is not open, only Paxton products can use this technology. 6 - If you power cycle the reader, the hands free token does not always read. - Page 6 Specifications Dimensions Width Height Depth 120 mm 120 mm 40 mm Electrical Voltage 11V DC 14V DC 80 mA Current 2.405 GHz 2.480 GHz Carrier frequency 600 µs Clock and data bit period Additional power supply required System Specification Readers per interface Button confirmation input Belden 9540 Cable type for extensions...
- Page 7 +44 (0)1273 811011 877.438.7298 support@paxton.co.uk supportUS@paxton-access.com paxton.support usapaxton.support +31 (0)76 3333 999 +32 (0) 78485147 support@paxton-benelux.com support@paxton-benelux.com paxton.benelux.support paxton.benelux.support +33 (0)1 57 32 93 56 +49 (0) 251 2080 6900 verkauf@paxton-gmbh.de support@paxtonaccess.fr paxton.gmbh.support paxton.support 8000 3570 3783 +27 (0) 21 4276691 support@paxtonaccess.co.za...
- Page 8 Paxton Access Ltd hereby declares that this product is in conformity with all the essential requirements of the Directive 2014/53/EU. http://paxton.info/4867 The full declaration of conformity is provided at: http://paxton.info/3910 The full declaration of conformity is available on request. Contact details are provided at: http://paxton.info/596...
