Beyerdynamic DT 240 PRO - Mobile Studio Headphones for Monitor and Recording Purposes Manual

Supplied accessories

1 x coiled cable, 1.25 m or 3 m (stretched)
1 x soft bag

Application

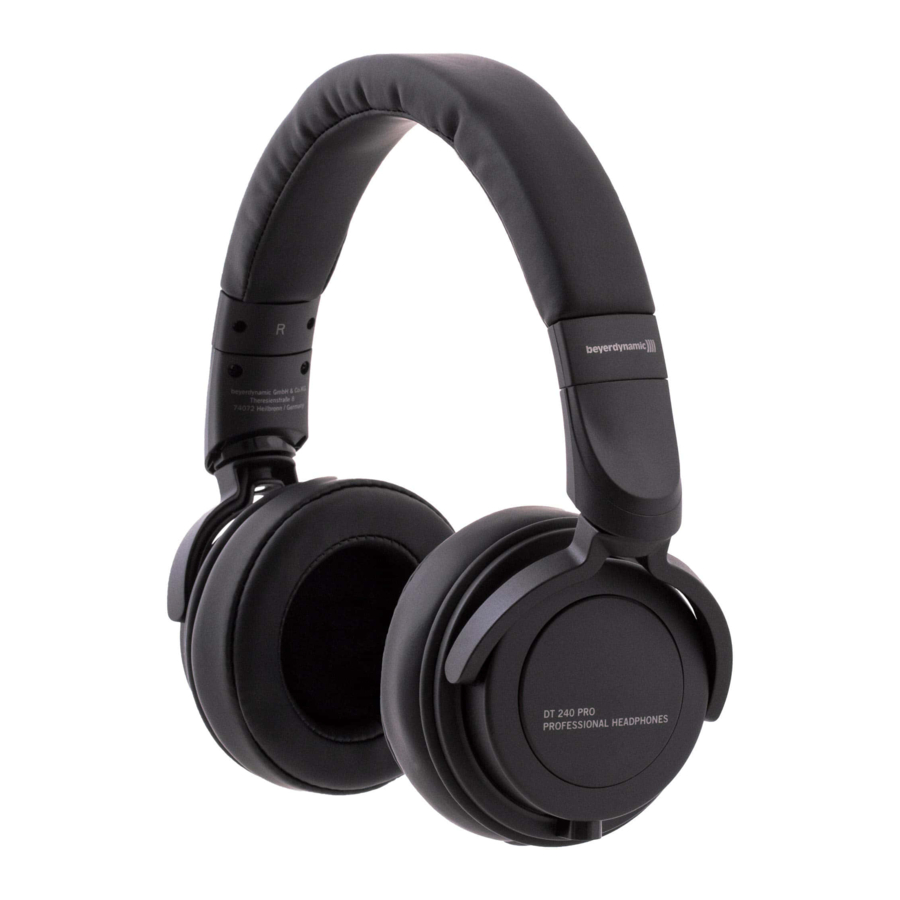

The compact DT 240 PRO is a closed headphone for professional applications. It provides studio quality in any environment, even with mobile applications. The headphone features a clean, deep bass, vivid mids and defined highs. Precise and powerful drivers ensure a high output volume on all devices such as laptops, cameras and studio interfaces. Therefore, the DT 240 PRO is ideal for producers, podcasters and filmmakers who want to take full advantage of the potential of their equipment. A high noise attenuation prevents the penetration of ambient noise, nor does sound penetrate outwards. The lightweight ergonomic, padded headband and soft, replaceable ear pads provide a comfortable wearing, even for a longer period of time. The rugged design ensures excellent durability in tough everyday applications. The rugged design ensures excellent durability in tough everyday applications.

How to connect the cable

• At the end that connects to the headphone, the connecting cable is fitted with a mini jack connector. The cable can be connected to the right or left ear cup.

• At the other end, the cable is provided with a gold-plated mini jack plug (3.5 mm) with a 1/4" adapter (6.35 mm).
  The thread of the mini jack connector (3.5 mm) is so constructed that the headphone can also be connected to smartphones with a protective cover.

Storage

If you would like to store the headphone in the supplied soft bag, detach the cable, rotate the two ear cups as indicated by the arrows and put it into the soft bag with the ear cups first.

Maintenance

As with any equipment which will be used in close proximity to sensitive areas of the body, it is essential that the ear pads and headband are kept clean. Use a soft damp cloth for cleaning using water only taking care not to allow any water drops into the ear cups or transducers.

Never use any solvent cleaning agents!
You may need to change the ear pads from time to time as a result of normal wear and tear. This is easy to do yourself:

• Remove the ear pad carefully from the mounting ring of the ear cup.

• Attach the new ear pad to the ear cup by pulling it over the mounting ring.

In the event that other components need to be replaced, please contact your local beyerdynamic representative.

Accessories and spare parts

Accessories and replacement equipment can be found at:
www.beyerdynamic.com

Service

If you require service, please contact qualified service personnel or directly:
beyerdynamic Service- und Logistik Center
E-mail: service@beyerdynamic.de
Dismantling the headphone yourself will invalidate the guarantee.

Technical specifications

(all details specifications acc. to EN 60 268-7)

Safety instructions

• Exposure to excessive sound levels for longer periods can damage your ears resulting in permanent noise-induced hearing loss. Use a low volume!
• According to regulations to protect employees against damages caused by noise and vibrations, please follow these instructions:
  85 dB SPL for max. 8 hours
  88 dB SPL for max. 4 hours
  91 dB SPL for max. 2 hours
  94 dB SPL for max. 1 hour
  97 dB SPL for max. 30 minutes
  100 dB SPL for max. 15 minutes
• When connecting the headphones, please ensure that the volume is turned down to minimum. Adjust the volume after putting on the headphones.

Danger to life!
Headphones drastically reduce perception of external sounds. Using headphones in road traffic can be potentially dangerous. The user's hearing must not be impaired to the extent that it causes road safety risks. Please also make sure that you do not use headphones within the action area of potentially dangerous machines and tools.

Risk of injury!
Avoid strong movements when using wired headphones. You might seriously hurt yourself especially if you wear piercings, earrings, glasses, etc., where the wire can get caught.
