Beyerdynamic FREE BYRD - TRUE WIRELESS HEADPHONES Manual

ABOUT THIS MANUAL

This manual describes the product's most important functions.
The information in this manual refers to the default settings of the software. A newer version may be available.

For remarks on the software update, see "SOFTWARE-UPDATE".

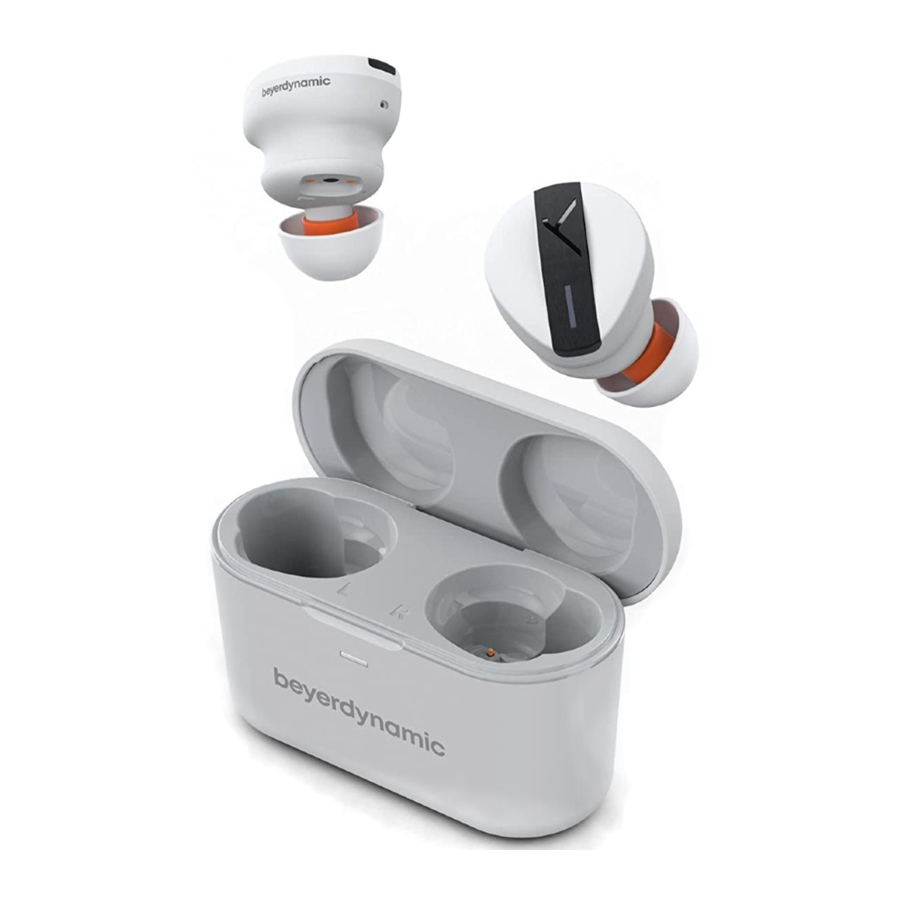

SCOPE OF DELIVERY

Charging case
Earphones L/R
USB-C to USB-A charging cable
5 silicone eartips
3 foam eartips
Quick Start Guide and booklet

FIRST STEPS

Removing from packaging and storing

Open the charging case and take out the earphones.
Carefully choose the eartips that are right for you and connect Free BYRD to your playback device.

Using and fitting the eartips

Five pairs of silicone eartips and three pairs of foam eartips are included in the supplied accessories for optimal fit and sound quality.
Every ear is unique, and the size of the eartip required may vary from one ear to another. Take your time and choose the right eartips for you to maximise your listening pleasure.

Silicone eartips
Colour	White	Light grey	Orange	Dark grey	Black
Size	XS	S	M	L	XL
Foam eartips
Colour		Orange	Orange	Orange
Size		S	M	L

Using silicone eartips

To use the eartips, carefully slip them over the Free BYRD.

Using foam eartips
If you move around a lot, choose the foam eartips.

Give them a short squeeze before inserting them into the ear.
They expand again after insertion and provide good support during any activity.

If you are using them regularly, we recommend changing the eartips every three months. Replacement eartips made of silicone and other materials can be ordered from the beyerdynamic spare parts shop: www.beyerdynamic.com/service/spare-parts

How to insert the earphones

For a perfect fit, insert the earphones into your ear with a slight twisting movement.
Make sure that the earphone fits properly.
See illustration.

Charging the battery

We recommend you use only the supplied USB cable to charge the battery.

Insert the earphones into the charging case.
Plug the USB cable into the charging socket on the charging case.
Alternatively, place the charging case on a QI® charging station.
The charging LEDs indicate the charging status.

Remarks on the life of Li-ion batteries

When fully charged, disconnect the USB cable from the charger and the product.
High temperatures, especially with a high charge level, can cause irreversible damage.
If the battery is not used or is stored for extended periods of time, it is recommended to charge it to approx. 50% and store it at no more than 20°C.
Switch off the battery-powered product after use.

Displaying the battery charge level
The charge level of the charging case is indicated by the LED.

LED	Status
Without charging unit connected:
Orange	Battery low
White	Battery sufficiently charged
With charging unit connected:
Orange	Battery charging
White	Battery fully charged (100%)

The charge level of the earphones is displayed when the charging case is opened:

LED	Status
Flashes and changes colour from red and yellow to green	Battery charging and indicating the current charging status
Lights up permanently green	Battery fully charged
Flashes rapidly red	Battery almost empty

BEYERDYNAMIC MIY APP

The MIY App from beyerdynamic can be downloaded from the App Store or Google Play.

SOFTWARE-UPDATE

Software updates are easily available via the MIY App.

COMPATIBILITY WITH PLAYBACK DEVICES

Free BYRD is compatible with Bluetooth® playback devices that support the following profiles:

A2DP (for audio transmission)
HFP/HSP (for phone operation and voice assistants)
AVRCP (for control signal transmission)

SUPPORTED AUDIO CODECS

Within the A2DP profile, Free BYRD supports the audio codecs SBC, AAC and aptX™ Adaptive. The highest audio quality is offered by aptX™ Adaptive.

Please note that only the codecs available in the playback device can be used for audio transmission.

The playback device and Free BYRD automatically agree on the best mutually available codec in the following order:

aptX™ Adaptive
aptX™
AAC
SBC

Most playback devices do not show which codec is actively in use.

OPERATION

Free BYRD can be operated via the integrated Touch Interface by slightly tapping the beyerdynamic Y.

Connecting to a device via Bluetooth®

Before the product can be used, it must be connected to a mobile phone or other

Bluetooth®-enabled device. The connection process may differ depending on the device.

Refer to the operating instructions of the device to which the product is to be connected.

To perform Pairing

While the earphones are in the charging case, tap the left or right Touch twice and hold the second time ( ) until the LEDs flash alternately orange and blue.
Select Free BYRD in the pairing list on your smartphone.

To perform Google Fast Pair®

While the earphones are in the charging case, tap Touch twice and hold the second time ( ) until the LEDs flash alternately orange and blue.
In pairing mode, bring the earphones close to a Fast-Pairenabled smartphone.
Tap on Connect in the smartphone.

To delete the pairing list

While the earphones are in the charging case, tap the left or right Touch twice and hold the second time ( , 6 s) until the LEDs flash yellow three times.
The list of already paired Bluetooth® devices (maximum 6) is deleted, and the in-ear headphones switch to the Bluetooth® pairing mode.

Playing media

To start / pause playback:

Tap once ( ) to start or stop sound reproduction.

To switch between noise cancelling (ANC) and transparency mode

Tap twice ( ) to switch between active noise cancellation (ANC) and transparency mode.

Noise cancellation and transparency mode can be deactivated in the MIY App.

Playing the previous / next track

Tap left three times ( ) to play the previous track.
Tap right three times ( ) to play the next track.

Switching on voice assistant

To switch on voice assistant:

Tap and hold once ( ) to activate the voice assistant.
To use the Alexa voice assistant, you must select it once in the MIY App.

Adjusting the volume

To increase / decrease the volume:

To increase the volume, tap twice right and hold the second time ( ).
To decrease the volume, tap twice left and hold the second time ( ).

Making a call

FUNCTION - NO CALL ACTIVE	OPERATION
Accept incoming call	tap once ()
Reject incoming call	tap and hold once ()
End active call	tap and hold once ()
FUNCTION - CALL ACTIVE	OPERATION
Accept incoming call and hold active call	tap once ()
Reject second incoming call	tap and hold once ()
Switch between two calls	tap once ()
End active call and switch to held call	tap and hold once ()

Resetting to factory settings

All personal data is deleted if the device is reset to the factory settings!

To reset to factory settings:

While the earphones are in the charging case, tap the left or right Touch twice and hold the second time ( , > 10 s) until the LEDs flash red three times.

Peer Pairing
To pair new earphones (e.g. when replacing defective or lost earphones), both sets of earphones must be reset to factory settings so that they can connect.
During peer pairing, the LEDs on the earphones flash rapidly blue.

Overview of operating functions

FUNCTION – EARPHONES IN EARS	OPERATION
To start / stop media playback	tap once ()
To switch between noise cancelling (ANC) and transparency mode	tap twice ()
Playing the previous track	Tap left three times ( )
Playing the next track	Tap right three times ()
To switch on voice assistant	tap and hold once ()
To accept an incoming call	tap once ()
To reject an incoming call / end an ongoing call	tap and hold once ()
To increase volume	tap twice right and hold the second time ()
To decrease volume	tap twice left and hold the second time ()
FUNCTION – BOTH EARPHONES IN THE CHARGING CASE	OPERATION
To switch to Pairing mode	tap twice and hold the second time (, 2 s)
To delete the pairing list	tap twice and hold the second time (, 6 s)
To reset to factory settings	tap twice and hold the second time (, > 10 s)

HELP WITH PROBLEMS / FAQ

Answers to the most common problems and questions can be found at the following internet address: https://www.beyerdynamic.com/free-byrd

TECHNICAL DATA

Bluetooth® frequency range: 2.402–2.480 GHz

Transmitting power:
7 dBm (Bluetooth®)
2 dBm (Bluetooth® LE)

Operating temperature range: -10 to +60°C

Charging temperature range: 0 to +45°C

More detailed information on the technical data can be found on the internet at: www.beyerdynamic.com.

SAFETY INSTRUCTIONS

Please read these instructions carefully and completely before using the product.
Please observe all instructions given, especially those concerning the safe use of the product.
Do not use the product if it is defective.
The company beyerdynamic GmbH & Co. KG accepts no liability for damage to the product or injury to persons caused by careless, improper or incorrect use of the product, or by use for purposes not specified by the manufacturer.

Intended use

Only use the product as described in this product manual. beyerdynamic accepts no liability for damage to the product or injury to persons caused by careless, improper or incorrect use of the product, or by use for purposes not specified by the manufacturer.

beyerdynamic is not liable for damage to USB devices that do not comply with the USB specifications.

beyerdynamic is not liable for damage resulting from connection interruptions due to batteries being empty or too old, or due to exceeding the Bluetooth® transmission range. Please also observe the relevant country-specific regulations before using the product.

Adjusting the volume

High volumes and long listening times can permanently damage your hearing. Because in-ear headphones sit directly in the ear canal, there is an increased risk of hearing damage.

Before inserting the earphones, set the volume to minimum. Only increase the volume after inserting the earphones.
Do not use the in-ear headphones at high volume for a long time. When listening and speaking normally with in-ear headphones, your own voice should still be perceptible.
In case of tinnitus, decrease the volume. If necessary, consult a doctor.
Please note that excessively high volumes and long listening times may cause hearing damage. Hearing impairments are irreversible, so always make sure that the volume is appropriate. It is advisable to keep listening times as short as possible at high volumes.

Reducing perception of ambient noise

In-ear headphones drastically reduce perception of ambient noise. Using in-ear headphones in road traffic can be potentially dangerous. The user's hearing must not be impaired to the extent that it causes road safety risks.

Do not use the in-ear headphones within the action area of potentially dangerous machines and tools.
Avoid using in-ear headphones in situations where hearing must not be impaired – particularly in road traffic, when crossing a level crossing or on a construction site.

Changed acoustic perception

For many people, wearing in-ear headphones takes some getting used to because the acoustic perception of their own voice and body as well as the inner ear sounds that occur while walking is different from the "normal" situation without in-ear headphones. However, this initially strange sensation usually diminishes after wearing them for a while.

Cleaning

Dirt on the eartips and the formation of a warm and humid climate in the ear canal can cause an increased level of germs, which can increase the risk of an ear canal infection.

Regularly clean the eartips.

General care instructions

Use a soft cloth moistened with water to clean all parts of the True-Wireless headphones. Make sure that no liquid enters the housing or the transducer.
Do not use cleaners containing solvents, as these can damage the surface.

Risk of swallowing

Keep small parts, such as product, packaging and accessories, away from children and pets. They constitute a choking hazard if swallowed.

Power and connecting cable

Use only the cable we supply to connect the unit for both charging and connecting to a laptop.

Using the batteries

Danger from heat, water and mechanical stress

Excessive heat, water and mechanical stress may cause explosion, heat, fire, smoke or fumes. Injuries and irreversible damage to the battery may result.

Do not expose the battery to excessive heat, direct sunlight or fire. There is a risk of explosion, fire, smoke or gas.
Do not subject the battery to mechanical stress (e.g. crushing). This may cause irreversible damage to the battery, or explosion or injury.
Do not open the housing or remove the battery.
Only use a USB 2.0/3.0 standard-compliant 5 V power supply unit to charge the battery via the integrated USB type C socket.

Storing the battery

If the battery is not going to be used for an extended period, set the charge level to approximately 50% of the maximum capacity and store it at temperatures up to max. 30°C.
