- Page 1 SALT WATER CHLORINE GENERATOR Model: SMC20TA & SMC30TA INSTRUCTION MANUAL...
- Page 2 DISCLAIMER • While every effort has been made to ensure that the information contained in this guide is accurate and complete, no liability can be accepted for any errors or omissions. • Australian Innovative Systems Pty Ltd reserves the right to change the specifications of the hardware and software described herein at any time without prior notice.

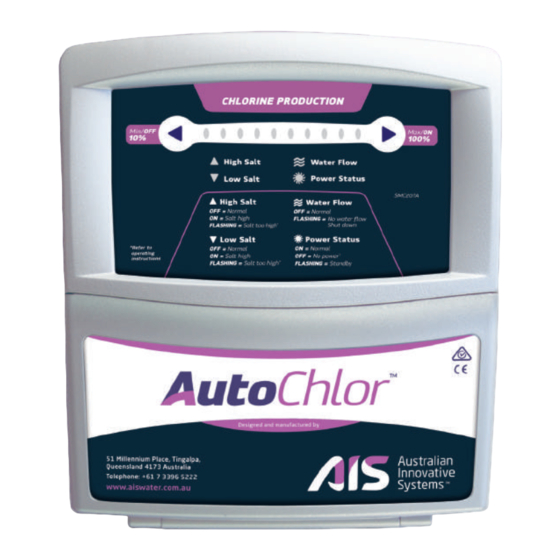

- Page 3 1. Min/Off 6. Water Flow Press to reduce the chlorine output. If light flashes and chlorine generator When no lights are lit, the chlorine beeps then no water is flowing through the electrode housing. generator is off. See Troubleshooting Guide, pages 16–17. 2.
- Page 4 CHLORINE GENERATOR INSTALLATION ELECTRODE HOUSING The electrode housing may be installed either horizontally or vertically in the pool return line. The water can flow through the housing in either direction. Plumbing may be either a 40mm or 50mm pipe. GAS TRAP Horizontal - the plumbing connection on the side of the electrode housing must face downwards.
- Page 5 INSTALLATION WITH POOL HEATER The power supply should be installed in a weatherproof, well ventilated area and mounted vertically within 1.5 metres of the electrode. Although the unit has an IP24 rating it can still be susceptible to wind driven rain. 1.
- Page 7 ADDING SALT TO A NEW POOL Calculate the pool’s water volume as follows: average length x average width x average depth in metres. Multiply this answer by 5. The answer is the amount of salt in kilograms you need to add to increase the salinity of your pool from fresh water to 5000 ppm (the recommended salt level for this chlorine generator).
- Page 8 INTRODUCTION TO THE TIME CLOCK The time clock is accessed by pulling down the bottom flap of the front cover. There are four buttons: “Clock”, “Timer”, “Man” and “Auto”. “Clock” and “Timer”: Used to enter and exit the timer settings. Once the timing program is set they are not used again unless you wish to alter the program times.
- Page 9 For your convenience the time clock has two factory programs ON periods. This program is recommended for the average pool. These are 8.00am to 12.00 midday and 4.00pm to 8.00pm. (Fig. 2) NB: Consult your electricity supplier to ensure your tariff rate provides electricity during these times.
- Page 10 ENTERING CORRECT TIME 1. Turn on the power to the chlorine generator. If the unit starts running, press the “Man” button to turn it off. 2. Press the “Clock” button and the word CLOCK will appear on the screen. (Remember this is a 24 hour clock). 3.
-
Page 11: Programming The Timer
PROGRAMMING THE TIMER All segments between the start and stop times need to be turned ON (darkened) as shown in the below picture. 1. Press the “Timer” button, the word TIMER will appear on the screen. There will be one dark segment flashing. 2. -
Page 12: Timer Operation
TIMER OPERATION AUTOMATIC OPERATION: Press the “Auto” button to put the chlorine generator into automatic timed operation. The word AUTO, the time of day and your set times will appear on the screen. The chlorine generator and the filter pump will turn on and off at the times you entered during programming. -
Page 13: Manual Operation
MANUAL OPERATION: Press the “Man” button to either turn the generator off (e.g. for maintenance) if it is running, or turn it on if the generator is not running. To return to the auto timer function the “Auto” button must be selected. Fig. -
Page 14: Maintenance
MAINTENANCE ELECTRODE INSPECTION: SMC series generators have a reverse polarity feature which reduces electrode cleaning to the minimum. Regular inspection of the electrode is recommended. ELECTRODE REMOVAL: Ensure the power to the chlorine generator is switched off. Step 1 Unplug the electrode lead from the electrode. -
Page 15: Electrode Cleaning
ELECTRODE CLEANING: Mix up a solution of 1 part hydrochloric acid to 8 parts water. Submerse the electrode in this solution, as shown in the picture below. CAUTION: • When working with acid the use of eye protection and rubber gloves is strongly recommended. -
Page 16: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM REASON SOLUTION 1. There is no mains power 1. Unplug the chlorine There are no lights on the chlorine generator and the generator from the 2. The time clock is on Auto pump is not running power and test power and in an OFF period outlet with another known working appliance... - Page 17 TROUBLESHOOTING GUIDE PROBLEM REASON SOLUTION The high salt light is on Water salinity is to high or Have salinity level tested by or flashing chlorine generator is faulty pool professional 1. Water salinity is too low 1. Have the salinity level The low salt light is on or flashing tested by pool professional...
-
Page 18: Technical Specifications
TECHNICAL SPECIFICATIONS Chlorine output SMC 20TA: 22 gms/hr (grams of chlorine gas equivalent/hour) SMC 30TA: 33 gms/hr (grams of chlorine gas equivalent/hour) Input voltage 190 – 250 volts. 50 – 60 Hz Input current 1.0 amps (excluding pump) Output voltage 15 –... -
Page 19: Warranty
WARRANTY Your AutoChlor chlorine generator is covered by a thirty six (36) month in-factory repair warranty, on all parts and labour, from the date of purchase. This warranty applies to the original purchaser and is not transferable. All chlorine generators are fully tested prior to being packed. If within 36 months of purchase a problem occurs due to faulty workmanship or components, AIS will (at their discretion) repair or replace the chlorine generator. - Page 20 AIS Contacts Head Office +61 7 3396 5222 or 1300 965 222 (Australia wide) Email: info@aiswater.com.au Facsimile +61 7 3393 3441 WARRANTY HOTLINE 1800 676 076 (Australia wide) Australian Innovative Systems 51 Millennium Place, Tingalpa, Queensland 4173 Australia www.aiswater.com.au...
