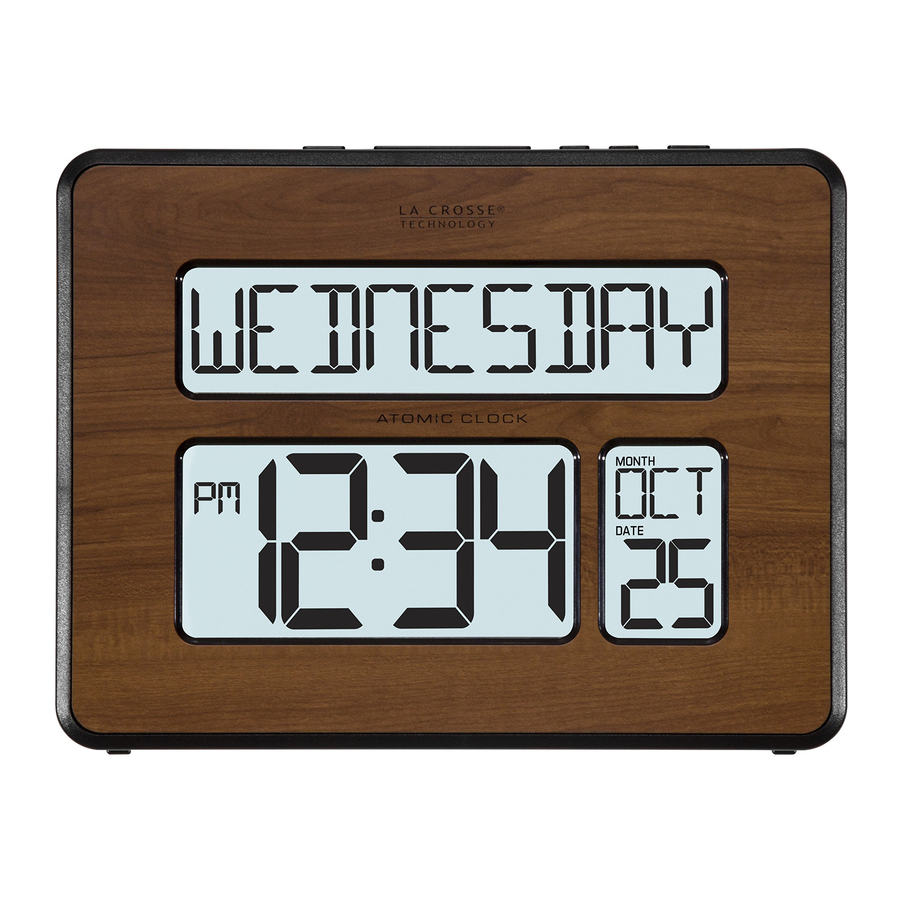

La Crosse Technology 513-1419-WA-INT - Atomic Large Full Digital Calendar Clock Manual

LCD Features

	Atomic Time Reception Icon		Snooze Icon Zz
	Low Battery Icon		Alarm Active Icon (bell)

Custom Display Modes

• Press and release the MODE button to customize how the top and right sections of the clock are displayed.
• The clock will stay in the mode selected.


Setup

1. Insert 2 "AA" batteries into the clock according to polarity markings.

2. Manually Set Time/Date

Note: The clock will search for atomic time 2 hours after batteries are installed.

Atomic Time Signal

• This clock while plugged in, may take up to 3 days to get the signal.
• The clock will automatically search at UTC 7:00, 8:00, 9:00, 10:00, and 11:00.
• If there is no WWVB reception, the clock will search for the atomic time signal every 2 hours until the WWVB time is received.
• After reception, this clock will only search for the atomic signal after midnight.
• To perform a manual search for the atomic time signal, hold the MINUS button for 3 seconds. The atomic time icon will flash.

• For information about WWVB atomic time signal visit: www.nist.gov/pml/div688/grp40/wwvb.cfm

Settings

Language, Time, Date, etc.

• Hold the MODE button to enter time set mode.
• Press the + or - buttons to adjust the values.
• Press the MODE button to confirm adjustments and move to the next item.
• Press the SNOOZE button at any time to exit.

Setting mode order:

1. Language (English or Spanish)
   Hold the MODE button for 3 seconds to enter settings mode. ENGLISH will show. Use the +/- button if you wish to select ESPAÑOL (Spanish).

2. Beep ON/OFF
   Press the MODE button to move to BEEP ON/OFF.
   Use the +/- button to turn off the beep sound.

3. Atomic ON/OFF
   Press the MODE button to select atomic time signal ON/OFF.
   Use the +/- button if you do not want atomic time reception.


Note: If you choose OFF for atomic time, the clock will skip time zone and DST setting and jump to 12/24 hour time.

4. Time Zone
   Press the MODE button to select your time zone.
   Use the +/- button to adjust.

5. DST ON/OFF
   Press the MODE button to select daylight saving time ON/OFF.
   If you do not observe DST, use the +/- button to turn off the Daylight Saving Time Indicator.

6. 12/24 Hour
   Press the MODE button to select 12 hour or 24 hour time format.
   Use the +/- button to adjust.

7. Hour
   Press the MODE button to set the Hour.
   Press the +/- button to adjust.

8. Minutes
   Press the MODE button to set the Minutes.
   Press the +/- button to adjust. Hold to adjust quickly.

9. Year
   Press the MODE button to set the Year.
   Press the +/- button to adjust.

10. Month
    Press the MODE button to set then set the Month.
    Press the +/- button to adjust. Hold to adjust quickly.

11. Date
    Press the MODE button to set the Date.
    Press the +/- button to adjust. Hold to adjust quickly.

12. Fahrenheit/Celsius
    Press the MODE button to select Fahrenheit or Celsius temperature display. Press the +/- button to adjust.

13. Press the MODE button to confirm and exit.

Note: Press the SNOOZE button at any time to exit settings.

Set Time Alarm

1. Hold the ALARM button to enter alarm settings. "AL" will show.

2. The Alarm Hour will flash. Press the +/- button to adjust.
3. Press the ALARM button to set the Minutes.

4. The Alarm Minutes will flash. Press the +/- button to adjust. Hold to adjust quickly.
5. Press the ALARM button to confirm and exit.

Activate/Deactivate Alarm

1. Hold the ALARM button to enter alarm settings. "AL" will show.
2. Press and release ALARM to activate/deactivate the alarm.
3. The bell icon will show when active.

Snooze

1. When alarm sounds press the SNOOZE button to silence the alarm for 10 minutes.
2. The alarm bell icon will show and Zz will flash.
3. Press any button except SNOOZE to stop the alarm for 1 day.

Note: Alarm is crescendo sound. When the alarm sounds, it continues for 2 minutes and then shuts off completely.

Low Battery Icon

• The low battery icon will appear between the hour and minutes.
• This icon indicates it is time to replace the batteries.

Visit Us on Social Media

Latest video content http://bit.ly/LaxTech_YouTube

For personalized interaction http://bit.ly/LaxTech_Facebook

Join the conversation http://bit.ly/LaxTech__Twitter

Pin and share
http://bit.ly/LaxTech_Pinterest

Care and Maintenance

• Do not mix old and new batteries.
• Do not mix Alkaline, Standard, Lithium or Rechargeable Batteries
• Always purchase the correct size and grade of battery suitable for intended use.
• Replace all batteries of a set at the same time.
• Clean the battery contacts and also those of the device prior to battery installation.
• Ensure the batteries are installed with correct polarity (+ and -).
• Remove batteries from equipment which is not to be used for an extended period
• Remove expired batteries promptly.

Warranty and Support

Before returning a product, please contact our friendly customer support with questions or visit our online help:
Phone: 1-608-782-1610

Online Product Support and Registration: www.lacrossetechnology.com/support

Specifications

For online video support: http://bit.ly/LaxTechTalk

www.lacrossetechnology.com/support
